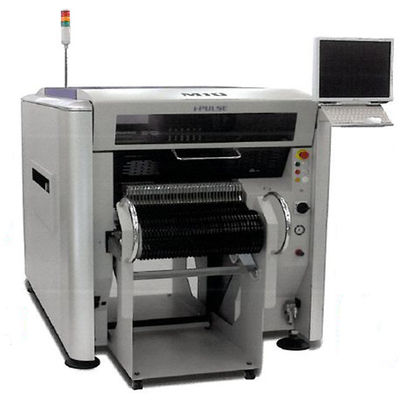

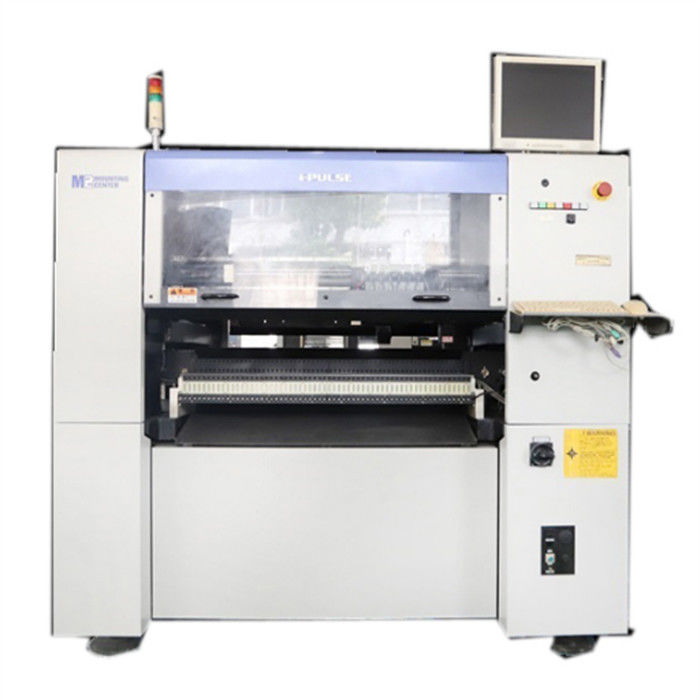

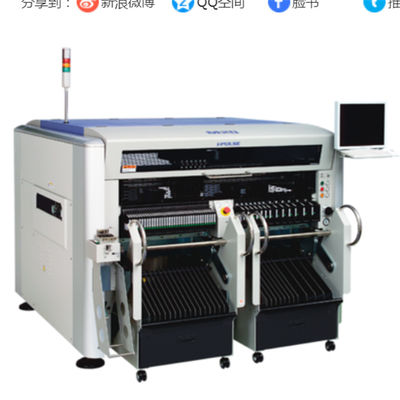

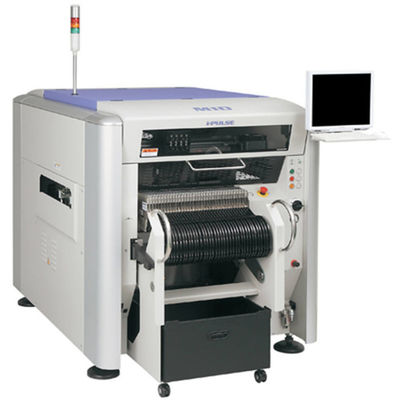

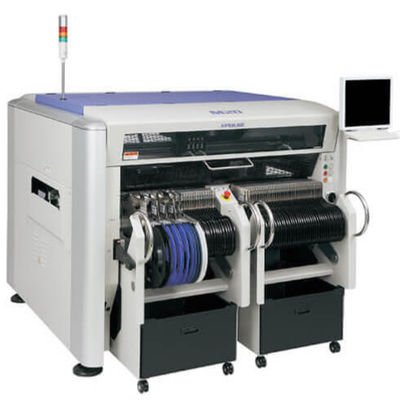

| I-Pulse- M2 Plus Specification |
| Board size |
L50xW50mm – L460 xW410mm |
| Board thickness |
0.5mm-2.0mm |
| Flow direction |
Left to right |
| Conveyor speed |
Max. 420mm/sec, speed variable, soft stop fuction |
| Placement speed A (NB1) |
0.13 sec/CHIP, 0.38 sec/TSOP32 |
| Placement speed B (NB2) |
0.54 sec/QFP100 (when using the optional fixed camera FCO5) |
| Placement accuracy A (u+3o) |
CHIP +0.05mm |
| Placement accuracy B (u+30c) |
QFP +0.03mm (when using the optional fixed camera FCO3) |
| Placement angle |
+180’, resolution 0.015 |
| Z-axis control |
6-head independent servo motors, resolution 0.006mm |
| Component height |
15mm (Preplaced components max. 10.5mm) |
| Components applicable |
0603 (option) – SOP, PLCC, QFP, BGA, CSP, connector, and odd-form components |
| Component carriers |
8-56mm tape, stick, tray |
| Drawback check |
Vacuum check and vision check |
| Multi language display |
Japanese, Chinese, Korean, and English |
| Board locating method |
Board edge or tooling hole (option), front reference |
| Component types |
120 types (8mm tape conversion) |
| Board transfer height |
900+20mm |
| Dimensions, weight |
L1,750XD1,530XH1, 510mm, approx. 1,950Kg |
| Power, consumption, capacity |
3phase 200V (Option: 208, 220, 240, 380, 400, 415, 440V) +10% 50/60Hz, 4.0KVA, 6.0KVA |
| Air and consumption |
0.5MPa, 692/min A.N.R. |
