    Product Details:

    Place of Origin: USA
    Brand Name: Temperature Record Analysis
    Certification: CE
    Model Number: KIC star Kic Thermal Vforce Profiler

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Temperature Record Analysis 2000-5000usd
    Packaging Details: Temperature Record Analysis packing with wooden case
    Delivery Time: Temperature Record Analysis within 15 days after payment
    Payment Terms: TT,western union,paypal and so on
    Supply Ability: 300 sets per month Oven Temperature Tester
    Usage: Industrial, reflow oven temeperature profile test
    Theory: Temperature Recorder and Analytical instruments
    Contact Now
    Detailed Product Description
    Brand Name:: SMT Thermal Profiler Usage:: Industrial, Reflow Oven Temeperature Profile Test
    Theory:: Temperature Recorder Accuracy:: ±0.5℃(Full Scale), ±0.5℃(Full Scale)
    Temperature Range:: -150℃~1050℃ Resolution:: Variable 0.3C To 0.1C
    Internal Operating Temp:: 0C To 105C Sample Rate:: 0.1 To 10 Per Second
    Brand:: Temperature Record Analysis Skype: Sensenhenhao
    Whastapp/wechat: +8613424013606 Website: Www.wickonsmt.com
    Email: Joy@wickon.net

    KIC START KIC Thermal Profiler Test , Furnace / Oven Temperature Profiler



    KIC Start Profiler  Specifications

    1.6 channels
    2.accuracy +/-1.2degree
    3.temperature range -150 to 1050 degree
    4.resolution variable 0.3C to 0.1C
    5.KICstart

    The KICstart Thermal Profiler



    The KICstart is a 6 channel datalogging thermal profiler. It features a more robust hardwareconfiguration than any other profiler on the market and an all new easy to use software platform. When theKICstart profiler has completed its run through the process, the internally logged profile is ready to bedownloaded to a computer.

    The KICstart software features minimal initial setup and a radically simplified operator interfacethat eliminates tedious board mapping and oven measuring. The software is designed to be completelyintuitive and requires very little training. A series of screens with clear explanatory graphics guides youthrough the profiling process from beginning to end.



    The KICstart uses different technology to complete its task of running profiles. The main differencebetween it and other profilers is the following:



    ♦ Air thermocouple – For all profiles run with the KICstart software the thermocouple pluggedinto the first channel on the KICstart must be the Air TC. This TC is positioned 1 inch in front ofthe leading edge of the board for all profiles run using KICstart software.



    ♦ Trigger temperatures – The KICstart uses trigger temperatures to start and stop the profile. TheStart temperature is defaulted to 2 degrees above the Maximum Product Start temperature. SeeGlobal Preferences for this value.



    ♦ Hardware Monitor - The combination of the KICstart and the KICstart software closely monitorsthe KICstartbattery, internal temperature and the product temperature even before you start aprofile. There are built-in checks in the software to insure that the product and KICstart are coolenough and battery voltage sufficient to complete a profile safely. As well it will offertroubleshooting suggestions if there is a problem with communication or thermocoupleattachment.



    ♦ Perfect Data – Through patent pending technology the KICstart is able to get you perfect dataevery time. At the completion of a profile the KICstart retransmits the data it has stored in itsmemory, once the communication cable is connected.



    Specification



    Accuracy

    +/- 2ºF (1.2ºC)

    Resolution

    Variable 0.3 to 0.1ºC

    Internal Operating Temp

    0ºC to 105ºC

    Thermocouple Compatibility

    Type K, 6TCs

    Temperature Range

    -150ºC to 1050ºC

    Computer Compatibility

    PC

    Power Requirements

    9V Alkaline battery

    Dimension

    Varies depending upon model and shield









    Process Window Index





    The PWI is a single statistical number that measures how well your profile fits within your product`s thermal process window. The PWI provides an instant and objective conclusion whether your product profile is in spec, eliminating guesswork and opinion from process analysis. This helps you ensure that all your products on all your lines are manufactured with measurable, consistent quality





    Mininum PC Requirements



    400 MHz processor Celeron / 128Mb RAM

    1 Gb available storage (for Product history records)

    SVGA video 1024 x 768 resolution, 16-bit color

    1 available serial port or USB port

    1 available parrallel port or USB port

    Operating system: Microsoft® Windows® 2000, XP



    1 When the KICstart software is running on the same computer as the oven controller, and/or when additionalKICstart options are installed, a faster CPU and more RAM may be required.

    A USB to Serial adapter is used to connect the KICstart for profiling.

    3 Contact KIC for issues with operating systems other than those listed.

    Wickon hightesh offers temperature profiling systems in six major areas:



    Oven Tracker  Systems for the finishing, paint and powder coating industries



    Furnace Tracker  Systems for heat treatment processes and furnace surveys



    Kiln Tracker  Systems for tunnel & roller hearth kilns used in the process of firing ceramic products



    Reflow Tracker  Systems for PCB and electronics board manufacturing



    Solar Tracker  Systems for solar photovoltaic (PV) manufacturing



    Food Tracke  Systems for food processing

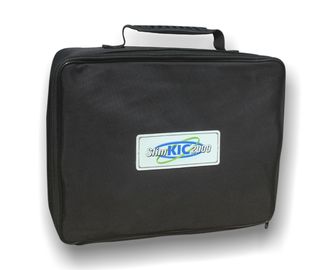

    Thermal profiler  KIC  star   Picture Show

    KIC START KIC Thermal Profiler Test , Furnace / Oven Temperature ProfilerKIC START KIC Thermal Profiler Test , Furnace / Oven Temperature ProfilerKIC START KIC Thermal Profiler Test , Furnace / Oven Temperature ProfilerKIC START KIC Thermal Profiler Test , Furnace / Oven Temperature ProfilerKIC START KIC Thermal Profiler Test , Furnace / Oven Temperature ProfilerKIC START KIC Thermal Profiler Test , Furnace / Oven Temperature ProfilerKIC START KIC Thermal Profiler Test , Furnace / Oven Temperature ProfilerKIC START KIC Thermal Profiler Test , Furnace / Oven Temperature ProfilerKIC START KIC Thermal Profiler Test , Furnace / Oven Temperature Profiler



    Wickon hightesh offers temperature profiling systems in six major areas:



    Oven Tracker  Systems for the finishing, paint and powder coating industries



    Furnace Tracker  Systems for heat treatment processes and furnace surveys



    Kiln Tracker  Systems for tunnel & roller hearth kilns used in the process of firing ceramic products



    Reflow Tracker  Systems for PCB and electronics board manufacturing



    Solar Tracker  Systems for solar photovoltaic (PV) manufacturing



    Food Tracke  Systems for food processing
