    Product Details:

    Place of Origin: CHINA
    Brand Name: YAMAHA SMT MOUNTER Ys100 Yamaha YS100 LED automatic Pick and Place Machine chip and IC shooting
    Certification: CE
    Model Number: YAMAHA SMT MOUNTER Ys100 Yamaha YS100 LED automatic Pick and Place Machine chip and IC shooting

    Payment & Shipping Terms:

    Minimum Order Quantity: smt pick and place machine 1 set
    Price: 30000-50000usd/set
    Packaging Details: packing with wooden case
    Delivery Time: within 15 days after payment
    Payment Terms: TT,western union,paypal and so on
    Supply Ability: 300 sets per month
    Usage: smt electronice factory
    Theory: smt pick and place machine
    Contact Now
    Detailed Product Description
    Brand Name:: YAMAHA SMT MOUNTER Ys100 Yamaha YS100 LED Automatic Pick And Place Machine Chip And IC Shooting Skype: Sensenhenhao
    Whastapp/wechat: +8613424013606 Website: Www.wickonsmt.com
    Application: SMT Assembly Production Line Power Supply: AC220V 50Hz / AC110V
    Film Materials: Privacy Material Usage: SMD LED SMT
    Applicable Components::: 0402~5050

    YAMAHA SMT MOUNTER Ys100 Yamaha YS100 LED automatic Pick and Place Machine chip and IC shooting



    WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

    Also can support some original parts of machine repair.



    YAMAHA SMT MOUNTER Ys100 Specification

    Thanks to a high precision single placement beam that carries eight independent Z-servo controlled heads, the YS100 provides a perfect balance between chip and IC shooting. It is available in two versions: one with a Flying Nozzle Change (FNC) head for when many nozzle changes are needed and high output is important, the other with a Super Fine (SF) head for use with a wider component range including QFPs, connectors and tall components.

    With placement rates up to 19.6k components per hour, the YS100 is fast. Placement accuracy is 30 microns for ICs. It handles a wide range of components from 0.4x0.2 mm (01005) to large connectors (100x45 mm), fine-pitch and components up to 15 mm tall. The YS100 holds up to 126 tape feeding positions.
    Main benefits
    The standard YS100 comes with software and hardware features to improve product quality, increase production efficiency, shorten NPI and changeover times and reduces maintenance, including:
    Intelligent electrical feeders
    Z-Servo controlled placement heads for accurate stress-free component mounting
    Automatic board width and thickness adjustment for fast changeover
    Automatic nozzle cleaning station
    Automatic temperature feedback to compensate for temperature variations
    Fiducial recovery function that eliminates the need to remove and clean the PCB
    Feeder indicators that facilitate easy setup and reduce feeder setup
    Double board support system for reducing board transfer time
    Tape cutters

    High-speed mounting capacity handling
    25,000CPH(0.14sec/CHIP Equivalent : optimum condition)
    +/-50μm(CHIP),
    +/-30μm(QFP)mounting
    absolute accuracy in full time operation
    Handles a wide range of components from 0402 chips to W45xL100mm or less components and with long connectors
    Capable of handling 15mm height components
    Applicable to large size PCB(L510mm x W460mm)
    Built-in tape cutter available as an option
    Conformity with both Machinery directive and EMC directive



    We have full range of SMT pick and place machine For FUJI,JUKI,SAMSUNG,YAMAHA,PANASONIC and so on,feeder,nozzle,smt pick and place machine,PCB Conveyor,
    cylinder,and vibration feeder,anything you need ,just tell me!

    The main brand is Fuji YAMAHA Samsung Panasonic SONY heavy machine
    1. SMT lubricating oil
    2. SMT parts
    3. Nozzle and feeder
    4. SMT belt and other parts in the machine

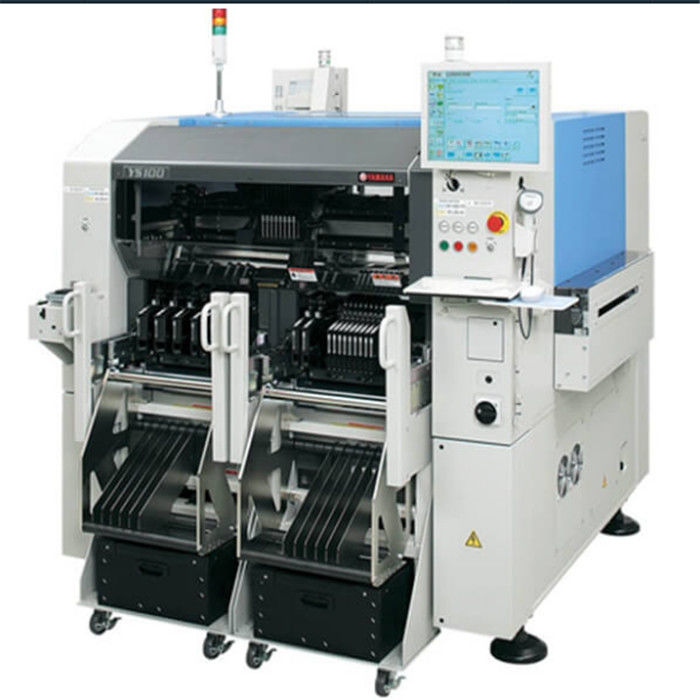

    YAMAHA SMT MOUNTER Ys100 picture show:

    YAMAHA SMT MOUNTER Ys100  Yamaha YS100 LED automatic Pick and Place Machine chip and IC shootingYAMAHA SMT MOUNTER Ys100  Yamaha YS100 LED automatic Pick and Place Machine chip and IC shootingYAMAHA SMT MOUNTER Ys100  Yamaha YS100 LED automatic Pick and Place Machine chip and IC shooting
