    Product Details:

    Place of Origin: CHINA
    Brand Name: Smt machine line YV100II Pick And Place Machine Yamaha LED Mounting Machine
    Certification: CE
    Model Number: Smt machine line YV100II Pick And Place Machine Yamaha LED Mounting Machine

    Payment & Shipping Terms:

    Minimum Order Quantity: smt pick and place machine 1 set
    Price: 30000-50000usd/set
    Packaging Details: packing with wooden case
    Delivery Time: within 15 days after payment
    Payment Terms: TT,western union,paypal and so on
    Supply Ability: 300 sets per month
    Usage: smt electronice factory
    Theory: smt pick and place machine
    Contact Now
    Detailed Product Description
    Brand Name:: Smt Machine Line YV100II Pick And Place Machine Yamaha LED Mounting Machine Skype: Sensenhenhao
    Whastapp/wechat: +8613424013606 Website: Www.wickonsmt.com
    Application: SMT Assembly Production Line Power Supply: AC220V 50Hz / AC110V
    Film Materials: Privacy Material Usage: SMD LED SMT
    Applicable Components::: 0402~5050

    Smt machine line YV100II Pick And Place Machine Yamaha LED Mounting Machine



    WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

    Also can support some original parts of machine repair.



    YV100II Pick And Place Machine Specification

    1. Based on the reliability of the basic structure of the high-speed machine
    2. Protection components of the mount
    3.0.25 seconds / CHIP high-speed mounting
    4 can be mounted 0.5 feet spacing 32mm QFP
    5. High-speed image processing
    6.2 cameras reduce production time
    7. Newly designed high rigidity frame
    8. Increase the speed of the shaft
    9. Can handle a variety of components
    10. The most suitable for computer SIMM production with 8 wired head
    Substrate size: L600 * W400 (Max) / L50 * W50 (Min)
    Substrate thickness 0.4-3.0
    Substrate conveying direction right - left
    Mounting accuracy ± 0.1mm / CHIP ± 0.08 / QFP
    Mounting Speed 0.25 sec / CHIP 1.7 sec / QFP
    Original Type Ribbon original: 100 (MAX, 8MM with conversion)
    Tray Original: 80 kinds (TMAX, YTF use)
    The original form of supply 8-56mm broadband, rod, bulk, tray
    Placement Original 1005 ~ QFP'SQP'SOJ'PLCC (25mm) BGA (0.4p)
    Power three-phase AC220 / 208/230/240/380/400 / 416V ± 10%, 50 / 60HZ
    Power 4KVA
    Pressure above 0.55MPA, 350MIN
    Dimensions L1650 * W1350 * H1810
    Weight 1300KG
    Patch speed 12000 (grain / hour)
    Weight 1300 (kg)

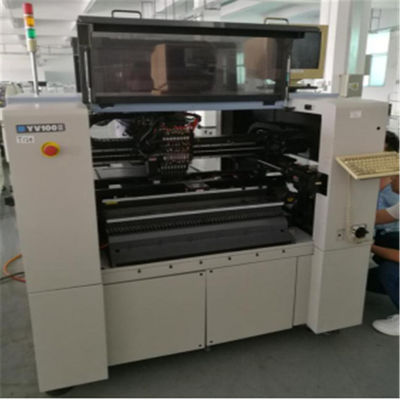

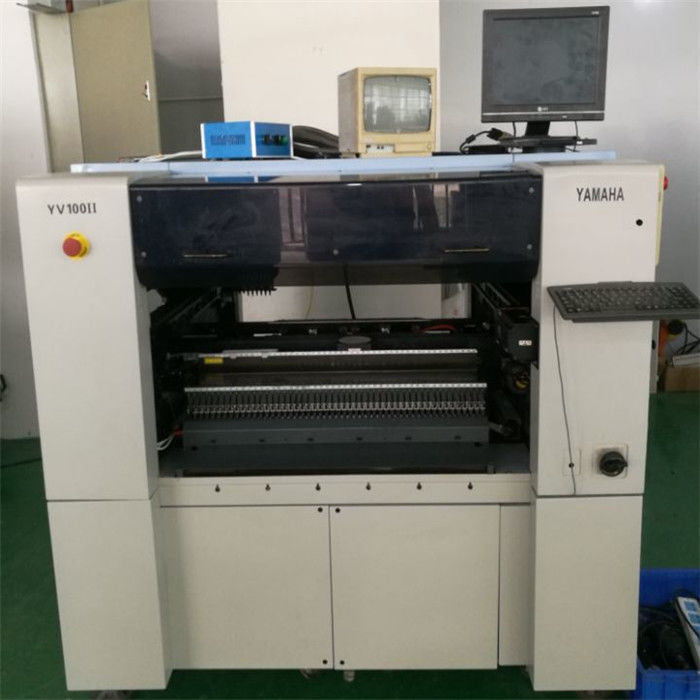

    YV100II Pick And Place Machine picture show:

    Smt machine line YV100II Pick And Place Machine Yamaha LED Mounting Machine

    Smt machine line YV100II Pick And Place Machine Yamaha LED Mounting MachineSmt machine line YV100II Pick And Place Machine Yamaha LED Mounting MachineSmt machine line YV100II Pick And Place Machine Yamaha LED Mounting MachineSmt machine line YV100II Pick And Place Machine Yamaha LED Mounting MachineSmt machine line YV100II Pick And Place Machine Yamaha LED Mounting MachineSmt machine line YV100II Pick And Place Machine Yamaha LED Mounting Machine
