LED Production line SMD Chip Mounter Machine YSM20 Yamaha pick and place machine SMT machine line
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
SMD Chip Mounter Machine Specification:
1. Applicability to odd-shaped parts is reinforced.
2. Equipped with a head with one gantry and six spindles
3. Placement accuracy correction system(head offset,C/V offset etc.)
4. "Applicable to Max.740(L)x460(W)(Option)PCBs for long boards applied to LEDS and displays."
5. "It has improved actual producticity and placement quality by applying high speed and high precision electrically driven feeders."
6. Placement Rate:30,000CPH(Optimum)
7. Board Dimension(mm)):50(L)*40(W)~460(L)*400(W)
8. Option: 50(L)*40(W)~760(L)*460(W)
9. PCB Thickness:0.38mm~4.2mm
10. External Dimension(mm): 1650(L)*1680(D)*1530(H)
11. PCB Standard Transport Direction :Left-to-Right/Right-to-Left(Option)
|
Specifications
|
YAMAHA Pick and Place Machine
|
|
Applicable PCB
|
L 510 x W 460mm - L 50 x W 50mm* Option: Up to L610 mm available
|
|
Mounting capability
|
46,000CPH (The Company's optimum conditions)
|
|
Applicable components
|
03015-W 55 x L 100mm (divided recognition for over W 45mm), H: 15mm or less
|
|
Mounting accuracy
|
±0.035 mm (±0.025 mm) Cpk more than 1.0 (3σ)
|
|
Number of component types
|
Setting Plate : Max 96 types (8mm)Tray : 15 types (sATS 15 equipment)
|
|
Power supply
|
3-phase AC 200/208/220/240/380/400/416 V ±10% 50/60 Hz
|
|
Air supply source
|
0.45MPa or more, clean and dry state
|
|
External dimension
|
L 1,254 x W 1,440 x H 1,445mm (excluding protrusions)
|
|
Weight
|
1,270kg
|

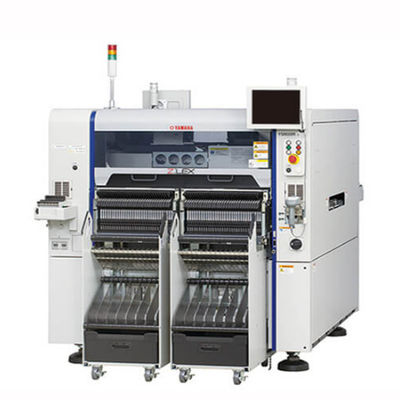

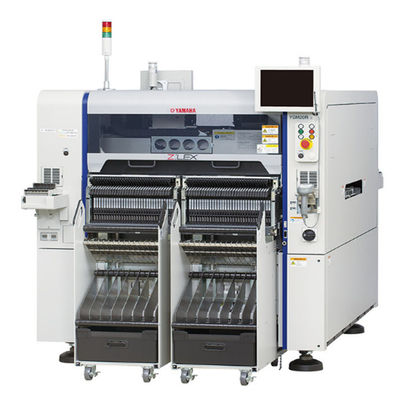

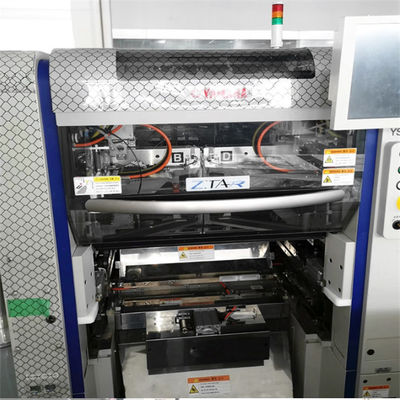

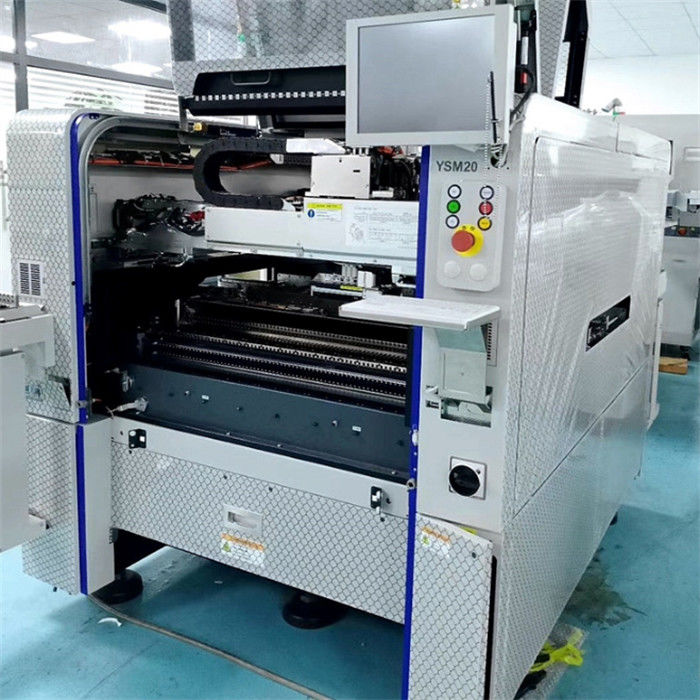

SMD Chip Mounter Machine picture show
