Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine

Place of Origin:	CHINA
Brand Name:	Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine
Certification:	CE
Model Number:	Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine

Minimum Order Quantity:	smt pick and place machine 1 set
Price:	30000-50000usd/set
Packaging Details:	packing with wooden case
Delivery Time:	within 15 days after payment
Payment Terms:	TT,western union,paypal and so on
Supply Ability:	300 sets per month
Usage:	smt electronice factory
Theory:	smt pick and place machine

Contact Now

Detailed Product Description

Brand Name::	Yamaha Chip Mounter YSM40R SMT PCBA Assembly Pick And Place Machine	Skype:	Sensenhenhao
Whastapp/wechat:	+8613424013606	Website:	Www.wickonsmt.com
Application:	SMT Assembly Production Line	Power Supply:	AC220V 50Hz / AC110V
Film Materials:	Privacy Material	Usage:	SMD LED SMT
Applicable Components:::	0402~5050

Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

Specification of chip mounter YSM40R

Z:TA-R YSM40R
4-Beam, 4-Head Spec. (YSM40R-4)
Applicable PCB		L700×W460mm to L50×W50mm
Mounting capability (under optimum conditions as defined by Yamaha Motor)		200,000CPH (When using RS head)
Applicable components	Ultra-High-Speed (RS) Head	0201mm* to 6.5mm (Height 2.0mm or less) *option
	Multi (MU) Head	03015mm to 45×60mm (Height 15mm or less)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)		+/-35μm (25μm) Cpk 1.0 (3σ)
Number of component types * 8mm width tape conversion		Max. 80 feeders with RS heads Max. 88 feeders with MU heads Max. 84 feeders with RS x 2 + MU x 2 heads
Power supply		3-Phase AC 200/208/220/240/380/400/416V +/-10%
Air supply source		0.45MPa or more, in clean, dry state
External dimension		L1,000×W2,100×H1,550mm (excluding projections)
Weight		Approx. 2,100 kg

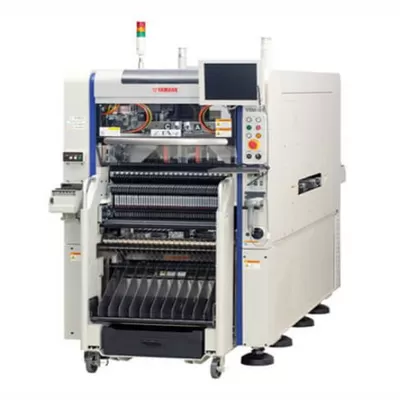

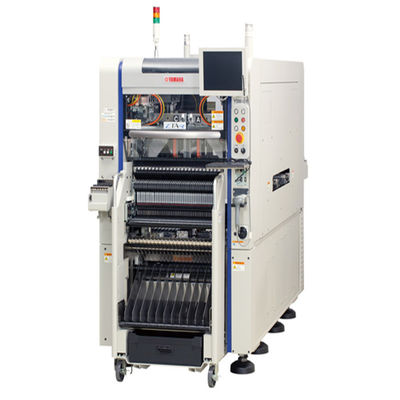

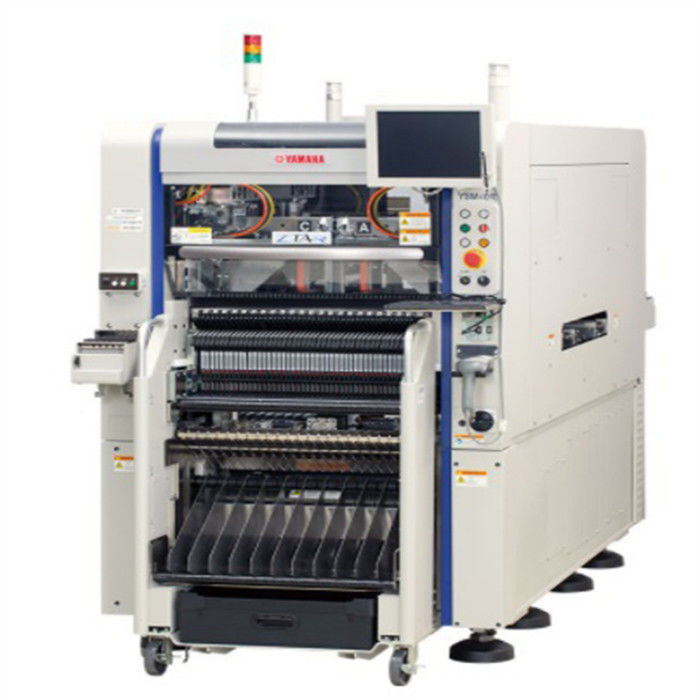

chip mounter YSM40R picture show

Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine
