Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine

Place of Origin:	CHINA
Brand Name:	Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine
Certification:	CE
Model Number:	Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine

Minimum Order Quantity:	smt pick and place machine 1 set
Price:	30000-50000usd/set
Packaging Details:	packing with wooden case
Delivery Time:	within 15 days after payment
Payment Terms:	TT,western union,paypal and so on
Supply Ability:	300 sets per month
Usage:	smt electronice factory
Theory:	smt pick and place machine

Contact Now

Detailed Product Description

Brand Name::	Yamaha YSM20R PCB Chip Mounter Machine PCBA Smt Pick And Place Machine	Skype:	Sensenhenhao
Whastapp/wechat:	+8613424013606	Website:	Www.wickonsmt.com
Application:	SMT Assembly Production Line	Power Supply:	AC220V 50Hz / AC110V
Film Materials:	Privacy Material	Usage:	SMD LED SMT
Applicable Components:::	0402~5050

Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

Specification of PCB chip mounter machine

Model		YSM20R
Applicable PCB		Single lane L810 x W490 to L50 x W50 Dual stage Note: For X-axis 2-beam option only 1PCB conveyance: L810 x W490 to L50 x W50 2PCB conveyance: L380 x W490 to L50 x W50
Head / Applicable components		High-Speed Multi (HM) Head * 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less
Mounting capability (under optimum conditions as defined by Yamaha Motor)		X axis 2-beam: High-speed multi-purpose (HM: High-speed Multi) head x 2 95,000CPH
Mounting accuracy		±0.035mm (±0.025mm) Cpk more than 1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component Types		Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply		3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source		0.45MPa or more, in clean, dry state
External dimension (excluding projections)		L 1,374 x W 1,857 x H1,445mm (Main unit only)
Weight		pprox. 2,050kg (Main unit only)

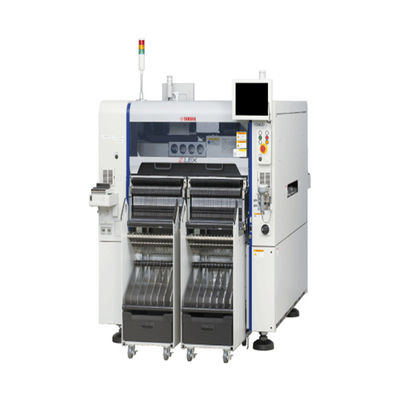

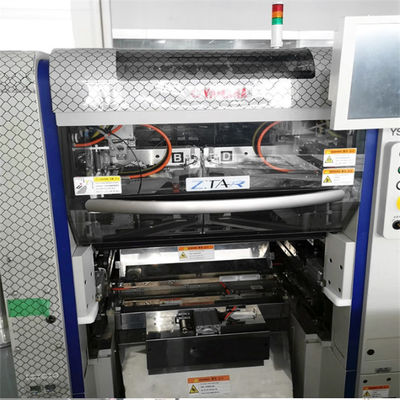

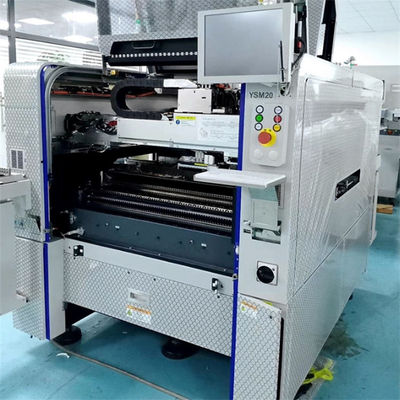

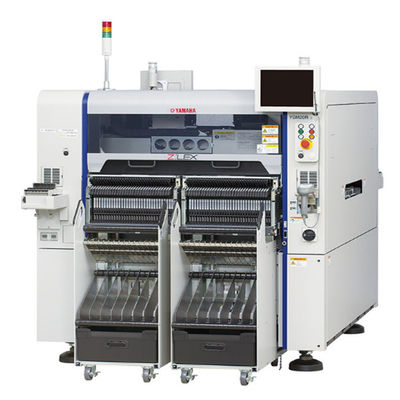

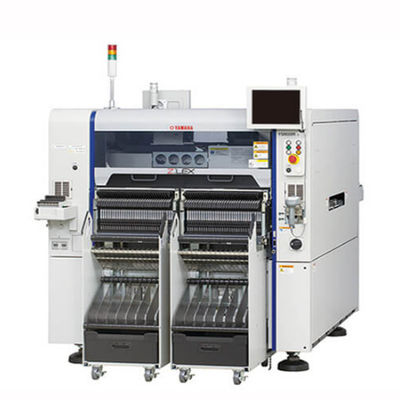

PCB chip mounter machine picture show

Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine
