smd machine Auto Chip Mounter Yamaha Ys12 pcb manufacturing machine SMT LED Pick and Place Machine YS12 online

Product Details:

Place of Origin:	Japan
Brand Name:	SMT LED Pick and Place Machine
Model Number:	Chip Mounter Yamaha Ys12

Payment & Shipping Terms:

Price:	$30,000.00 - $500,000.00/Pieces
Packaging Details:	smd machine
Supply Ability:	1000000 Piece/Pieces per Month smd machine

Contact Now

Detailed Product Description

Condition:	Used	Weight (KG):	1000
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Product 2019
Warranty Of Core Components:	1 Year	Core Components:	PLC
Warranty:	1 Year	Product Name:	Smd Machine
Skype:	Sensenhenhao	Whatsapp/wechat:	+8613424013606
Model Number::	Yamaha Ys12	Applicable Components::	0402~5050
Usage::	SMD LED SMT	Application::	SMT Assembly Production Line
Film Materials::	Privacy Material	Power Supply::	AC220V 50Hz / AC110V
Lead Time:	7-30days	Port:	Shenzhen

smd machine Auto Chip Mounter Yamaha Ys12 pcb manufacturing machine SMT LED Pick and Place Machine YS12 online

whatsapp:+8613424013606,skype is sensenhenhao

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

smd machine Features:

· This compact platform design (front view breadth 1,254mm) assure flexible line arrangement in your site

· Both new designed 10 inline multi-heads and new recognition system ensure 36,000CPH(0.1sec/CHIP Equivalent : optimum condition)

· Maximum feeder capacity 120 lanes

· Applicable to large size PCB(L510mm x W460mm)

· Built-in tape cutter available as an option

smd machine Specification

No	Item	Data
1	Model NO.	YS12(NO:KHY-000)
2	Object substrate	L50×W50mm ~L510×W460mm
3	Mounting efficiency	(Optimal conditions)36,000 CPH (0.1 sec / CHIP equivalent)
4	Absolute accuracy	(μ+3σ):±0.05mm/CHIP
5	Mounting accuracy	Standard components of our company
6	Object Element	(0402 mm series name) ~32mm Note 1 Corresponding from January 2010
7	Type of component	120 Max. Converted to 8 mm tape
8	Power Specification	Three phase AC 200/208/220/240/380/400/416 V ±10%50/60 Hz
9	Air Supply source	Above 0.45 PA, clean and dry
10	Contour dimension	L1,254×W1,440×H1,450mm(Above the cover plate)
11	Weight	1,340kg

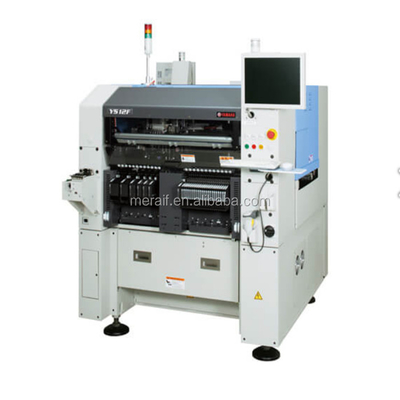

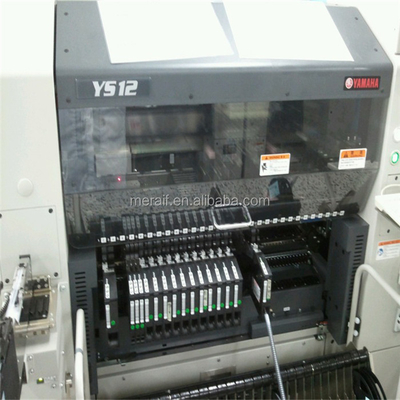

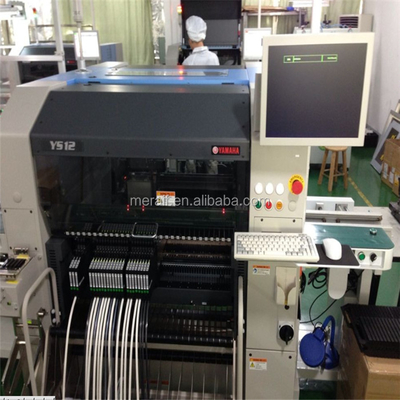

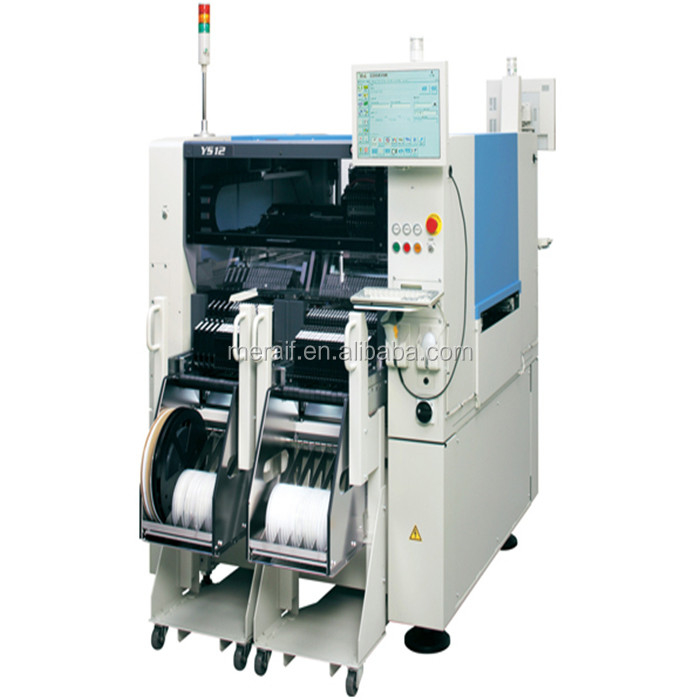

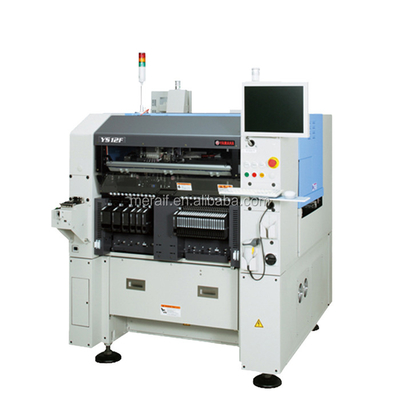

smd machine picture show:

smd machine Auto Chip Mounter Yamaha Ys12 pcb manufacturing machine SMT LED Pick and Place Machine YS12 online
