    Product Details:

    Place of Origin: Japan
    Brand Name: SMD Chip Mounter Machine
    Model Number: YSM20 Yamaha pick and place machine

    Payment & Shipping Terms:

    Price: $25,000.00 - $350,000.00/Pieces
    Packaging Details: SMD Chip Mounter Machine
    Supply Ability: 1000000 Piece/Pieces per Month SMD Chip Mounter Machine
    Contact Now
    Detailed Product Description
    Condition: New Weight (KG): 1000
    Showroom Location: None Video Outgoing-inspection: Provided
    Machinery Test Report: Provided Marketing Type: Hot Product 2019
    Warranty Of Core Components: 1 Year Core Components: PLC
    Warranty: 1 Year Product Name: SMD Chip Mounter Machine
    Skype: Sensenhenhao Whatsapp/wechat: +8613424013606
    Model Number:: YSM20 SMDCHIPMOUNTER Applicable Components:: Nts: 0402~5050
    Usage:: SMD LED SMT Application:: SMT Assembly Production Line
    Film Materials:: Privacy Material Power Supply:: AC220V 50Hz / AC110V
    Lead Time: 7-30days Port: Shenzhen

    LED Production line SMD Chip Mounter Machine YSM20 Yamaha pick and place machine SMT machine line



    WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

    Also can support some original parts of machine repair.



    SMD Chip Mounter Machine Specification:

    1. Applicability to odd-shaped parts is reinforced.
    2. Equipped with a head with one gantry and six spindles
    3. Placement accuracy correction system(head offset,C/V offset etc.)
    4. "Applicable to Max.740(L)x460(W)(Option)PCBs for long boards applied to LEDS and displays."
    5. "It has improved actual producticity and placement quality by applying high speed and high precision electrically driven feeders."
    6. Placement Rate:30,000CPH(Optimum)
    7. Board Dimension(mm)):50(L)*40(W)~460(L)*400(W)
    8. Option: 50(L)*40(W)~760(L)*460(W)
    9. PCB Thickness:0.38mm~4.2mm
    10. External Dimension(mm): 1650(L)*1680(D)*1530(H)
    11. PCB Standard Transport Direction :Left-to-Right/Right-to-Left(Option)



    Specifications
    YAMAHA Pick and Place Machine
    Applicable PCB
    L 510 x W 460mm - L 50 x W 50mm* Option: Up to L610 mm available
    Mounting capability
    46,000CPH (The Company's optimum conditions)
    Applicable components
    03015-W 55 x L 100mm (divided recognition for over W 45mm), H: 15mm or less
    Mounting accuracy
    ±0.035 mm (±0.025 mm) Cpk more than 1.0 (3σ)
    Number of component types
    Setting Plate : Max 96 types (8mm)Tray : 15 types (sATS 15 equipment)
    Power supply
    3-phase AC 200/208/220/240/380/400/416 V ±10% 50/60 Hz
    Air supply source
    0.45MPa or more, clean and dry state
    External dimension
    L 1,254 x W 1,440 x H 1,445mm (excluding protrusions)
    Weight
    1,270kg

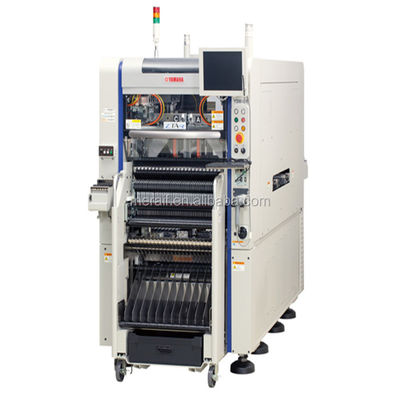

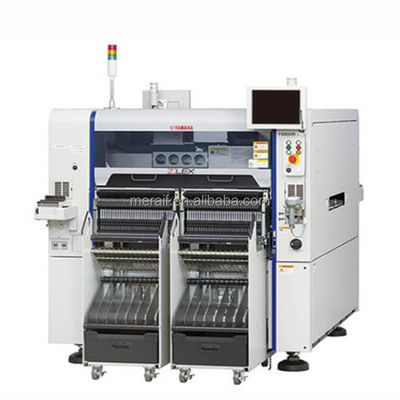

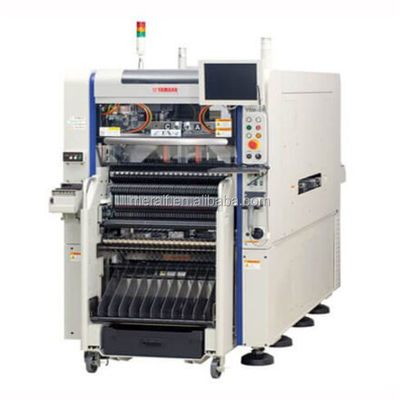

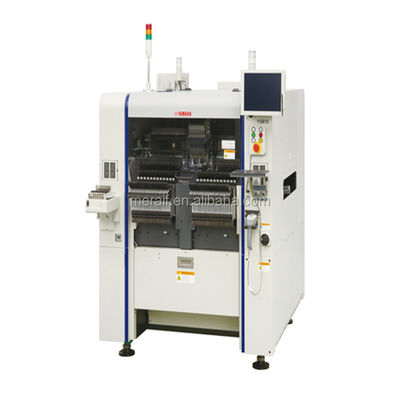

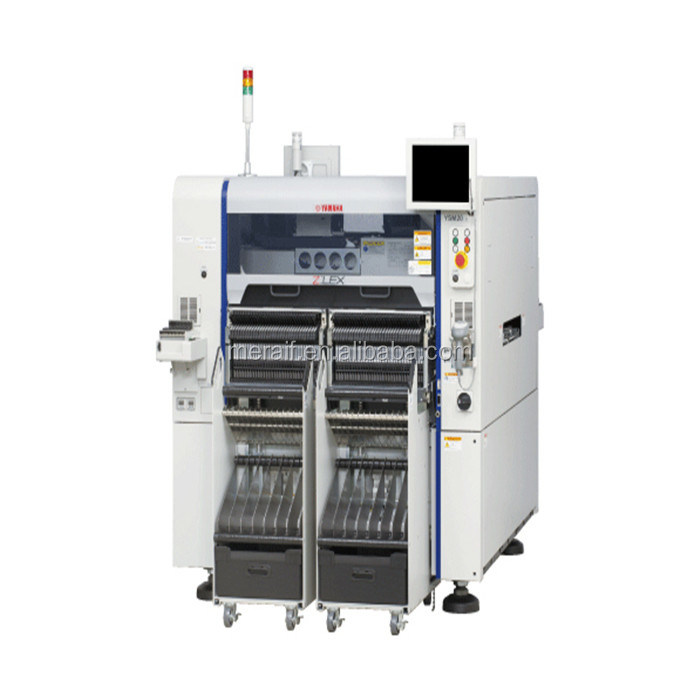

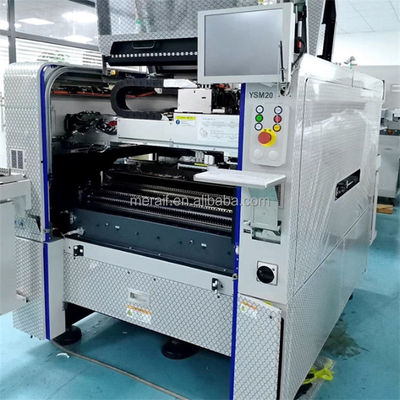

    SMD Chip Mounter Machine picture show

    LED Production line SMD Chip Mounter Machine YSM20 Yamaha pick and place machine SMT machine line

    LED Production line SMD Chip Mounter Machine YSM20 Yamaha pick and place machine SMT machine lineLED Production line SMD Chip Mounter Machine YSM20 Yamaha pick and place machine SMT machine lineLED Production line SMD Chip Mounter Machine YSM20 Yamaha pick and place machine SMT machine lineLED Production line SMD Chip Mounter Machine YSM20 Yamaha pick and place machine SMT machine lineLED Production line SMD Chip Mounter Machine YSM20 Yamaha pick and place machine SMT machine lineLED Production line SMD Chip Mounter Machine YSM20 Yamaha pick and place machine SMT machine lineLED Production line SMD Chip Mounter Machine YSM20 Yamaha pick and place machine SMT machine line
