Semi-auto pcb dip soldering machine solder pot wave soldering machine online
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
solder pot wave soldering machine furnace
*Voltage: 220V Maximum power: 450W
* Furnace specification: 450*300*70MM, melting tin amount 65KG
*Lifting frame lifting method: motor + screw
*Dimensions: 700*700*700MM
Features:
1. Up and down movement adopts motor and screw rod, precision 0.1MM
2. With automatic tin scraping function
3. Constant temperature function, adjustable temperature range of 0-600℃
4. High temperature accuracy ±20℃
5. Increase preheating function, foot spray system
6. Adjustable up and down speed and tin scraping speed
7. Adjustable immersion tin angle
8. Adjustable preheating time, adjustable tin immersion time
9. Using ceramic heating plate for heating, uniform heat and long service life
10. The furnace is made of lead-free titanium alloy, which is resistant to high temperature and corrosion
11. Each product supports customization
solder pot wave soldering machine Leaching method:
Put the flux soldering board on the needle frame,start the footswitch on. The machine can soldering difference pcb board at one time,Microcomputer control all the steps,Completely simulation manual leaching soldering principle, researchers from training, anyone could dip soldering homework, do not need to dab at, soldering stable quality, and enhance the production efficiency.Semi-auto pcb dip soldering machine/Touch screen control/dip soldering machine
Application:
1.large quantity and lots of specification PCBA board manufacturers
2.Intrustment and equipment manufacturer,lots PCB,but less quantity,manual leaching soldering need the skillfull operater ,wave soldering high cost ,it's much economical choose automatic leaching soldering pot.
3.For some big board in hkbu tin process will deformation, our company specially produced for fixture, make in soaking in the process of PCB tin deformation.
Function:
1.Meet the circuit board and the common solder products use (with the suitbale fixture)
2.Improve the welding quality, imitate manual soldering
3.Improve production rate,awelding batch products at the same time , compared with about four times as much manual soldering.
Features:
1.Up and down movement adopting step-motor drive the ball screw, stepping motor accuracy of 0.1 mm, solder depth accurate
2.Circuit board drift in face of zion Baptist tin, and not be impact solder
3.The lifting speed adjustable leaching products, and circuit board leaching tin Angle adjustable, reducing the surface tension, meet the technological requirements.
4.With each cycle of automatic shave their surface oxide to tin slag slot, improve the soldering quality.
5.Can undertake circuit board and flux of the surface preheating, improve activity and soldering quality.
6.Soldering time, its range from 1 second-10 seconds can beadjust
7.The high temperature ceramic fever board, after insulation treatment, long service life, temperature control adopted Touch screen control in accuracy ± 2 °, tin stove the furnace pipe is made of pure titanium industry TA2, ground temperature using K thermocouple type.Semi-auto pcb dip soldering machine/Touch screen control/dip soldering machine
8.has a variety of solder fixture with the product, can be arbitrarily choose and buy, also accept custom
9.Range of 400 °C temperature setting

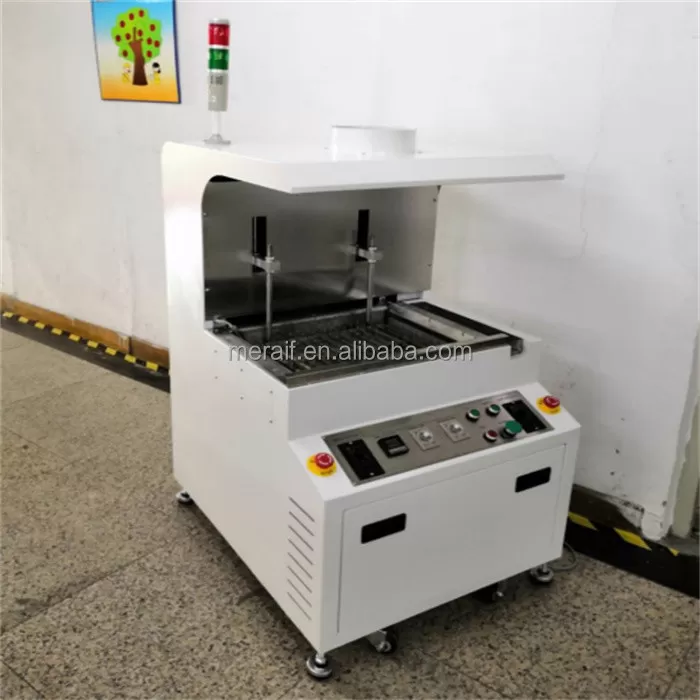

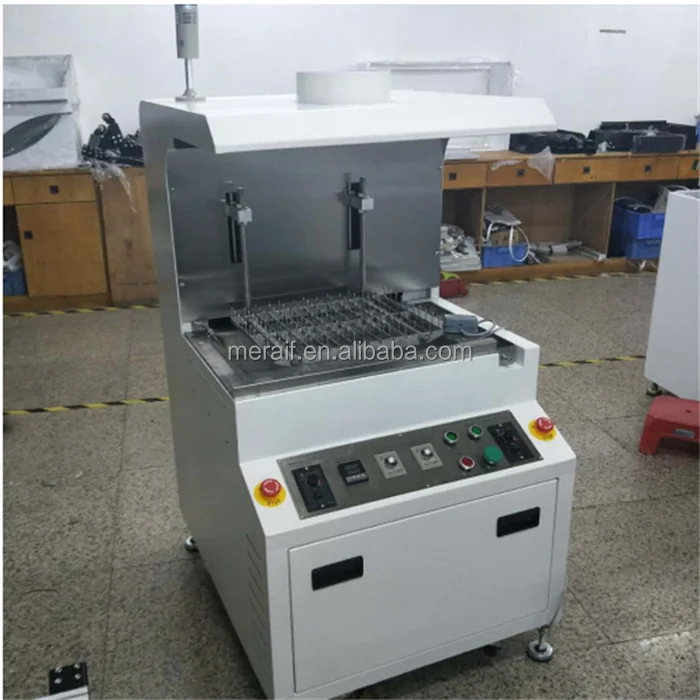

solder pot wave soldering machine picture show:
