Introduce of Panasonic Chip Mounter
The compact, dual-beam Panasonic NPM-D3 chip mounter offers a reinforced frame, advanced head and award-winning multi- recognition camera improve placement accuracy by 25%, while boosting IPC-9850 throughput 30% to 38,078 CPH per square meter.
|
model
|

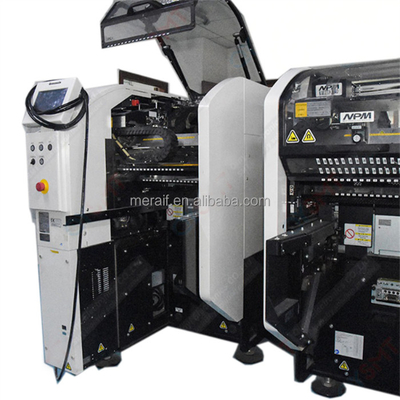

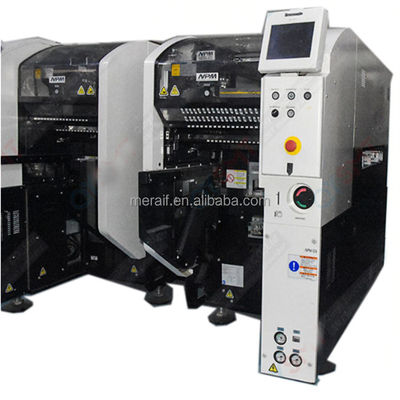

Panasonic placement machine NPM-D3
|
|
pcb size
|
l 50mm × w 50mm ~ l 510mm × w 300mm;
|
|
Range of components that can be attached
|
Editing bandwidth: 8/12/16/24/32/44/56 mm; 01005 chip ~ l12 × w12 × t6.5
|
|
Number of material stations
|
68 stations/modules;
|
|
Mounting head number
|
2 cantilevers * 16 placement heads
|
|
Theoretical mounting speed
|
84,000cph,ipc9850(1608):63, 300cph;
|
|
Placement accuracy
|
±40μ/chip
|
Features & Benefits
1. Flexible board handling system converts to support single and multiple dual-lane operation modes
2. Compact footprint and dual-side operation maximizes factory floor space utilization and scalability
3. Integrates the industry’s only field-scalable multi- recognition camera that combines alignment, thickness and 3D coplanarity into one time-saving, process-improving step
Specification of Panasonic Chip Mounter
Placement tact time and accuracy values may differ slightly depending on conditions.
Please refer to the specification booklet for details.
1 Single-lane mode
2 1200mm long-board option
3 With High Production Mode active
4 For 03015 and 0201 metric placement: High Accuracy Mode and special calibration required
