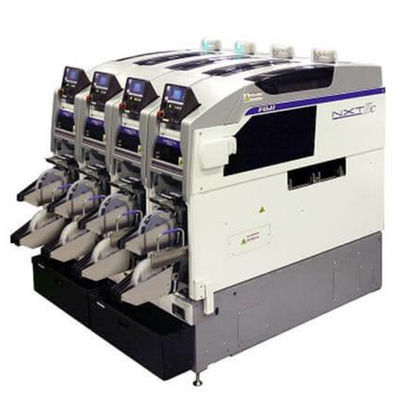

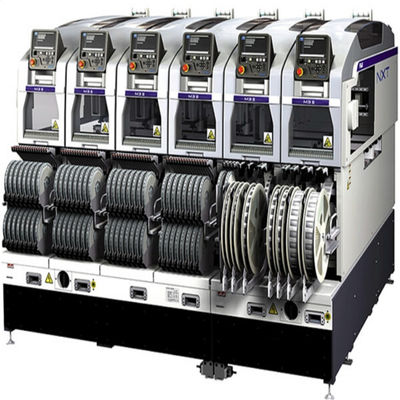

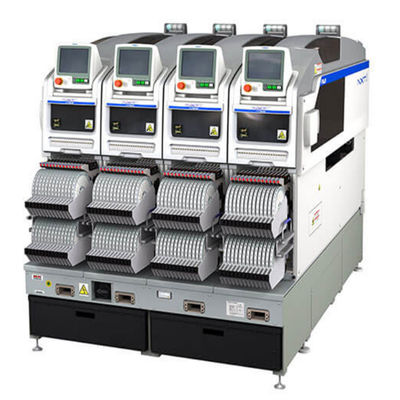

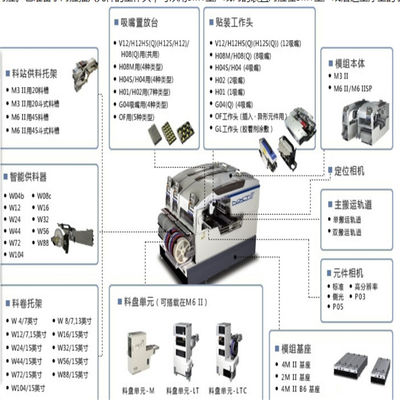

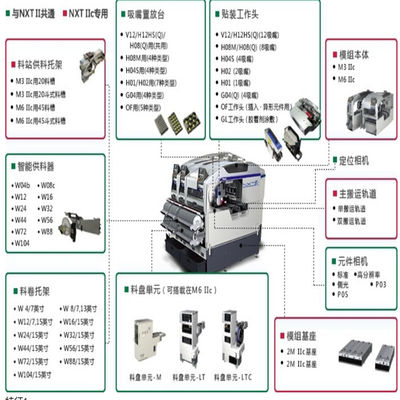

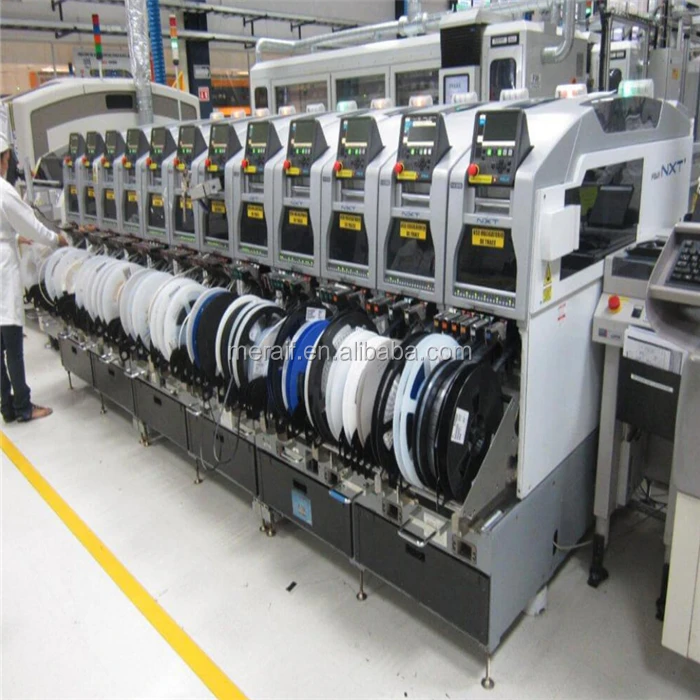

Features of FUJI NXT III
The NEW NXT III is a highly productive, multi-functional modular placing machine. Built for speed, it features a faster XY robot and tape feeders, as well as a new H24 head that achieves 35,000 chips per hour. The NXT III supports the smallest parts being used in mass production with extreme placing accuracy.
A faster XY robot and faster tape feeders, as well as a newly developed "flying vision" parts camera, mean increased placing ability for all part sizes and types.
The new H24G high-speed head achieves 37,500 cph (chips per hour) (Productivity priority mode) per module, a 44% improvement from the fastest speed of the NXT II.
Specification of fuji nxt 3 chip mounter machine
| 1.Applicable PCB size (LxW): |
48 x 48 mm to 250 x 510 mm (double conveyor)*
48 x 48 mm to 250 x 610 mm (single conveyor)
*Double conveyors can handle PCBs up to 280 (W) mm. PCBs larger than 280 (W) mm must be produced by changing the double conveyor to single lane production mode. |
| 2.Part types |
Up to 20 types of parts (calculated using 8 mm tape) |
| 3.PCB loading time:For double conveyor: |
0 sec (continuous operation)
For single conveyor: 2.5 sec (transport between M3 III modules), 3.4 sec (transport between M6 III modules) |
4.Placement accuracy (Fiducial mark standard)
* The placing accuracy is obtained from tests conducted by Fuji. |
| H24G |
: +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority mode) (3sigma) cpk≥1.00 |
| V12/H12HS |
: +/-0.038 (+/-0.050) mm (3sigma) cpk≥1.00 |
| H04S/H04SF |
: +/-0.040 mm (3sigma) cpk≥1.00 |
| H08/H04 |
: +/-0.050 mm (3sigma) cpk≥1.00 |
| H02/H01/G04 |
: +/-0.030 mm (3sigma) cpk≥1.00 |
| H02F/G04F |
: +/-0.025 mm (3sigma) cpk≥1.00 |
| GL |
: +/-0.100 mm (3sigma) cpk≥1.00 |
|
Productivity
* The throughput above is based on tests conducted at Fuji. |
| H24G |
: 37,500 cph (Productivity priority mode) / 35,000 cph (Standard mode) |
| V12 |
: 26,000 cph |
| H12HS |
: 24,500 cph |
| H08 |
: 11,500 cph |
| H04 |
: 6,500 cph |
| H04S |
: 9,500 cph |
| H04SF |
: 10,500 cph |
| H02 |
: 5,500 cph |
| H02F |
: 6,700 cph |
| H01 |
: 4,200 cph |
| G04 |
: 7,500 cph |
| G04F |
: 7,500 cph |
| GL |
: 16,363 dph (0.22 sec/dot) |
|
| Supported parts |
| H24G |
: 0201 to 5 x 5 mm |
Height |
: up to 2.0 mm |
| V12/H12HS |
: 0402 to 7.5 x 7.5 mm |
Height |
: up to 3.0 mm |
| H08M |
: 0603 to 45 x 45 mm |
Height |
: up to 13.0 mm |
| H08 |
: 0402 to 12 x 12 mm |
Height |
: up to 6.5 mm |
| H04 |
: 1608 to 38 x 38 mm |
Height |
: up to 9.5 mm |
| H04S/H04SF |
: 1608 to 38 x 38 mm |
Height |
: up to 6.5 mm |
| H02/H02F/H01/0F |
: 1608 to 74 x 74 mm (32 x 180 mm) |
Height |
: up to 25.4 mm |
| G04/G04F |
:0402 to 15 x 15 mm |
Height |
: up to 6.5 mm |
|
| Module width |
320 mm |
| Machine dimensions |
L: 1295 mm (M3 III x 4, M6 III x 2) / 645 mm (M3 III x 2, M6 III)
W: 1900.2 mm, H: 1476 mm |
| Model |
M3 III |
