Hanwha SM482 Plus Multi-Functional chip mounter machine SMT Placer
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
HANWHA DECAN F2 Advanced Chip shooter
Speed : 80,000 CPH (Optimum)
Structure : 2 Gantry x 10 Spindles/Head
Accuracy : ±40μm Cpk≥1.0 (0402 Chip)
±30μm Cpk≥1.0 (IC)
Parts Size : 0402~55mm (H15mm)
PCB Size : L510xW460mm (Standard)
Wide Part Handling Capability
Various PCB Transfer Systems
Verified Production History Management Solution
High Speed Placement
Optimizing PCB transportation paths for productivity improvement
>An optimal conveyor model configuration is possible according to production line composition (shuttle ↔ dual) applied with a modular conveyor that is replaceable on site.
>PCB supply time is shortened as a result of high-speed shuttle conveyor operation.
Minimized head path for improved equipment speed
Twin Servo Control
> Ensuring high-speed operation with a linear motor application to the Y axis, and twin servo control High-speed Flying Head
>Minimized head movement path through recognizing parts during transportation following parts installation
>10-spindle head with individually operating Z axes
Placement Accuracy: ±40um (0402mm 01005inch)
> Applied with a high-precision linear scale and rigid mechanism
> Provides precision calibration algorithms and diverse automatic calibration functions
[FLEXIBLE LINE SOLUTION]
Provides optimal line solutions through versatility and productivity improvement
>Optimal line configuration from chips to uniquely-shaped components according to options setup
Equipment capable of responding to large-scale PCBs, which can be remodeled on site
> Standard equipment can be remodeled on site to equipment capable of large-scale PCB handling
- Responsive to a maximum 740 x 460mm PCB
Responsive to uniquely-shaped components (including tray components)
> Responsive to a maximum 42mm IC when the stage vision option is applied
Strengthened equipment software operation convenience
>Convenient production and editing of work programs with built-in equipment optimization software
> Provision of a range of work data and information on a large-scale LCD screen
High-precision, convenient electric feeder
> Calibration and maintenance-free electric feeder
> Improved work convenience with a single reel bank mounted feeder
> Improved productivity through the provision of automatic parts pick-up position alignment between feeders
Reduced work load through parts connection automation (smart feeder)
> Automatic loading and splicing capabilities implemented as an industry first
- Significantly reduction in work time through feeder preparation and parts connection operation automation which were previously carried out manually
> Zero consumables costs for parts connection attained

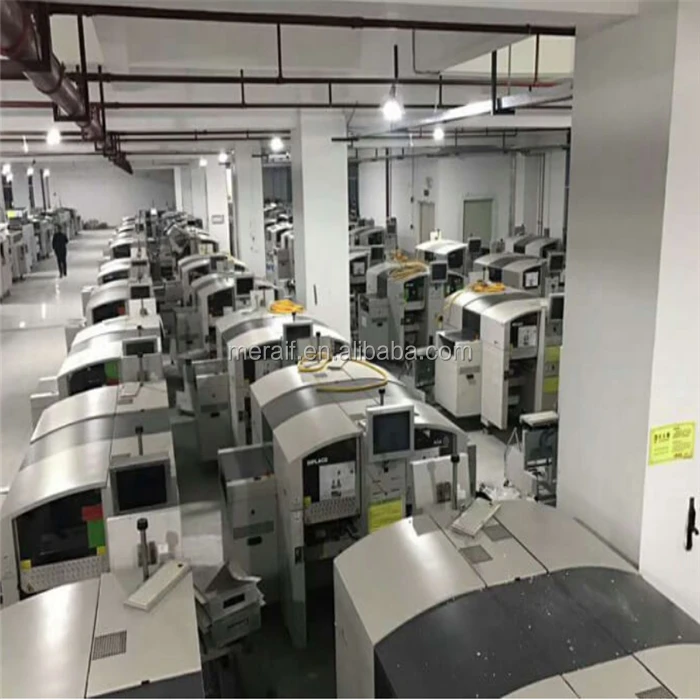

Meraif's Customer In 35 Countries Around the World
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT

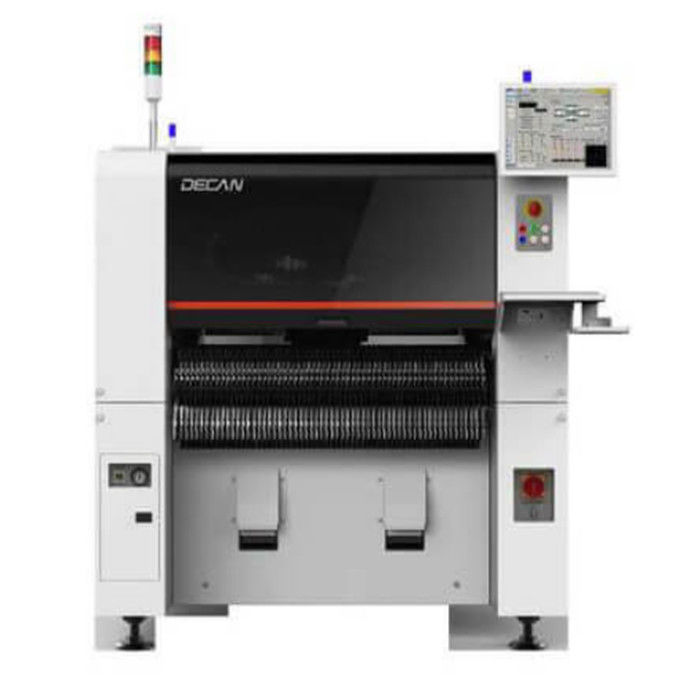

HANWHA DECAN F2 smt chip mounter picture show
