Place of Origin: | CHINA |
Brand Name: | Yamaha iPulse M10 chip monuter machine high speed smt pick and place machine |
Certification: | CE |
Model Number: | Yamaha iPulse M10 chip monuter machine high speed smt pick and place machine |
Minimum Order Quantity: | smt pick and place machine 1 set |
---|---|
Price: | 30000-50000usd/set |
Packaging Details: | packing with wooden case |
Delivery Time: | within 15 days after payment |
Payment Terms: | TT,western union,paypal and so on |
Supply Ability: | 300 sets per month |
Usage: | smt electronice factory |
Theory: | smt pick and place machine |
Brand Name:: | Yamaha IPulse M10 Chip Monuter Machine High Speed Smt Pick And Place Machine | Skype: | Sensenhenhao |
---|---|---|---|
Whastapp/wechat: | +8613424013606 | Website: | Www.wickonsmt.com |
Application: | SMT Assembly Production Line | Power Supply: | AC220V 50Hz / AC110V |
Film Materials: | Privacy Material | Usage: | SMD LED SMT |
Applicable Components::: | 0402~5050 |
Yamaha iPulse M10 chip monuter machine high speed smt pick and place machine
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
Specification of M10 chip monuter machine
Yamaha I-pulse M10 | |
Board size(with buffer unused) | Min. L50 x W30mm to Max. L980 x W510mm *1 |
Board size(with input or output buffer used) | Min. L50 x W30mm to Max. L420 x W510mm |
Board size(with input and output buffers used) | Min. L50 x W30mm to Max. L330 x W510mm |
Board thickness | 0.4 - 4.8mm |
Board flow direction | Left to right (Standard) |
Board transfer speed | Max 900mm/sec |
Placement speed (4 heads + 1 theta) Opt. Cond. | 0.15sec/CHIP (24,000CPH) |
Placement speed (4 heads + 4 theta) Opt. Cond. | 0.15sec/CHIP (24,000CPH) |
Placement speed (6 heads + 2 theta) Opt. Cond. | 0.12sec/CHIP (30,000CPH)*2 |
Placement speed (4 heads + 1 theta) IPC9850 | 19,000CPH |
Placement speed (4 heads + 4 theta) IPC9850 | 19,000CPH |
Placement speed (6 heads + 2 theta) IPC9850 | 23,000CPH*2 |
Placement accuracy A (?+3?) | CHIP +/-0.040mm |
Placement accuracy B (?+3?) | IC +/-0.025mm |
Placement angle | +/-180 degrees |
Z axis control | AC servo motor |
Theta axis control | AC servo motor |
Component height | Max 30mm*3 (Pre-placed components: max 25mm) |
Applicable components | 0402 to 120x90mm, BGA, CSP, connector, etc. |
Component package | 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray |
Drawback check | Vacuum check and vision check |
Screen language | English, Chinese, Korean, Japanese |
Board positioning | Board grip unit, front reference, auto conveyor width adjustment |
Component types | Max 72 types (8mm tape), 36 lanes x 2 |
Transfer height | 900 +/- 20mm |
Machine dimensions, weight | L1250xD1750xH1420mm, Approx. 1,150kg |
Power | 3-phase 200/208/220/240/380/400/416/440V +/-10% (Transformer included), 50/60Hz |
Max consumption, capacity | 1.1kW, 5.5kVA |
Air pressure, consumption | 0.45Mpa, 50(4 heads) or 75(6 heads) L/min A.N.R. |

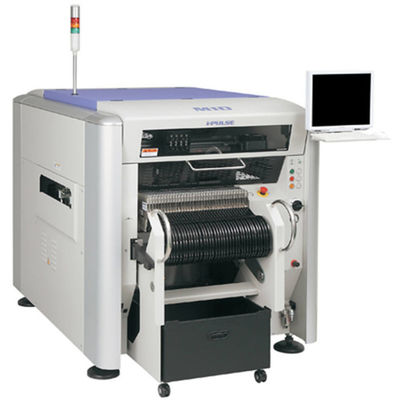

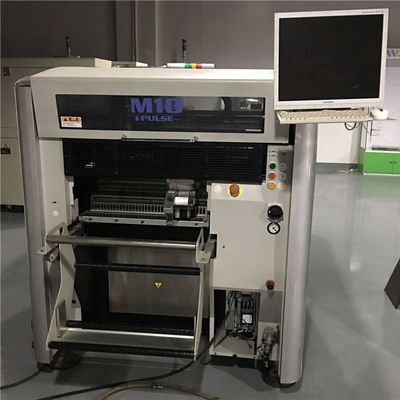

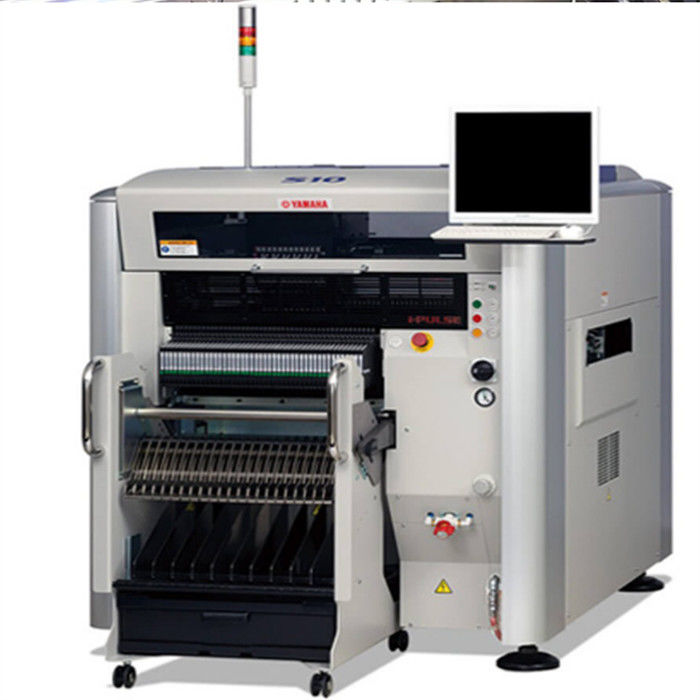

M10 chip monuter machine picture show
