smt chip mounter machine Specification:
YAMAHA YS24
Compact -Super-High -Speed Modular
Features:
72,000CPH (0.05sec/CHIP)
34kCPH(Area-productivity, top class in the world)
L700 x W460mm (Super large PCB applicable)
YAMAHA Dual Lane System applicable
120 Max feeder capacity
0402 to 32 x 32mm(Components applicable)
Specifications
Model YAMAHA YS24
Applicable PCB L50xW50mm –to L700xW460mm
Mounting accuracy +/-0.05mm ( 3), +/-0.03mm (3)
Speed 72,000CPH (0.05 sec./CHIP: Optimum conditions established by Yamaha Motor)
Applicable components 0402 to 32x32mm MAX (Height 6.5mm or less)
Component Types 120 types (Max./8mm wide tape reel conversion)
Power supply Three phase AC 200/208/220/240/380/400/416 V +/-10%
Air supply source 0.45MPa
External dimension L1,254x W1,687x H1,445mm (Excluding protrusions)
Weight Approx. 1,700kg
Keywords:
JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, Hanwha Decan S2 Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

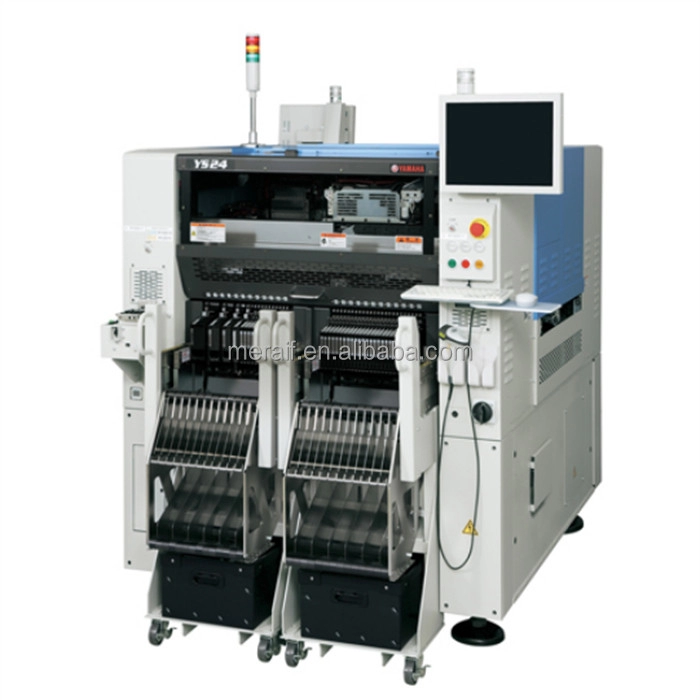

smt chip mounter machine picture show
