    Product Details:

    Place of Origin: Japan
    Brand Name: Pick and Place Machine
    Model Number: Hitachi SIGMA F8 Pick and Place Machine

    Payment & Shipping Terms:

    Price: $1.00 - $2.00/pieces
    Packaging Details: Hitachi SIGMA F8 Pick and Place Machine packing with vacuum wooden carton
    Supply Ability: 1000000 Piece/Pieces per Month Hitachi SIGMA F8 Pick and Place Machine
    Contact Now
    Detailed Product Description
    Condition: Used Weight (KG): 1000
    Showroom Location: None Video Outgoing-inspection: Provided
    Machinery Test Report: Provided Marketing Type: Ordinary Product
    Warranty Of Core Components: 1 Year Core Components: PLC
    Warranty: 1 Year Product Name: Hitachi SIGMA F8 Pick And Place Machine
    Skype: Sensenhenhao Whatsapp/wechat: +8613424013606
    Model Number:: RS-1 Applicable Components:: 0402,Minimum 01005-38*38*8.5m
    Usage:: SMD LED SMT Application:: SMT Assembly Production Line
    Film Materials:: Privacy Material Power Supply:: AC220V 50Hz / AC110V
    Lead Time: 7-30days Port: Shenzhen

    Hitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machine

    whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322



    WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

    Also can support some original parts of machine repair.

    Hitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machine

    Hitachi SIGMA F8 Pick and Place Machine details:

    Hitachi SIGMA F8 parameters
    Device Name: Hitachi Mounter
    Model: SIGMA-SIGMA F8
    The placement head consists of: 4 placement heads / modules
    Mounting Speed (Highest Mounting Speed): 156,000CPH
    Board size (mm) Monorail, / double track: 50 * 50 - 330 * 250
    Applicable components: 0402 -
    Equipment size (mm): Ll2,80 D2,240 Hl, 450
    Equipment weight: about l, 900kg (excluding trolleys and feeders)
    Power supply: 3-phase AC200V ± 20V, 5O / 60Hz
    Air pressure: 0.45-0.69MPa (4.6-7kgf / cm2)
    Setting: O.45MPa (4.6kgf / cm2)
    Hitachi Mounter SIGMA F8, HITACHI Mounter Features:
    To leapfrog performance, into the ultra-high-speed era
    High Productivity (156,000 cph) High Production Coverage (54,400 cp / m2)
    High reliability of small components mounted (placement accuracy 30: soil 36μm)

    Evolving direct drive placement head
    Super High Speed DDH (Direct Dreve Head)
    High-speed high-precision direct-drive placement head
    High Speed One By One Suction / Mount
    Quatro Head (4 over the head structure)
    Four heads were mounted in the same space as the previous generation SIGMA-G4 / SIGMA G5
    Significantly increase the production capacity per unit area
    Horizontal rotation detection

    Detection of all the tiny components of the suction state (with or without oblique),

    measured the thickness of components, feedback and adjust the mounting height

    Whether the components are taken back

    Excellent operability

    SL (Super Loading) gun
    Automatic follow-up guns will greatly reduce the operator's homework
    Intelligent operation
    The entire line can be controlled on any module (line start / stop / program change)
    Bad point identification and other substrate information sharing of all production lines

    High reliability
    LISA (Line Information Support & Administration)
    Material gun material testing to prevent the wrong material production
    CV tracking support / data unified management
    ACV (Advanced Component Validation)
    ACV system
    Production line information unified management
    Support non-stop switching
    Production line operation and management

    Theoretical speed of the patch 156, OOOCPH
    Placement range 1005 (0402) -32mmIC
    Placement accuracy plus or minus 0.03mm
    PCB size 50 * 50 - 330 * 250mm
    Equipment size: Ll2,80 D2,240 Hl, 450
    Power 3-phase AC200V ± 20V, 5O / 60Hz
    Equipment weight 1900kg

    Hitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machine

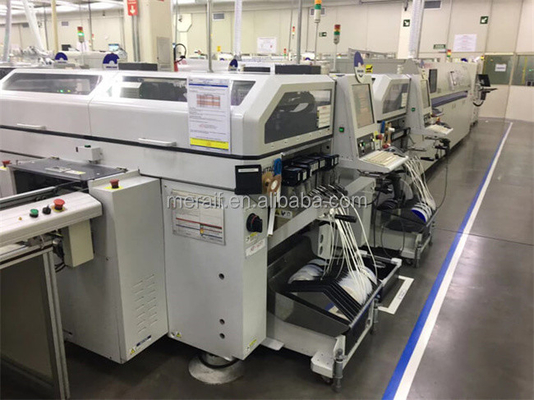

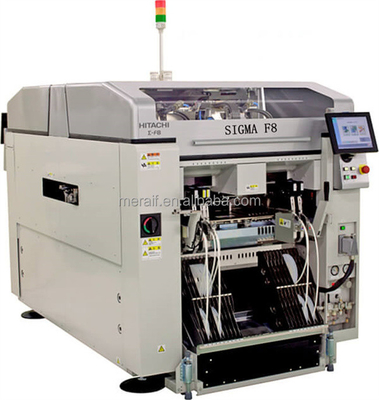

    Hitachi SIGMA F8 Pick and Place Machine picture show:

    Hitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machineHitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machine

    Hitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machine

    Hitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machineHitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machineHitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machine

    Hitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machineHitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machineHitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machine



    Hitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machineHitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machineHitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machine

    Hitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machineHitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machineHitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machineHitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machineHitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machineHitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machineHitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machineHitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machine

    Hitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machineHitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machineHitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machineHitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machine

    Smt machine parts we can support you as follow:



    Hitachi SIGMA F8 Pick and Place Machine Ultra High Speed Chip Mounter machine

    Anything please feel free contact
