FX-1R Pick and Place Machine SMT Chip Mounter for JUKI
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
FX-1R Pick and Place Machine details:
The High-speed Modular Mounter FX-1R is a traditional modular chip
shooter driven at extreme speeds. Refinements in the drive system deliver real world improvements in actual throughput.For the 0402-20mm chip or special-shaped components, small-scale high-speed placement.JUKI fx-1r Mounter Features:JUKI high-speed placement machine fx-1r adopts advanced linear motor and unique hi-drive mechanism for high-speed placement.Inherited the traditional concept of modular placement machine, and realized a high-speed placement of the placement machine.Reasonably adjust all parts and improve the actual mounting speed.
SMT chip Mounter fx-1r parameters:Board size: 410*360mmComponent height: 6mm33,000CPH:chip (optimal) / 25,000CPH: chip (IPC 9850)Two independent multi-nozzle laser heads (8 total nozzles)from 0603 (0201) to 20mm square components or 26.5×11mm0402 (01005) option factory installed.Component Size: Laser Recognition 0603 (Inch 0201) Chip ~20mm Square Element or 26.5*11mmComponent placement speed:chip:33000cph (best condition)Chip piece: 25000cph (ipc9850)Component placement accuracy: ±0.05mmComponent placement type: up to 80 typesPower supply: three-phase ac200~415vRated power: 3kvaAir pressure: 0.5±0.05mpaMachine size: 1,880×1,731×1,490mm Weight: about 2000kg

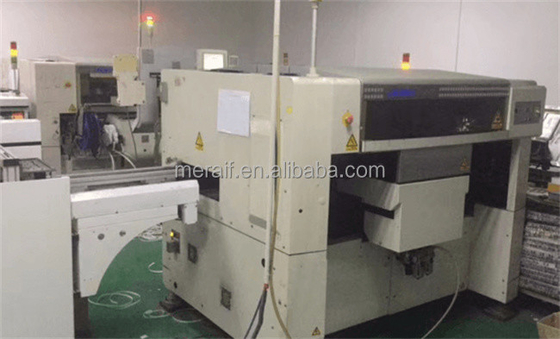

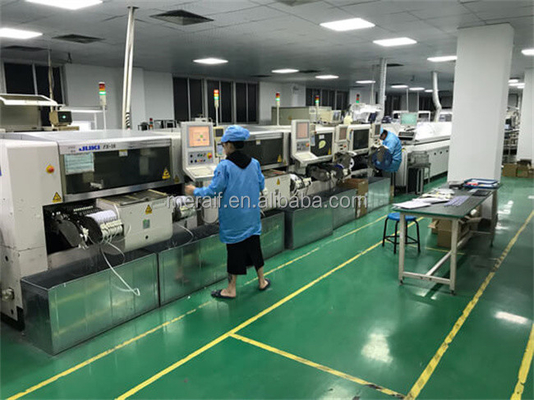

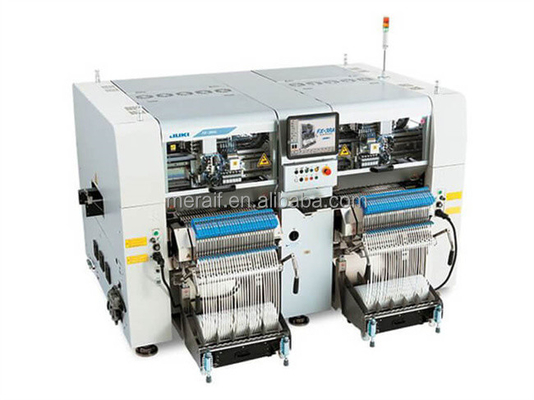

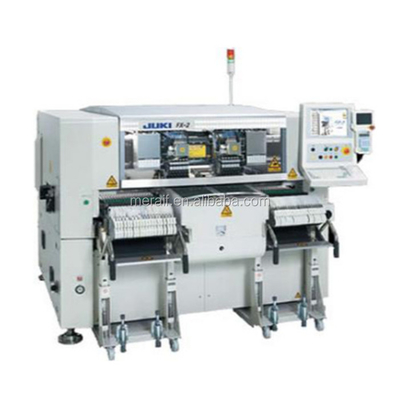

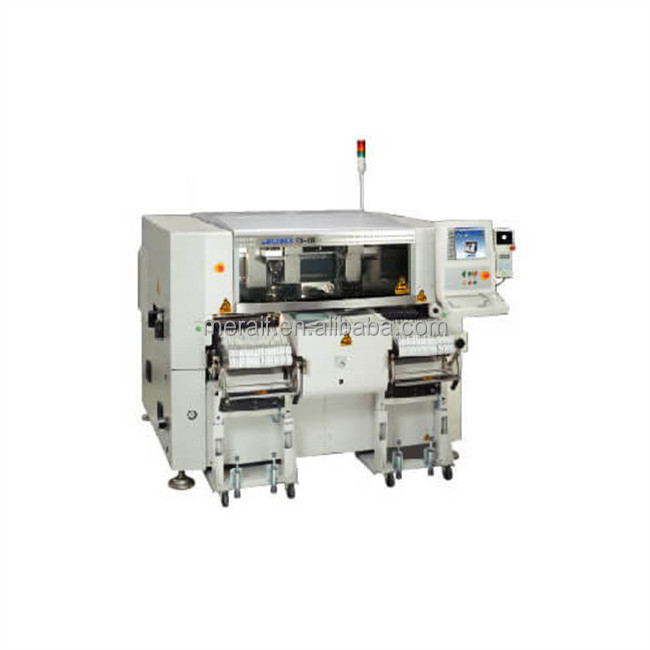

FX-1R Pick and Place Machine picture show:
Smt machine parts we can support you as follow:
Anything please feel free contact
