    Product Details:

    Place of Origin: Japan
    Brand Name: Multi-Functional chip mounter
    Model Number: iPulse M20 chip monuter

    Payment & Shipping Terms:

    Price: $60,000.00 - $1,100,000.00/pieces
    Packaging Details: chip mounter
    Supply Ability: 1000000 Piece/Pieces per Month chip mounter
    Contact Now
    Detailed Product Description
    Condition: New Weight (KG): 1000
    Showroom Location: None Video Outgoing-inspection: Provided
    Machinery Test Report: Provided Marketing Type: Hot Product 2019
    Warranty Of Core Components: 1 Year Core Components: PLC
    Warranty: 1 Year Product Name: Chip Mounter
    Skype: Sensenhenhao Whatsapp/wechat: +8613424013606
    Model Number:: YSM20 SMDCHIPMOUNTER Applicable Components:: Nts: 0402~5050
    Usage:: SMD LED SMT Application:: SMT Assembly Production Line
    Film Materials:: Privacy Material Power Supply:: AC220V 50Hz / AC110V
    Lead Time: 7-30days Port: Shenzhen

    Yamaha iPulse M20 chip mounter high speed smt pick and place machine M20

    whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322



    Specification of M20 chip monuter machine

    Model

    I-PulseM20

    Board size(with buffer unused)

    Min. L50 x W30mm to Max. L1,480 x W510mm*1

    Board size(with input and output buffers used)

    Min. L50 x W30mm to Max. L540 x W510mm

    Board thickness

    0.4 - 4.8mm

    Board flow direction

    Left to right (Std)

    Board transfer speed

    Max 900mm/sec

    Placement speed (4 heads + 1 theta) Opt. Cond.

    0.15sec/CHIP (24,000CPH)

    Placement speed (4 heads + 4 theta) Opt. Cond.

    0.15sec/CHIP (24,000CPH)

    Placement speed (6 heads + 2 theta) Opt. Cond.

    0.12sec/CHIP (30,000CPH)*2

    Placement speed (4 heads + 1 theta) IPC9850

    19,000CPH

    Placement speed (4 heads + 4 theta) IPC9850

    19,000CPH

    Placement speed (6 heads + 2 theta) IPC9850

    23,000CPH*2

    Placement accuracy A (?+3?)

    CHIP +/-0.040mm

    Placement accuracy B (?+3?)

    IC +/-0.025mm

    Placement angle

    +/-180 degrees

    Z axis control

    AC servo motor

    Theta axis control

    AC servo motor

    Component height

    Max 30mm*3 (Pre-placed components: max 25mm)

    Applicable components

    0402 to 120x90mm, BGA, CSP, connector, etc.

    Component package

    8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray

    Drawback check

    Vacuum check and vision check

    Screen language

    English, Chinese, Korean, Japanese

    Board positioning

    Board grip unit, front reference, auto conveyor width adjustment

    Component types

    Max 144 types (8mm tape), 36 lanes x 4

    Transfer height

    900 +/- 20mm

    Machine dimensions, weight

    L1750xD1750xH1420mm, Approx. 1450kg

    Power

    3-phase 200/208/220/240/380/400/416/440V +/-10%
    (Transformer included), 50/60Hz

    Max consumption, capacity

    1.1kW, 5.9kVA

    Air pressure, consumption

    0.45Mpa, 50(4 heads) or 75(6 heads) L/min A.N.R.

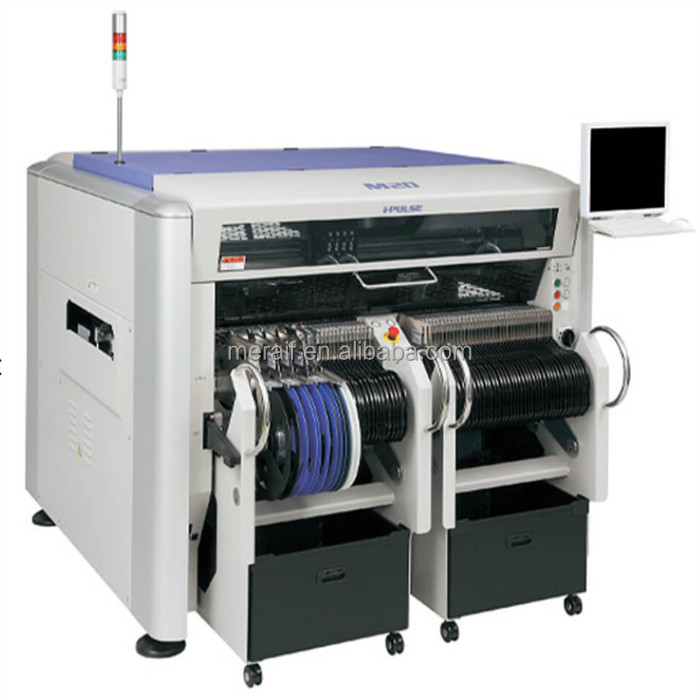

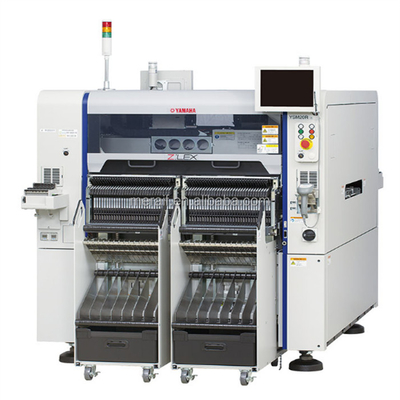

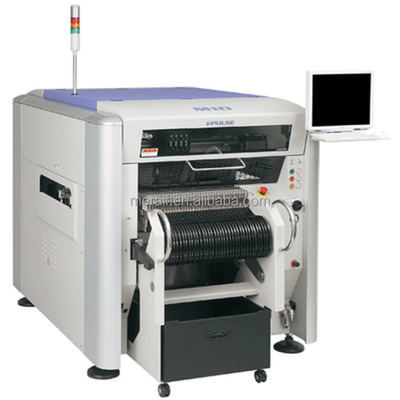

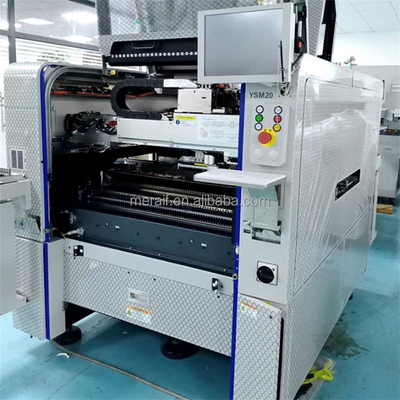

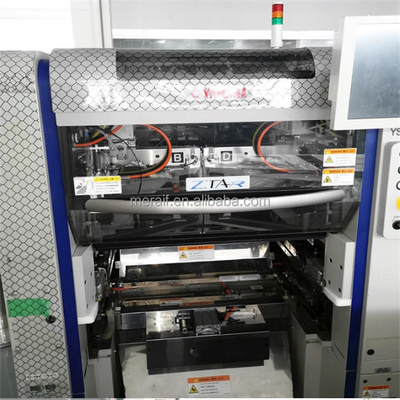

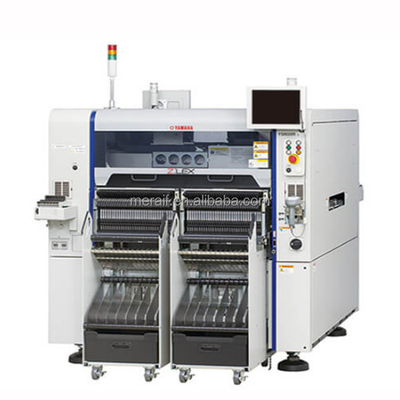

    chip mounter picture show

    Yamaha iPulse M20 chip mounter high speed smt pick and place machine M20Yamaha iPulse M20 chip mounter high speed smt pick and place machine M20Yamaha iPulse M20 chip mounter high speed smt pick and place machine M20Yamaha iPulse M20 chip mounter high speed smt pick and place machine M20



    Yamaha iPulse M20 chip mounter high speed smt pick and place machine M20

    Yamaha iPulse M20 chip mounter high speed smt pick and place machine M20Yamaha iPulse M20 chip mounter high speed smt pick and place machine M20Yamaha iPulse M20 chip mounter high speed smt pick and place machine M20

    Yamaha iPulse M20 chip mounter high speed smt pick and place machine M20

    Yamaha iPulse M20 chip mounter high speed smt pick and place machine M20Yamaha iPulse M20 chip mounter high speed smt pick and place machine M20
