SMT Equipment original used NPM-TT2 Chip Mounter PCB SMD Assembly Machine pick and place machine for Panasonic
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Basic Specification
Direct connectivity with NPM-D3/W2
Placement head (Lightweight 8- nozzle head & 3-nozzle head V2)
Selectable & configurable supply unit spec
Adoption of Multi Recognition Camera
Alternate & independent mounting support
pick and place machine for Panasonic Changeover capability
Multi Recognition Camera
High productivity through fully independent placement
Support Pin Automatic Change (option)
Productivity/Versatility
Feeder cart changeover spec(option)
Inspection option before pick-up
Transfer Unit(option)
Model ID:NPM-TT2 PCB SMD Assembly Machine
PCB size:
Single-lane mode: L 50 x W 50 ~ L 510 x W 590
Dual-lane model: L 50 x W 50 ~ L 510 x W 300
M size:
Single-lane mode
L 50 x W 50 ~ L 510 x W 510
Dual-lane mode
L 50 x W 50 ~ L 510 x W 260
PCB exchange time:
Single-lane mode:4.0 s (With no component mounted on the reverse side of PCB)
Dual-lane mode:0 s* *No 0s when cycle time is 4.0 s or less
Electric source:3-phase AC 200, 220, 380, 400, 420, 480 V 2.5 kVA
Pneumatic source:Min.0.5 MPa, 200 L /min (A.N.R.)
Dimensions *1 (mm):W 1 300*2 x D 2 798*3 x H 1 444*4
Mass:2 690 kg
(Only for main body:This differs depending on the option configuration.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT

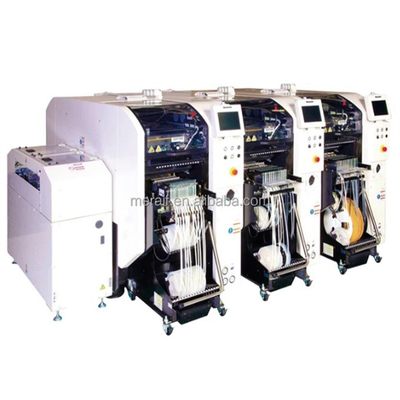

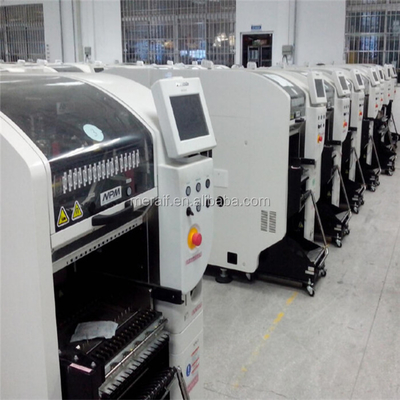

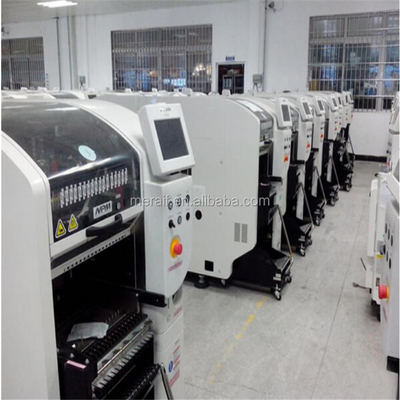

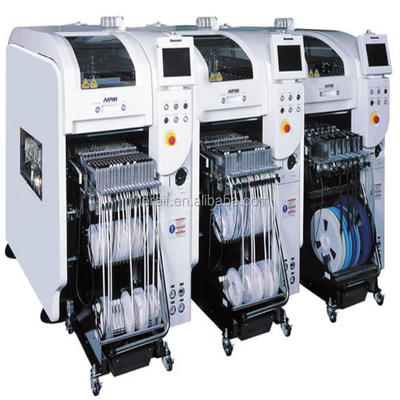

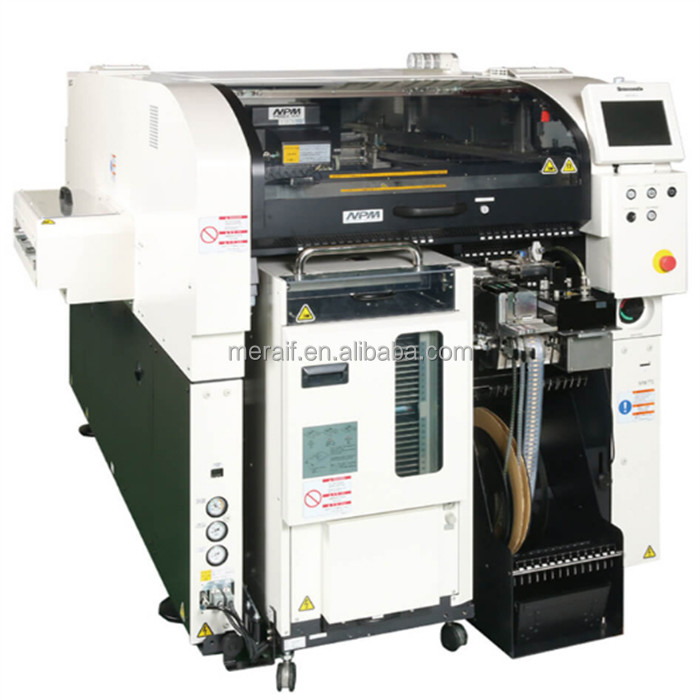

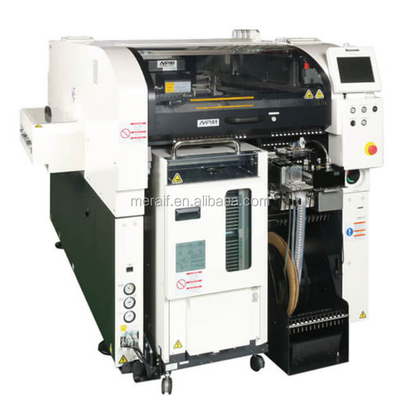

PCB SMD Assembly Machine picture show
