Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine

Price:	$60,000.00 - $1,100,000.00/pieces
Packaging Details:	chip mounter YSM40R
Supply Ability:	1000000 Piece/Pieces per Month chip mounter YSM40R

Contact Now

Detailed Product Description

Condition:	New	Weight (KG):	1000
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Product 2019
Warranty Of Core Components:	1 Year	Core Components:	PLC
Warranty:	1 Year	Product Name:	Chip Mounter YSM40R
Skype:	Sensenhenhao	Whatsapp/wechat:	+8613424013606
Model Number::	YSM20 SMDCHIPMOUNTER	Applicable Components::	Nts: 0402~5050
Usage::	SMD LED SMT	Application::	SMT Assembly Production Line
Film Materials::	Privacy Material	Power Supply::	AC220V 50Hz / AC110V
Lead Time:	7-30days	Port:	Shenzhen

Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

Specification of chip mounter YSM40R

Z:TA-R YSM40R
4-Beam, 4-Head Spec. (YSM40R-4)
Applicable PCB		L700×W460mm to L50×W50mm
Mounting capability (under optimum conditions as defined by Yamaha Motor)		200,000CPH (When using RS head)
Applicable components	Ultra-High-Speed (RS) Head	0201mm* to 6.5mm (Height 2.0mm or less) *option
	Multi (MU) Head	03015mm to 45×60mm (Height 15mm or less)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)		+/-35μm (25μm) Cpk 1.0 (3σ)
Number of component types * 8mm width tape conversion		Max. 80 feeders with RS heads Max. 88 feeders with MU heads Max. 84 feeders with RS x 2 + MU x 2 heads
Power supply		3-Phase AC 200/208/220/240/380/400/416V +/-10%
Air supply source		0.45MPa or more, in clean, dry state
External dimension		L1,000×W2,100×H1,550mm (excluding projections)
Weight		Approx. 2,100 kg

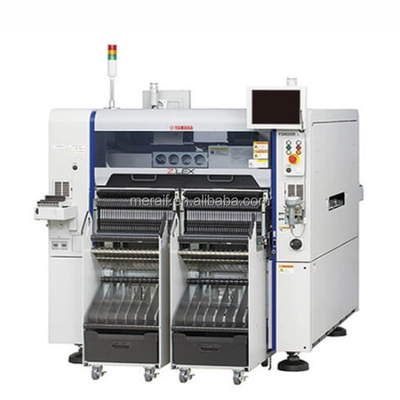

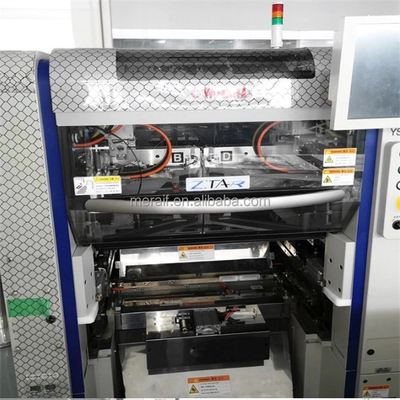

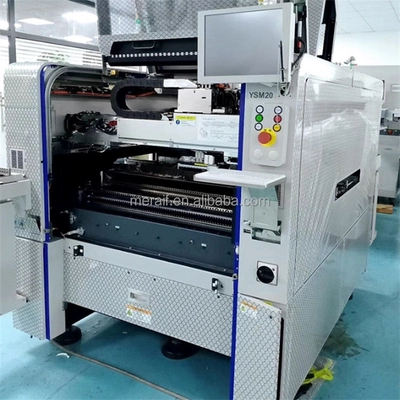

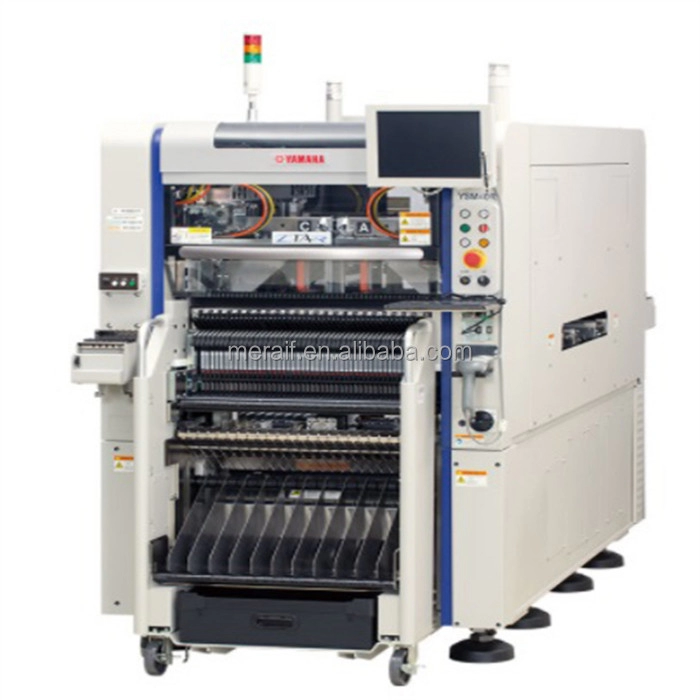

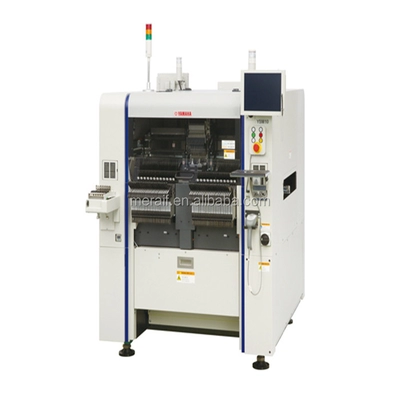

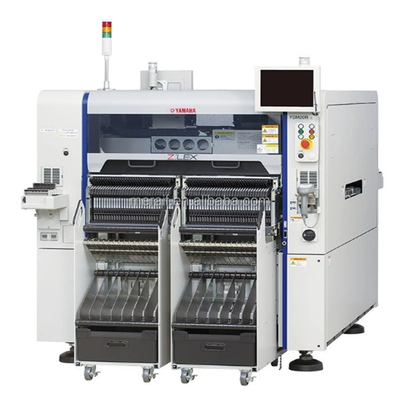

chip mounter YSM40R picture show

Yamaha chip mounter YSM40R SMT PCBA assembly pick and place machine
