Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine

Price:	$60,000.00 - $1,100,000.00/pieces
Packaging Details:	PCB chip mounter machine
Supply Ability:	1000000 Piece/Pieces per Month PCB chip mounter machine

Contact Now

Detailed Product Description

Condition:	New	Weight (KG):	1000
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Product 2019
Warranty Of Core Components:	1 Year	Core Components:	PLC
Warranty:	1 Year	Product Name:	PCB Chip Mounter Machine
Skype:	Sensenhenhao	Whatsapp/wechat:	+8613424013606
Model Number::	YSM20 SMDCHIPMOUNTER	Applicable Components::	Nts: 0402~5050
Usage::	SMD LED SMT	Application::	SMT Assembly Production Line
Film Materials::	Privacy Material	Power Supply::	AC220V 50Hz / AC110V
Lead Time:	7-30days	Port:	Shenzhen

Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

Specification of PCB chip mounter machine

Model		YSM20R
Applicable PCB		Single lane L810 x W490 to L50 x W50 Dual stage Note: For X-axis 2-beam option only 1PCB conveyance: L810 x W490 to L50 x W50 2PCB conveyance: L380 x W490 to L50 x W50
Head / Applicable components		High-Speed Multi (HM) Head * 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less
Mounting capability (under optimum conditions as defined by Yamaha Motor)		X axis 2-beam: High-speed multi-purpose (HM: High-speed Multi) head x 2 95,000CPH
Mounting accuracy		±0.035mm (±0.025mm) Cpk more than 1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component Types		Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply		3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source		0.45MPa or more, in clean, dry state
External dimension (excluding projections)		L 1,374 x W 1,857 x H1,445mm (Main unit only)
Weight		pprox. 2,050kg (Main unit only)

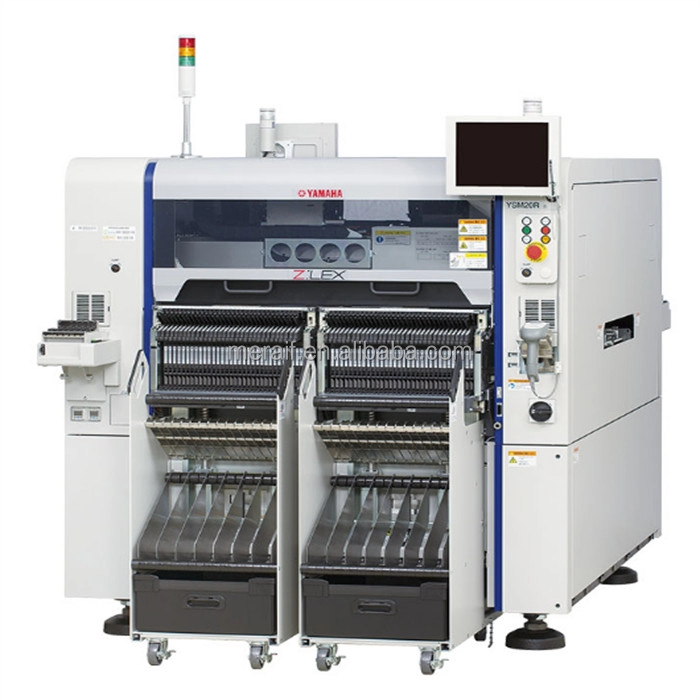

PCB chip mounter machine picture show

Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine
