Yamaha YC8 Pick and Place Machine yamaha Surface Mounter used smt machine
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
yamaha Surface Mounter Features
| Model name | YC8 |
| Applicable PCB | L50×W50 mm to L330×W360 mm |
| Mounting accuracy | Absolute accuracy (?+3?): ±0.05 mm/QFP |
| Repeatability (3?): ±0.03 mm/QFP |
| Mounting capability | 2.5sec/chip |
| Mountable components | Component size: 4 mm×4 mm to 100 mm×100 mm
(Some sizes bigger than 45 mm × 45 mm with conditions)
Component height: Maximum of 45 mm |
| Maximum transportable mass | 1 kg |
| Component supply/Number of component types | Tape reel: 28 types (Max., 8 mm tape reel conversion)
Stick
Trays: Capacity for up to 15 trays |
| Power supply | 3-phase AC 200/208/220/240/380/400/416V±10% |
| Air supply | 0.45MPa or more |
| External dimensions
(excluding protrusions) | L880×W1,440×H1,445 mm (Main body)
L880×W1,765×H1,500 mm (when equipped with ATS15) |
| Weight | Approx. 1,000 kg |
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT

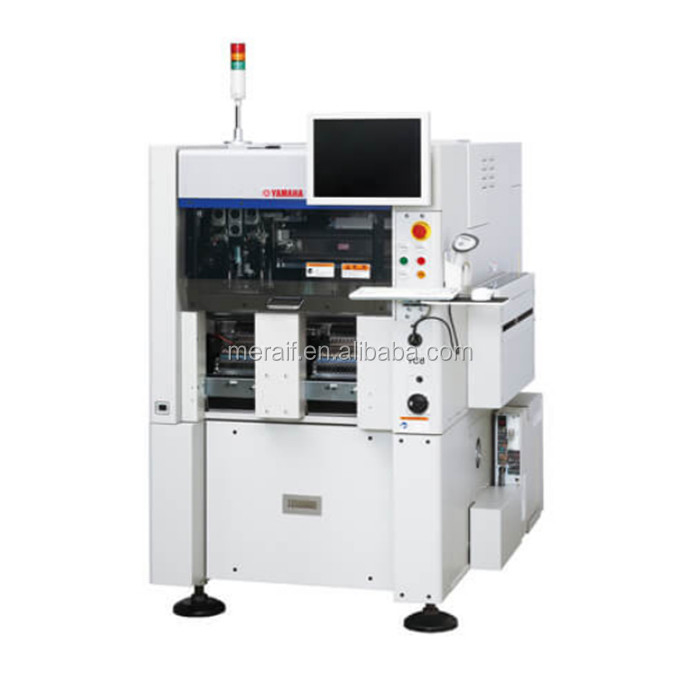

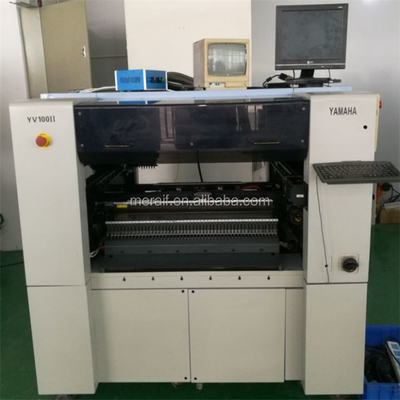

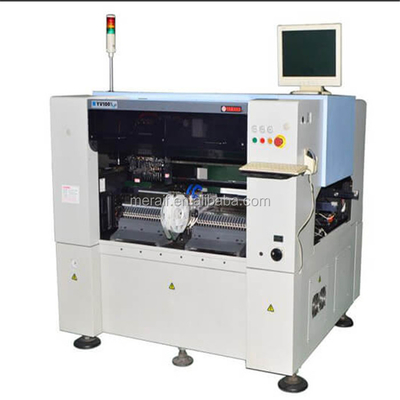

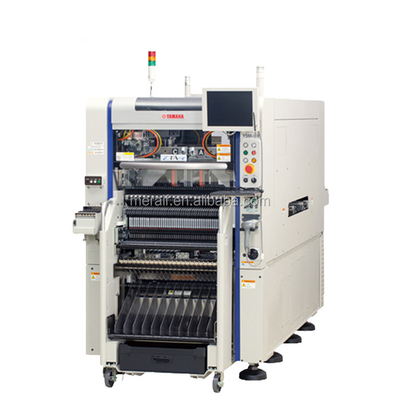

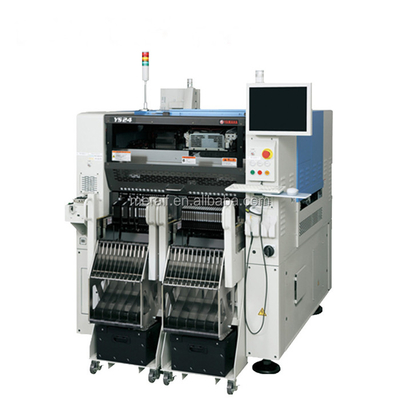

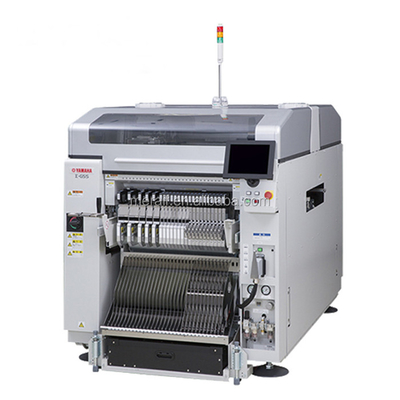

yamaha Surface Mounter picture show
