Yamaha S20 MID 3D placement machine SMT chip mounter machine S20 MID
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
SMT chip mounter machine S20 MID Features
PCB size: 1240mm x 510mm
The smallest component: 0201 (0.25x0.125mm) -120mm
Feida stations: 180
Mounting speed: 50000CPH
Product overview: YAMAHA/Yamaha S20 MID three-dimensional placement machine, PCB size: 1240mm x 510mm, minimum component: 0201 (0.25x0.125mm)-120mm, feeder stations: 180, placement speed: 50000CPH
SMT chip mounter machine main feature:
1. Realize the 3D MID (Molded Interconnect Device) process. The new frame and inclined structure can carry out three-dimensional assembly of uneven surfaces, inclined surfaces and curved surfaces, helping customers to achieve a leap from flat panel assembly to three-dimensional assembly, and reduce assembly costs.
2. It realizes the mixed function combination of spot solder paste/red glue/patch/plug-in functions, and can be easily switched. The non-contact dispensing head can spot solder paste on the cavity substrate to realize the three-dimensional assembly of uneven surfaces.
3. Perform optical inspection on the solder paste and glue and the mounted components. The newly developed color mark recognition camera can also perform stable optical inspection on the solder paste/glue shape and the patch effect through the new lighting system (to achieve AOI +SPI function)
4, 2 types of head structures are available, 6 placement heads, 6 rotation axis types, and 12 placement heads, 2 rotation axis types.
5. Super large substrate assembly capacity, the substrate can reach 1825mmx 635mm (optional) without segmentation, the ability to pass the board at one time is 1240mm x 510mm
6. Ultra-wide range of components, from ultra-small 0201 (0.25x0.125mm) chips to 120mm large components can be processed, and the mounting height reaches 35mm, making it easy to mount ultra-high components.
7. Super large feeding capacity. The 8mm feeding port of S20 reaches 4*45=180 types, the 8mm feeding port of S10 reaches 2*45=90 types, and the waffle tray feeding 36 types can realize non-stop refueling.
8. Motor material gun and refueling cart can be interchanged with M10/M20.
MID is the abbreviation of "Molded Interconnect Device" in English. The goal of 3D-MID technology is to combine electrical and mechanical functions in a single structural unit. The circuit is integrated on the shell to replace the traditional printed circuit board, thereby effectively reducing the weight and assembly space.
The three-dimensional circuit carrier is injection molded from modified plastic. The modified plastic surface can be activated by laser irradiation to form a circuit pattern. The activated area can be metalized by electroless plating to form a conductive circuit.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT

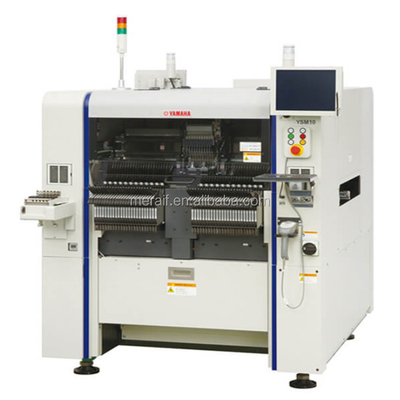

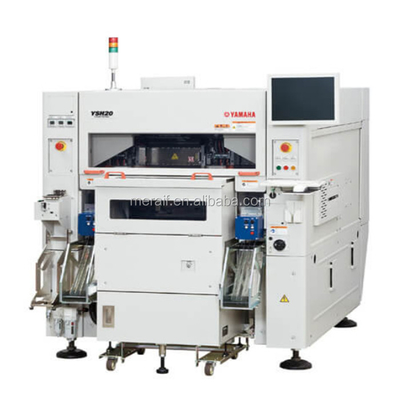

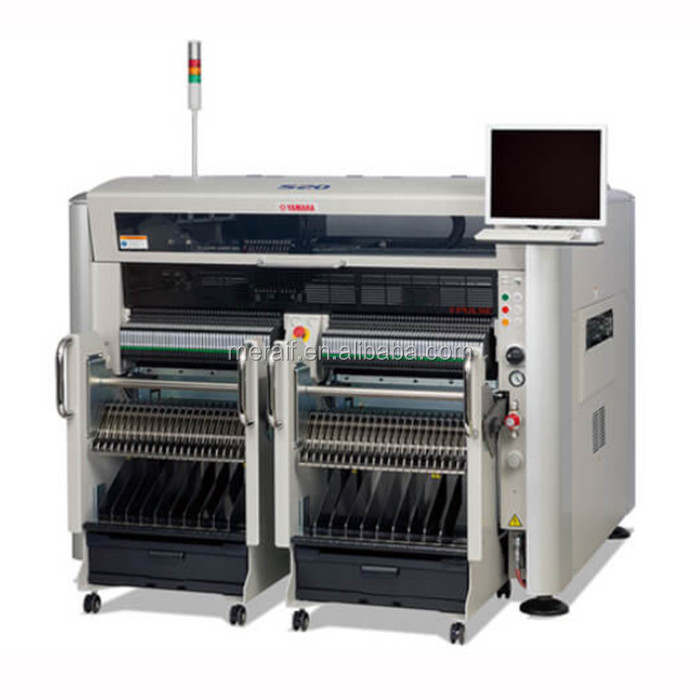

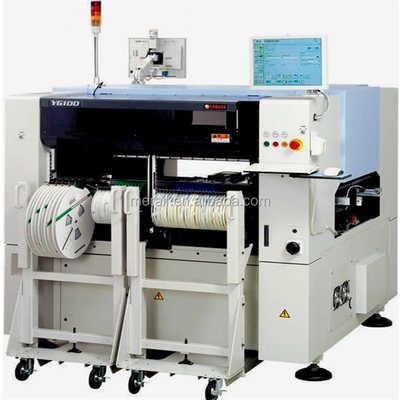

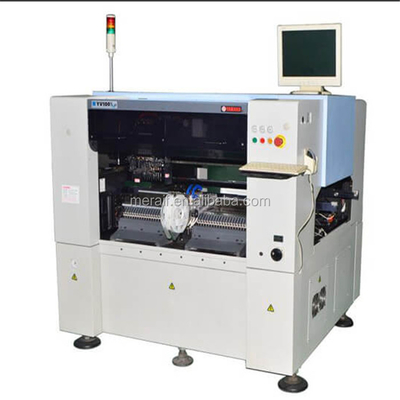

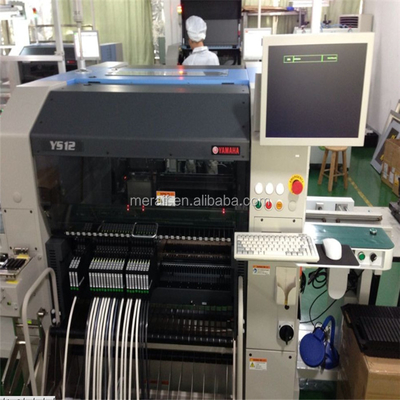

SMT chip mounter machine picture show
