DECAN L2 advanced multi-functional placer
Hanwha L2 is a wide range flexible SMT Machine.
Wide placement range from 01005 to 52mm square components with an accuracy of ±30um (IC, Stage Vision)
Large board handling of up to 1200mm x 460mm!!
The DECAN L2 is a fantastic all round Flexible Mounter with large capability and speed too by utlising 6 heads per gantry(Dual Gantry) by non-stop flying vision.
As well as it's wide component range, the L2 also has the built in capability of placing and analysing LED Lenses used in LED Bar production.
DECAN L2 advanced multi-functional placer Features:
- Fast Electric Feeders which automatically adjust their pocket positions for ultimate synchronised picking
- Front and back operation as standard
- Large PCB Size of up to 1200mm x 460mm
- 01005 component recognition as standard
- 120 x 8mm Feeder Capacity
- High Accuracy
- Small Footprint of just 1430mm x 1740mm x 1485mm
- 5KVA Max Power

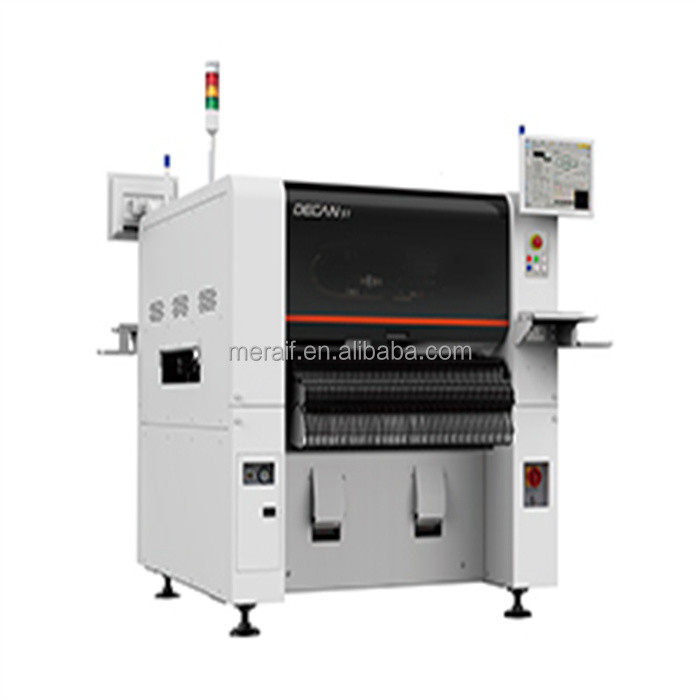

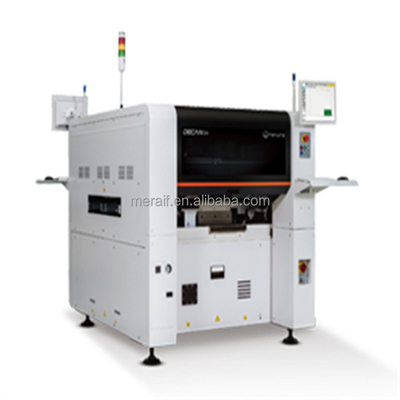

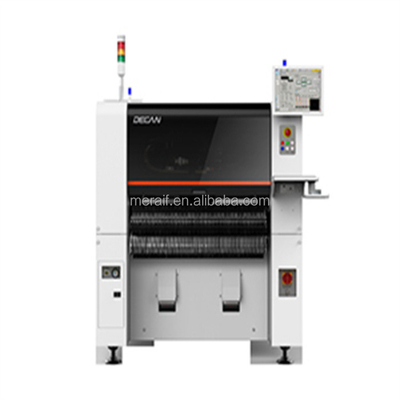

DECAN L2 advanced multi-functional placer picture show
