Panasonic NPM-D3 Modular SMT Placement 2021 year pick and place machine for SMT production line PCB assembly line
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Panasonic NPM-D3 Modular Specification:
| item | value |
| Condition | New |
| Place of Origin | Japan |
| Model Number | NPM-D3 |
| Warranty | 1 YEAR |
| Name | pick and place machine NPM D3 |
| Head Design Options | In-line array of 16-, 12-, 8-, 3-, or 2-nozzle heads |
| Process Head Options | Dual-syringe Dispense, 2D AOI/SPI (High/Low Res) |
| Component Alignment | Multi-Recognition Digital Camera |
| Board Dimensions (Single Lane) | 510x590mm (Std) |
| Board Dimensions (Dual Lane) | 510x300mm (Std) 650x300mm (Opt) |
| Mounting speed (ideal) | Up to 84,000 cph |
| Mounting speed (IPC9850) | 63,300 cph (1608C) |
| Placement accuracy | ±25 microns Cpk ≥1.0 |
| Component Range(Min) | 03015mm microchip |
| Component Range(Max) | 100x90mm (3.9x3.5") |
| Component Range(Height) | 40mm (1.57") |
| Feeder Capacity | 68 Reels |
| Feeder Capacity | 20 Trays |
| Dimension | W 832 x L 2,652 x H 1,444mm |
| Weight | 1,900kg (Body + 2 Carts) |
that in the process in motion More stable XY-axis motion using a high-speed low-vibration design.
linear motor with a new cooling design, in the case of high-speed movement more quickly than other devices using linear motors Efficient cooling, ensure that the operation efficiency of the motor, increase its life.7 kinds of rack can correspond from 8mm - 104mm all current industry best rack universal applicability widest taping element is Pan equipment. And the new addition of 8mm single rack according to customer demand. rack switching operation, the overall exchange trolley design, the overall design of the support pin exchange etc. can greatly improve the operation efficiency of equipment and aircraft.
The evolutionary Panasonic NPM-D3 continues in the steps of its award-winning predecessor with interchangeable dispensing, placement, and inspection heads; however, new enhancements further increase productivity. The NPM-D3 now handles a component range spanning 03015mm microchips to massive 100x90mm components up to 28mm tall, as well as Package on Package applications.
A new base frame, redesigned placement head, and Multi Recognition Camera improve placement accuracy by 25%, while boosting IPC-9850 throughput 30% to an industry-leading 38,078 CPH per square meter. The new Multi Recognition Camera provides component alignment, defect inspection, chip thickness, and 3D coplanarity inspection in a single pass, which helps ensure high productivity and quality control.
With its advanced board handling design, the NPM-D3 maximizes area productivity. In single lane mode, the NPM-D3 handles 750mm long boards ideal for LED panels. With a simple software switch, the NPM-D3 automatically converts to dual lane “shared” or “independent” mode. For the highest efficiency, the NPM-D3 offers auto board support, feeder cart hot-swap, intelligent feeder anywhere, and 2D-coded nozzle anywhere for changeover without disrupting production. The NPM-D3 enhances product quality with thermal compensation, board warp mapping, a 20-tray direct tray cart, complete component monitoring, and material verification and control.
As always, manufacturers can scale NPM production lines to meet production needs while conserving investments until production or technology requirements mandate. OEMs and EMS providers can reconfigure the machine heads in approximately 15 minutes—maximizing flexibility, minimizing ROI, and protecting assets. The NPM-D3 also incorporates existing feeders, carts, and nozzles to minimize investment and inventory expenses.
Other members of the NPM line include the NPM-W2 for high mix volume applications and the twin tray NPM-TT2.
Panasonic NPM-D3 Modular Features & Benefits
Plus new enhancements:
Compact footprint - scale production to your factory needs
Quick-change feeder carts, nozzle banks, and process heads
Compatible with CM- & AM-series intelligent feeders & nozzles
Board warp detection, Adaptive Process Control (APC), and Auto Board Support Pin
Industry's first 3D Multi Recognition Camera
Lightweight 16-nozzle head (for 84,000 CPH)
Increased placement accuracy to 25um (cpk ≥1.0)
Successful Experience:
Meraif's Customer In 35 Countries Around the World
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT

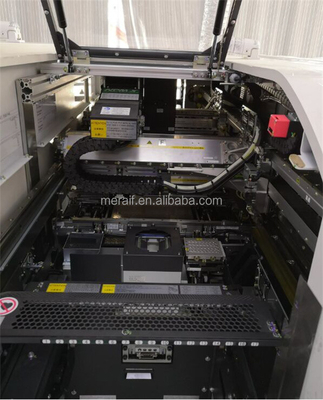

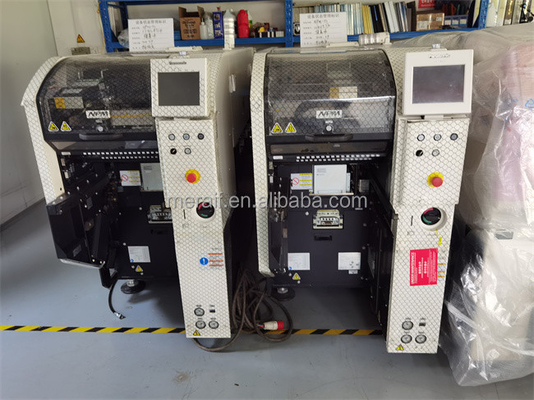

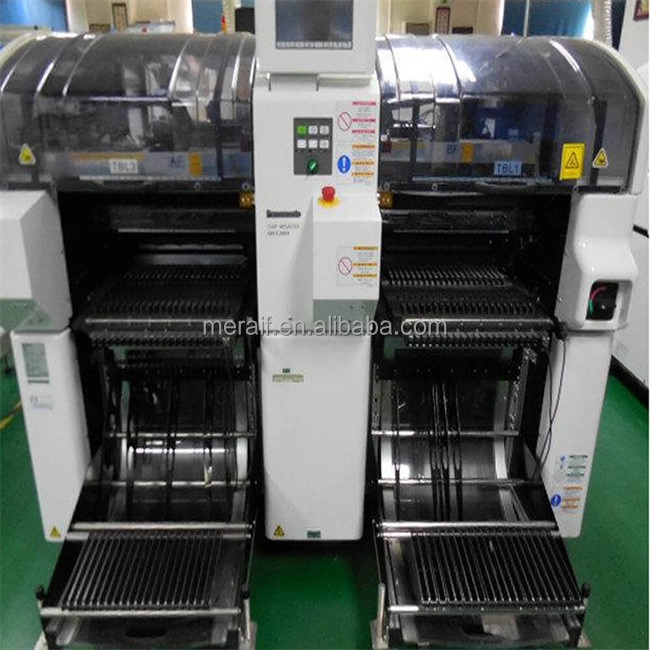

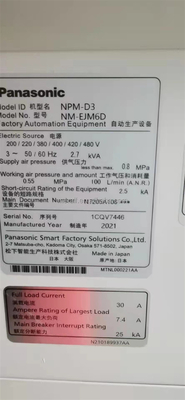

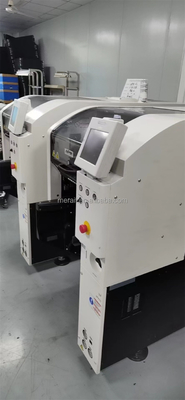

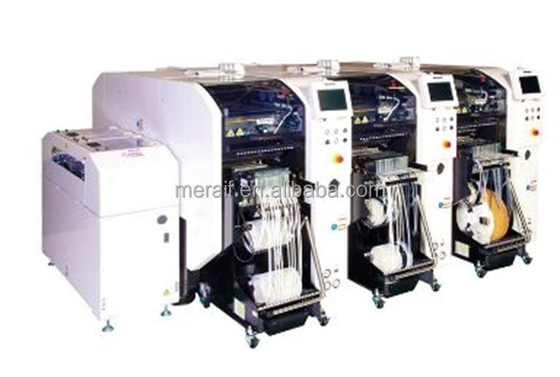

Panasonic NPM-D3 Modular picture show
