Yamaha sigma-F8S surface Mounter
1) Improved productivity and accuracy due to revised XY axis design
Introduction of leading-edge control technology together with the adoption of an off-set type linear motor through a logic-based design revision of the XY drive axes. The supporting beam of the head has been made more lightweight and with reduced vibration. Because of this, the effective tact delivers a 5% productivity improvement on average over existing models. At the same time, mounting accuracy of ± 25um (3sigma), which corresponds to handling the extremely small-sized 0201 chip components, has also been achieved.
2) Compatibility with Current sigma Series Model
Compatibility of the main options with the current model ?-F8 has been maintained, including with the head, nozzle, nozzle stocker, and tape feeder. This allows for users of the current ? series to continue to use their specialized equipment as they implement this new equipment hassle free.
Z:LEX YSM20W New Model Features
1) Outstanding versatility thanks to industry top level PCB adaptability
Handles a maximum PCB width of up to 356 mm where the same width PCB is being conveyed at the front and rear while in dual-lane specification mode. In this case, the head will continue to function without front or rear head strike for up to a maximum PCB width of 324 mm achieving high-efficiency implementation without loss.
In single-lane specification mode, PCBs can be conveyed at up to a maximum length of 810 mm, maximum width 742 mm, a conveyable weight of up to 10 kg, and a thickness of up to 8 mm. This new model is also compatible with a wide range of extra-large-sized PCB's and jig conveyance etc., including for automotive products, industrial, medical, power devices, and LED lighting.
Yamaha sigma-F8S surface Mounter details:
| Model | sigma-F8S |
| Applicable PCB
Dimensions | Single lane | L 330 x W 250 mm - L 50 x W 50 mm
(Option: L 381x W 510 mm - L 50 x W 50 mm) |
| Dual-lane | L 330 x W 250 mm - L 50 x W 50 mm |
| Applicable Components | High-speed head: 0201 - 4.3 x 3.4 mm
(Height 2.0 mm or less) |
| High-speed Multi-Purpose head 03015- 33 mm
(Height 12.7 mm or less) |
| Mounting capability
(The Company's optimum
conditions) | High-speed head x 4 Spec:
150,000 CPH (Dual-lane)
136,000 CPH (Single lane) |
| Mounting accuracy
*In the Company's optimum
conditions
(standard material used for
evaluation) | High-speed Head:
0201/03015: ±25um (3sigma) (140,000CPH)
0402/0603: ±36um ( 3sigma) (150,000CPH) |
| Number of component types | Max 80 types (8 mm width tape conversion) |
| Power supply | Three-phase AC 200±10% 50/60 Hz |
| Air supply | 0.45 MPa or more, clean and dry state |
| External dimensions
(not including projected parts) | L 1,280 x W 2,240 x H 1,450 mm |
| Weight | Approx. 1,940 kg (Not including cart) |

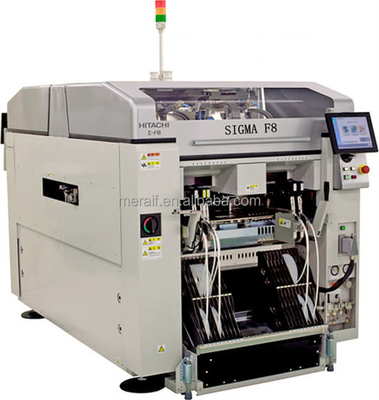

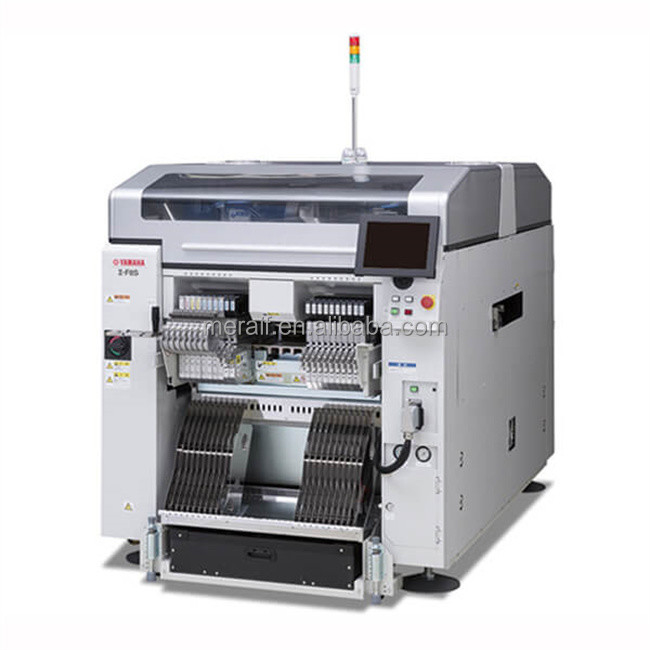

Yamaha sigma-F8S surface Mounter picture show
