CM301-D Pick and Place Machine Specification:
Panasonic CM301-D
PCB size:330mm X 460mm
1580 (L) X wide 1585 (D) X high 1450 (H) mm
weight: about 1800KG
Product description: Panasonic CM301-D Pick and Place Machine, PCB size:330mm X 460mm, weight: about 1800KG, dimension: 1580 (L) X wide 1585 (D) X high 1450 (H) mm
CM301-D Pick and Place Machine Advantage:
Panasonic CM301-D Feature and parameter
Placement speed: 0.25s/chip, 0.6s/QFP
Substrate size (mm) 50mm X:L W 50mm to L 330mm X W 460mm
Time of import and export: 2.0S (board recognition Without),
5.5s (board recognition With)
Patch range: 0603 ~ X (L) 90mm 100mm (W) 21mm X () (T) (max.) () ()
Power supply: P/200V + 10V/3KVa
Air source: 300l/min, [Normal] 490kPa
Overall size: (mm) long 1580 (L) X wide 1585 (D) X high 1450 (H) mm
This machine weight: about 1800KG
Air supply: 300L/min

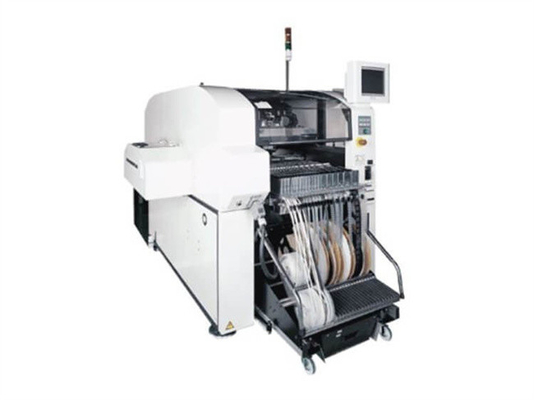

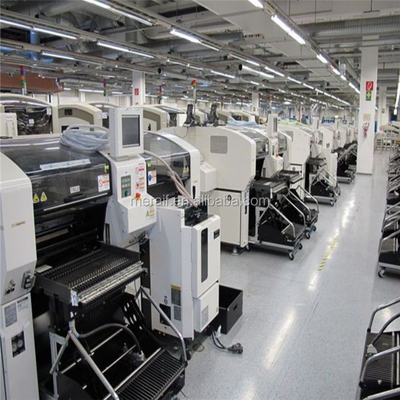

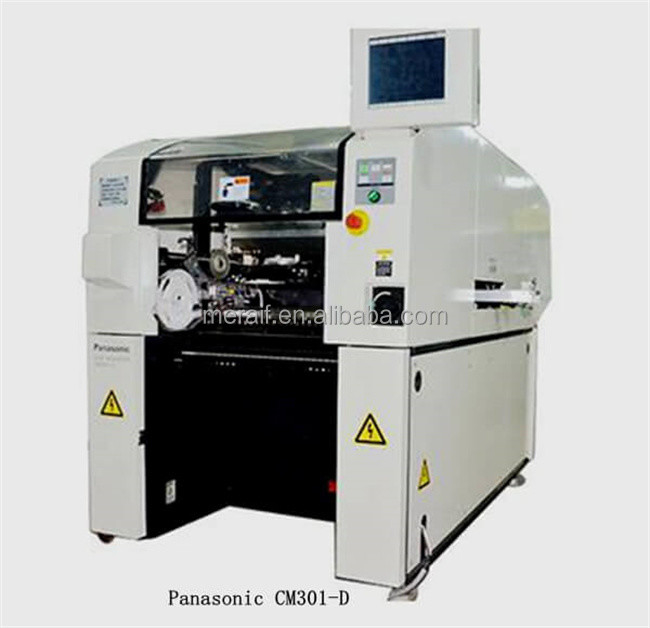

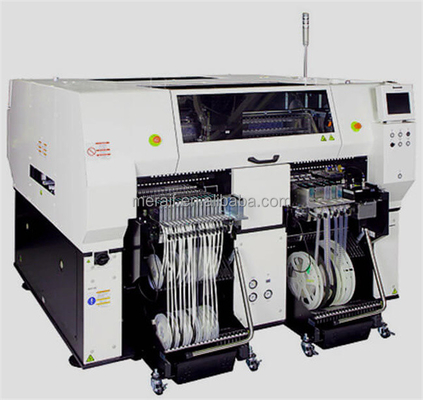

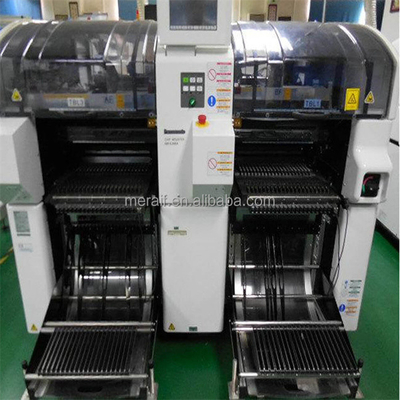

Feeder specifications: 8~56mm CM301-D Pick and Place Machine picture show:
