pick and place machine AM100 Specification:
The AM100 maintains the high standards for capability, flexibility, and reliability customers expect from Panasonic in a cost-effective, incrementally scalable, high-mix SMT solution.
Only one machine is required to get production started and it's easy to add more units and/or technologies as demands change.
You'll have the flexibility to prepare the next product while production is running on the AM100 for non-stop changeover and put to use a variety of highly flexible configurations and component supply types.
Flexible setup is further enhanced in the AM100 by Feeder Anywhere and Nozzle Anywhere features.
Large boards can be processed and advanced features including a component thickness camera, auto support pin exchange, PCB warpage detection, and tray verification are also available.
KEY FEATURES Single head (single beam) capable of placing an impressive component array including: 0402mm to 120x90x28mm Capable of placing large connectors, odd-shaped components, and advanced packaging types such as PoP Interchangeable feeders, multi-functional nozzles, and chucks with the CM and NPM series Cost-effective and high quality production
PCB Dimensions (mm) - L 50 × W 50 to L 510 × W 460
Placement Speed - 35,800 cph (0.1006 s/chip), 12,200 cph (0.295 s/QFP 12 mm or less)
Placement Accuracy (Cpk1) - ±40 µm/chip ±50 µm/QFP 12 mm or less ±30 µm/QFP 12 mm over to 32 mm or less
Component Supply: Taping * - (Tape : 4 / 8 mm tape (small reel) ) Tape feeder specification : Max. 160
Tray feeder specification : Max. 120 [*1] Component Supply: Stick * - Tape feeder specification : Max. 40 Tray feeder specification : Max. 30 [*1] Component Supply: Tray * - Tray feeder specification: Max. 20

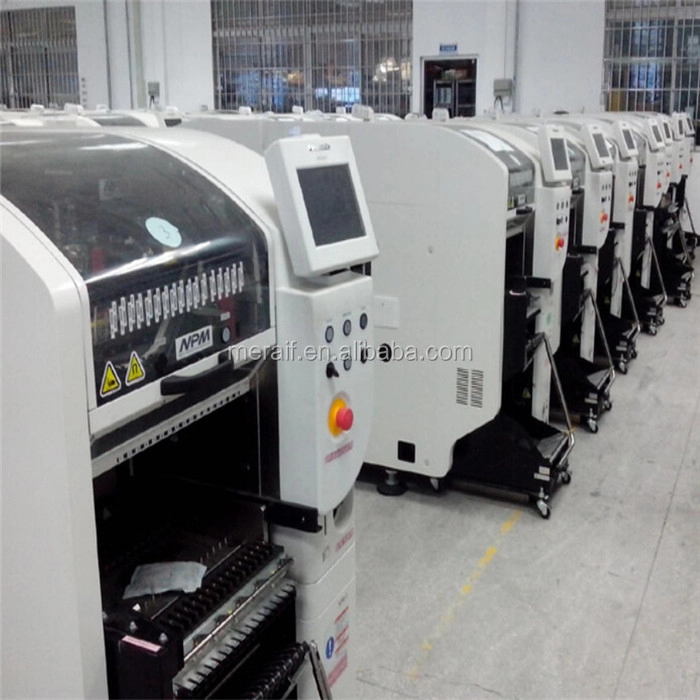

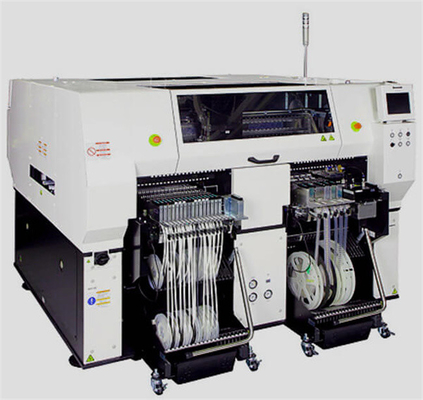

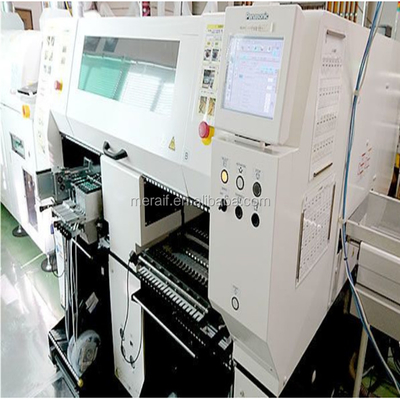

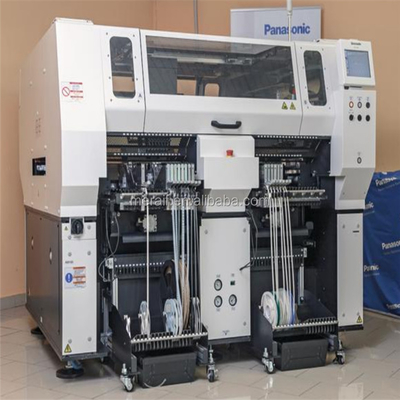

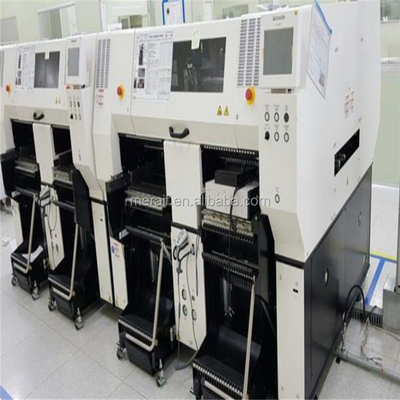

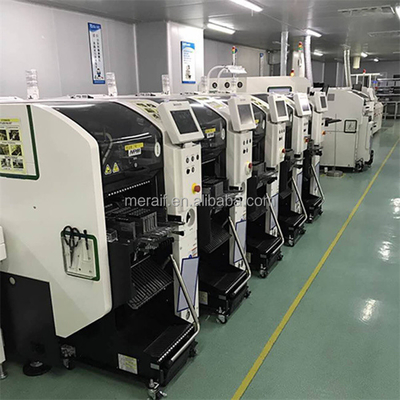

pick and place machine AM100 picture show:
