JUKI KE2070 Pick and Place Machine SMT Chip Mounter Chip Shooter
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
J
SMT Chip Mounter KE 2070 details:
With the addition of the optional MNVC, the component range can be increased even more for greater flexibility.
- Chip
23,300CPH(laser centering/Optimum)(0.155Sec./chip)
18,300CPH(laser centering/IPC 9850) - IC
4,600CPH (vision centering with optional MNVC) - One multi-nozzle laser head (6 nozzles)
- From 0402 (01005) to 33.5mm square components
- Vision centering system (optional, featuring bottom, side, and back lighting, all ball recognition)
1 Actual throughput may vary.
2 Please download brochure for details.
| Board size | M size (330×250mm) | |
| L size (410×360mm) | |
| L-Wide size(510×360mm) (option) | |
| E size (510×460mm)*1 | |
| Component size | Laser recognition | 0402 (01005) ~33.5mm |
| Vision recognition | Standard camera | 3mm*2 ~33.5mm |
| High-resolution camera (option) | 1.0×0.5mm*3 ~20mm |
| Placement speed | Chip | Optimum | 0.155Sec./chip(23,300CPH) |
| IPC9850 | 18,300CPH |
| IC*4 | 4,600CPH*5 |
| Placement accuracy | Laser recognition | ±0.05mm(Cpk more than 1) |
| Vision recognition | ±0.04mm |
| Feeder inputs | Max. 80 on 8mm T/F*6 |

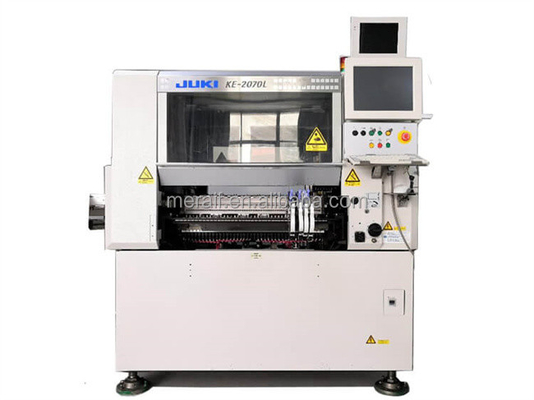

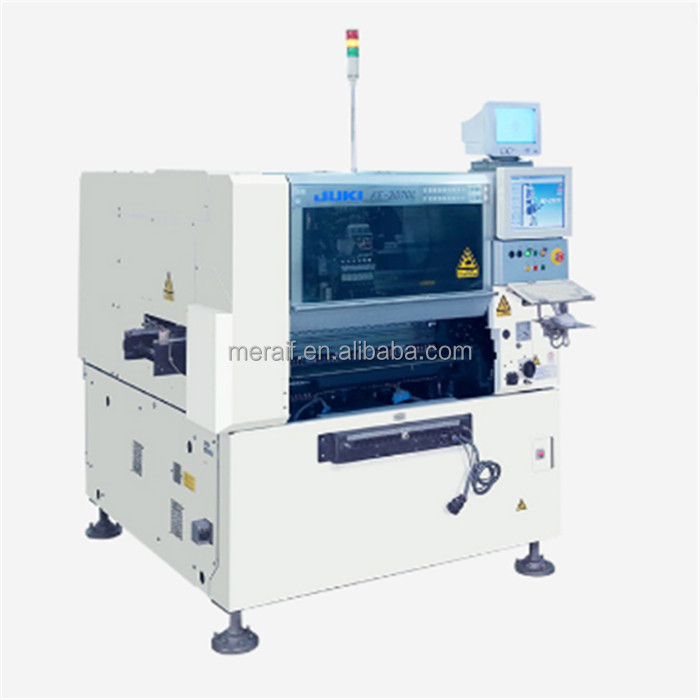

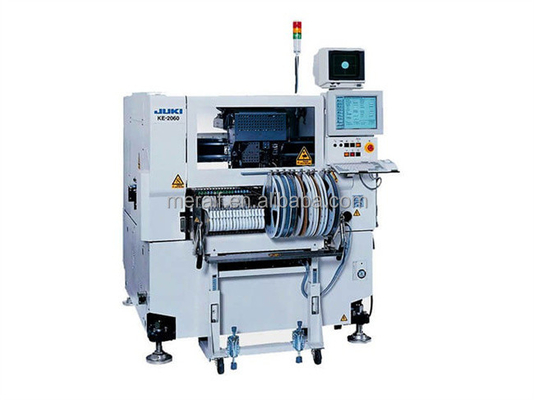

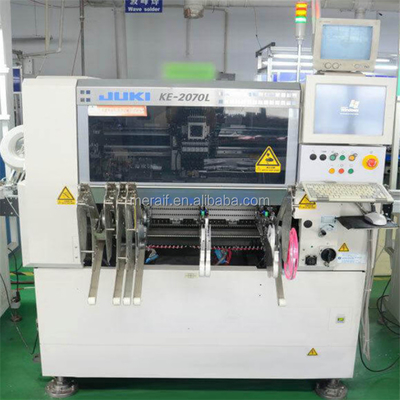

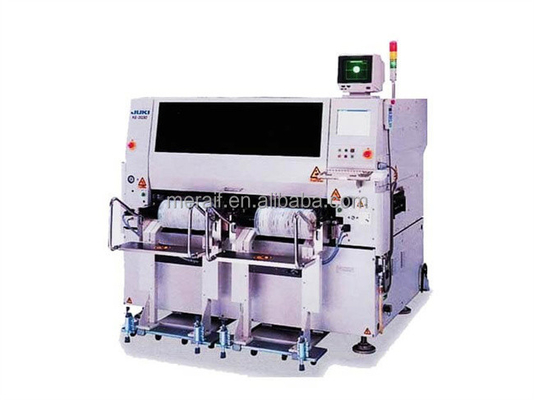

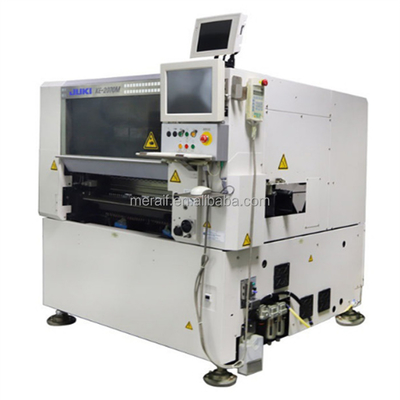

SMT Chip Mounter picture show:
