Yamaha led bulb assembly machine 72000cph High Speed SMT Pick And Place Machine YS24X for LED Bulb Tube Production
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
SMT Pick And Place Machine YS24X Specification:
| Yamaha YS24 parameters |
| Small ultra high speed modular placement machine YS24 |
| Top-level placement capability in a universal placement machine 72,000 CPH (0.05 sec/CHIP) |
| The maximum number of feeders that can be installed (8mm tape reel) 120 kinds |
| World's top area productivity 34kcph/m2 |
| Supportable components 0402~32×32mm |
| Dimensions: L1, 254 × W1, 687 × H1, 445mm; L1, 544 (lengthened conveyor end) × W1, 687 × H1, 445mm |
| Weight: about 1,700kg |
| |
| Yamaha YS24X parameters |
| Top-level placement capability in a universal placement machine 54,000 CPH (0.067 sec/CHIP) |
| The maximum number of feeders that can be installed (8mm tape reel) is 96 (62 types with sATSII) |
| Supports automatic replacement tray feeder (30 types of JEDEC trays) sATSII |
| Supportable components, height 0402~45×100mm, H15mm |
| Dimensions: L1, 254 × W1, 687 × H1, 445mm; host only; L1, 544 (longer conveyor end) × W2, 020 × H1, 545mm |
| Weight: about 1,700kg (host only); about 1,890kg (when equipped with sATSII) |
· 54,000CPH (0.067sec/CHIP) The top mounting capability in multi-purpose mounters
· SATSⅡ Automatic Tray Supply Unit applicable
· L700 x W460mm Super large PCB applicable
· YAMAHA Dual Lane System applicable
· 0402 to 45 x 100mm Components applicable
· H15mm Height applicable

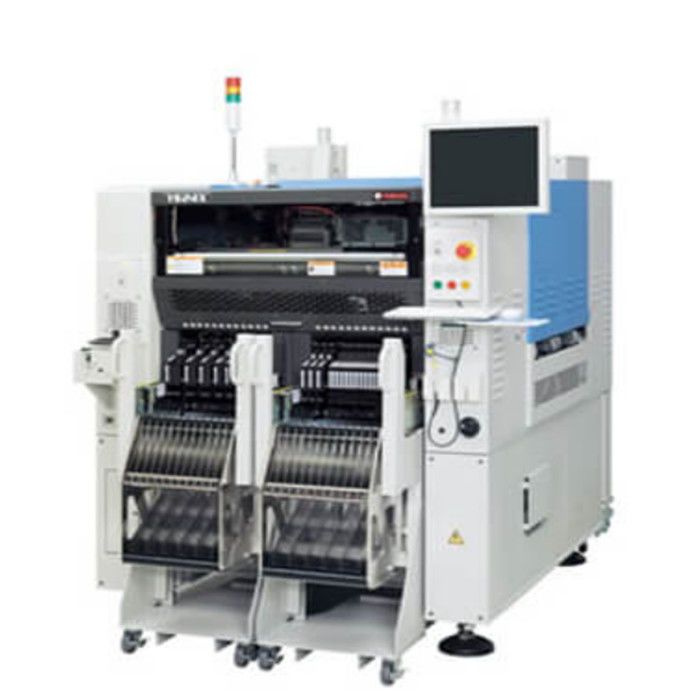

SMT Pick And Place Machine YS24X picture show:
