    Product Details:

    Place of Origin: CHINA
    Brand Name: Professional Smt Manufacturing Line For Led Bulb Tube Strip Manufacturing smt soldering machine pick and place machine line
    Certification: CE
    Model Number: Professional Smt Manufacturing Line For Led Bulb Tube Strip Manufacturing smt soldering machine pick and place machine line

    Payment & Shipping Terms:

    Minimum Order Quantity: smt pick and place machine 1 set
    Price: 30000-50000usd/set
    Packaging Details: packing with wooden case
    Delivery Time: within 15 days after payment
    Payment Terms: TT,western union,paypal and so on
    Supply Ability: 300 sets per month
    Usage: smt electronice factory
    Theory: smt pick and place machine
    Contact Now
    Detailed Product Description
    Brand Name:: Professional Smt Manufacturing Line For Led Bulb Tube Strip Manufacturing Smt Soldering Machine Pick And Place Machine Line Skype: Sensenhenhao
    Whastapp/wechat: +8613424013606 Website: Www.wickonsmt.com
    Application: SMT Assembly Production Line Power Supply: AC220V 50Hz / AC110V
    Film Materials: Privacy Material Usage: SMD LED SMT
    Applicable Components::: 0402~5050

    Professional Smt Manufacturing Line For Led Bulb Tube Strip Manufacturing smt soldering machine pick and place machine line



    WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

    Also can support some original parts of machine repair.



    Smt Manufacturing Line For Led Bulb Specifications:

    Model 20
    Placement Speed 52000CPH
    Placement Accuracy ±0.05mm
    Machine Size(L×W×H) 1790×1370×1500mm
    Machine Weight 1500kg
    Dimension of PCB 60×65~400×350mm
    The thickness of PCB 0.5-4mm
    Feeder lanes 48
    Mounting Head Number 20
    The Range of Components 0402(electric feeder)~20×20mm IC(SOT,SOP,QFP ect)
    Position Way Image recognition+Algorithm Compensation
    Picking Way Picking at the same time
    Electronic Parameter Simple -Phase 220V AC 50HZ3.5KVA
    Air Source Requirement Dry air 0.45Mpa~0.6Mpa 200L/min

    Smt Manufacturing Line For Led Bulb Functions:

    1.Two heads stick parts and two transmission system in turn incessantly to make the efficiency is higher.

    2.Optical image recognition, adjusting the components on the flying process, identifying the mark Automatically; patent- Mathematical operation model, accurate posting.

    3.Digital test pressure, automatically process and alarm when it didn't pick the components successfully

    4.Three-sector on transmission system, reduce the time for delivering the boards

    5.Fitted with 48 feeder lanes

    6.All of the motors are Japanese Brand, the spindle is Panasonic A5 servo motor

    7.Fixed cameras use high-pixel and high-definition industrial cameras which imported from Germany.

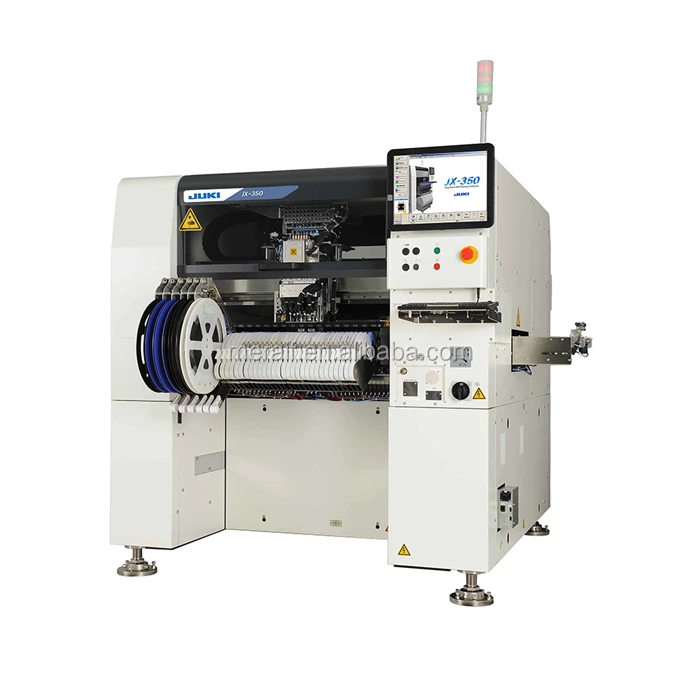

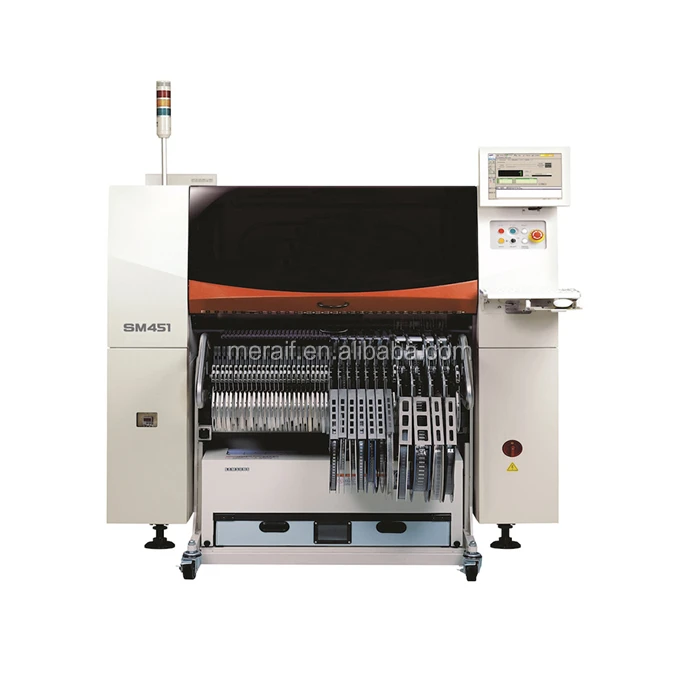

    Smt Manufacturing Line For Led Bulb picture show:

    Professional Smt Manufacturing Line For Led Bulb Tube Strip Manufacturing smt soldering machine pick and place machine lineProfessional Smt Manufacturing Line For Led Bulb Tube Strip Manufacturing smt soldering machine pick and place machine lineProfessional Smt Manufacturing Line For Led Bulb Tube Strip Manufacturing smt soldering machine pick and place machine lineProfessional Smt Manufacturing Line For Led Bulb Tube Strip Manufacturing smt soldering machine pick and place machine lineProfessional Smt Manufacturing Line For Led Bulb Tube Strip Manufacturing smt soldering machine pick and place machine lineProfessional Smt Manufacturing Line For Led Bulb Tube Strip Manufacturing smt soldering machine pick and place machine line
