    Product Details:

    Brand Name: KIC slim 2000 thermal profile
    Model Number: KIC reflow oven profiler

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set KIC SLIM 2000 IS OK
    Price: 2000-2500usd per set

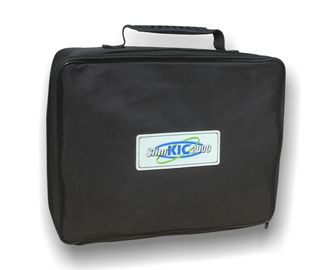

    Packaging Details: KIC slim 2000 packing with box
    Delivery Time: 5 days after payment
    Supply Ability: 100 set per month
    Contact Now
    Detailed Product Description
    Item: KIC SLIM 2000 Thermal Profile Packing: Packing With Bag
    Delivery: Within 5 Days After Payment Skype: Sensenhenhao
    Whatsapp: +8613424013606 Email: Joy@wickon.net
    Web: Www.wickonsmt.com Channel: Kic Slim 2000 9 Channels

    SMT reflow oven tracker KIC 2000 slim thermal profilling ,temperature checker KIC 2000 profiler

    skype:sensenhenhao,whatsapp/wechat:+8613424013606

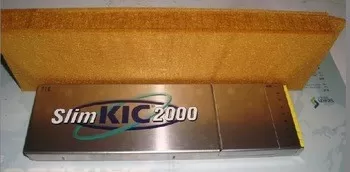

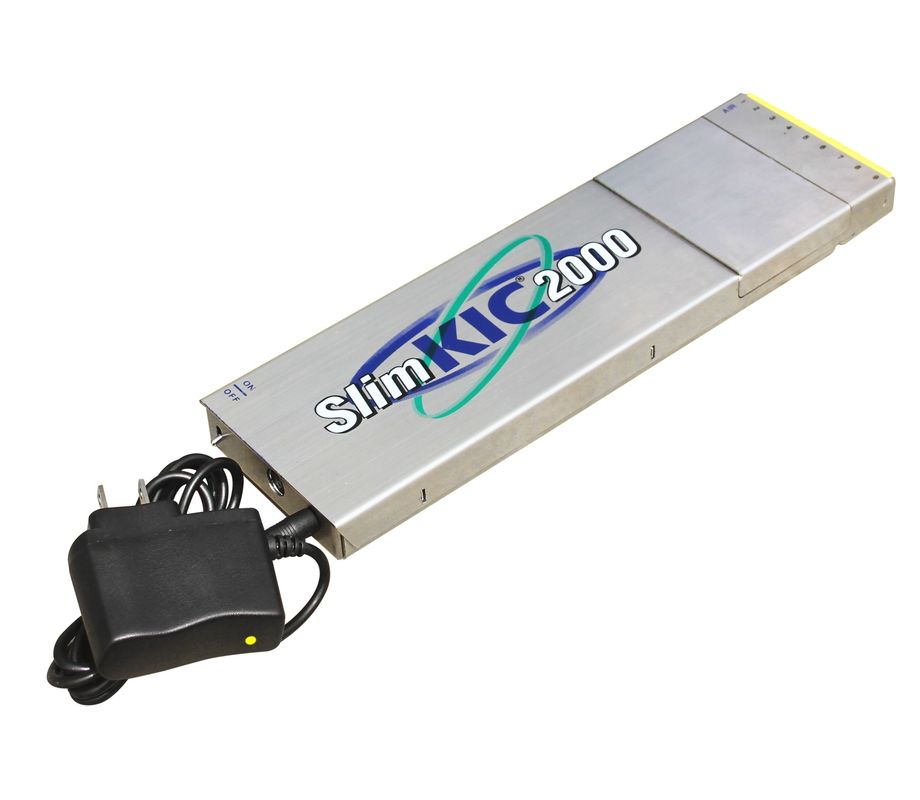

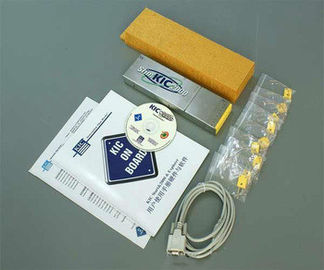

    Slim Kit KIC 2000 Profiler



    By automating the complex task of process set up the SlimKIC®2000™ makes profiling so easy that any operator can quickly achieve the optimal process. Simply select from a built-in library containing hundreds of commonly used solder paste specifications. The software uses the paste supplier's thermal profile specs to automatically define the process window. Color-coded signlas alert the operator to any out-of-specification conditions.

    The SlimKIC 2000 simplifies profiling by reducing the process to a single number -- the Process Window Index™ (PWI) -- so you know precisely how good your profile is. The simplified user interface guides the operator through the profiling process, minimizing the potential for improper oven set up and yield-reducing defects.



    The Process Window Index

    Slim Kit KIC 2000 Profiler

    SMT reflow oven tracker KIC 2000 slim thermal profilling ,temperature checker KIC 2000 profilerSMT reflow oven tracker KIC 2000 slim thermal profilling ,temperature checker KIC 2000 profilerSMT reflow oven tracker KIC 2000 slim thermal profilling ,temperature checker KIC 2000 profilerSMT reflow oven tracker KIC 2000 slim thermal profilling ,temperature checker KIC 2000 profilerSMT reflow oven tracker KIC 2000 slim thermal profilling ,temperature checker KIC 2000 profilerSMT reflow oven tracker KIC 2000 slim thermal profilling ,temperature checker KIC 2000 profilerSMT reflow oven tracker KIC 2000 slim thermal profilling ,temperature checker KIC 2000 profilerSMT reflow oven tracker KIC 2000 slim thermal profilling ,temperature checker KIC 2000 profilerSMT reflow oven tracker KIC 2000 slim thermal profilling ,temperature checker KIC 2000 profiler

    Profiling Reduced to a Single Number

    For precise ranking of profile performance, the KIC software uses the Process Window Index (PWI). The PWI measures the profile’s fit to the process window in a mathematical and objective manner by using a single number. This aids in optimizing the process by comparing and ranking alternative profiles in terms of their fit to the available process window. The lower the PWI, the more efficient and stable the process!



    Technical Specifications

    Accuracy: ±1.2C
    Resolution: Variable 0.3C to 0.1C
    Internal Operating Temp: 0C to 105C
    Thermocouple Compatibility: Type K, 9 or 12
    Temperature Range: -150C to 1050C
    Computer Capability: PC
    Power Requirements: 9V alkaline battery
    Thermal Receiver: 433.92 MHz
    Dimensions: See Temperature Tolerance Chart below for specifications

    Datalogger Model: data is downloaded to the computer through a cable after the run. Dual Unit Model: data is sent to the computer in real-time during the run. It is also stored internally for high-speed download after the run.



    Temperature Tolerance Chart (maximum endurance in minutes at specified temperature)



    CONFIGURATION DIMENSIONS (mm) (Length x Width x Height) 150C 200C 250C 300C 350C 400C
    SlimKIC 2000, 9CH no shield 260.4 x 79.0 x 19.9 8.5 5.5 4.2 3.5
    SlimKIC 2000, 12CH no shield 260.4 x 99.4 x 19.9 8.5 5.5 4.2 3.5
    LowRider cover 260.4 x 76.2 x 19.9 13.9 8.3 5.5 4.7
    Thermal Shield 1/8” (3.2mm), 9CH 319.0 x 86.4 x 26.4 17.6 11.0 8.0 6.4
    Thermal Shield 1/8” (3.2mm), 12CH 319.0 x 108.0 x 26.4 17.6 11.0 8.0 6.4
    LowRider and Thermal Shield 1/8” (3.2mm) 323.9 x 86.4 x 26.4 22.6 15.1 10.7 8.7
    Thermal Shield 1/4” (6.4mm), 9CH 330.2 x 93.0 x 34.3 24.6 15.5 11.5 9.8
    Thermal Shield 1/4” (6.4mm), 12CH 330.2 x 115.6 x 34.3 24.6 15.5 11.5 9.8
    LowRider and Thermal Shield 1/4” (6.4mm) 330.2 x 95.3 x 34.3 30.7 22.6 16.4 12.2
    Long Duration Thermal Shield 381.0 x 139.7 x 76.2 62.8 42.2 33.1 29.7
    Lead-Free Thermal Shield, 9CH 348.0 x 93.0 x 30.0 18.6 12.7 10.7 9.1 7.9 7.6
    Lead-Free Thermal Shield, 12CH 348.0 x 114.0 x 30.0 18.6 12.7 10.7 9.1 7.9 7.6



    Computer Configuation

    Minimum System Requirements

    800 MHz Processor/ 256 MB RAM1

    2 GB available storage (for product history)

    Video 1024 x 768 resolution / 16-bit

    1 available USB port (for data download)

    1 available parallel port or USB port (for software key options)

    Microsoft® Windows® 2000, XP, Vista, or 7. (32-bit or 64-bit)
