Temperature Tracking Reflow Soldering Temperature Profil Kic Explorer Thermal Profiler
Compact - Powerful - Easy to Use

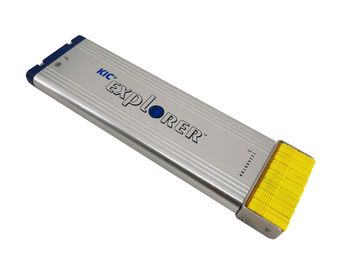

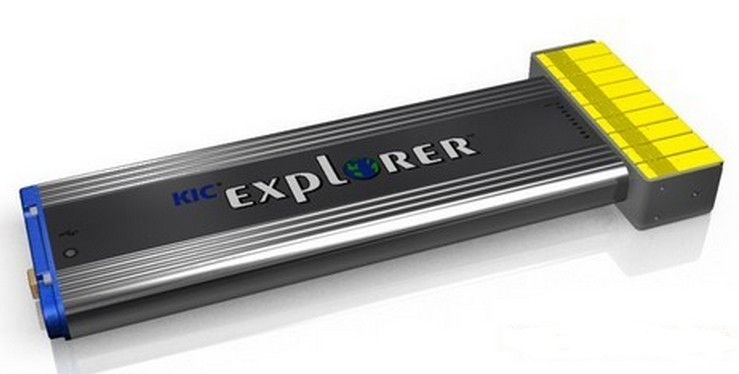

The KIC Explorer is a generation of thermal profilers that features an impressively compact design. It will easily move through the restrictive process dimensions encountered in today's thermal applications. The KIC Explorer incorporates state-of-the-art SMT technology and high-temperature rated components, backed by our distinguished reputation for reliability. You can depend on this rugged, innovative hardware to endure the harsh conditions of real-world factory use.
The KIC Explorer is available in 7, 9, and 12 channel versions using standard type K thermocouple connectors.
Acquiring more data in a small unit is only the beginning. The KIC Explorer's industry leading performance provides users better data acquisition performance to identify exactly what is going on with each thermal profile and process in the factory. Thermal profile data are conveniently transferred to your computer via a USB connection. The KIC RF version transfers the profile data in real time to the PC via wireless radio frequency transmitters. Standard AAA batteries power the KIC Explorer and you have the option of using rechargeable batteries if you prefer. The KIC Explorer offers you unmatched performance, flexibility and miniaturization in this new generation of thermal profilers.
2.Resolution: Variable 0.3C to 0.1C
3.Internal Operating Temp: 0C to 85C
4.Thermocouple Compatibility: 7, 9, 12-Channel, Type K, Standard
5.Temperature Range: -150C to 1050C
6.Power Requirements: Standard 9V alkaline battery
7. Data Points: 224,640
8.Dimensions: See Temperature Tolerance Chart below for specifications
9. Sample Rate: 0.1 to 10 per second
Datalogger Model: data is downloaded to the computer through a cable after the run.
Dual Unit Model:data is sent to the computer in real-time during the run. It is also stored internally for high-speed download after the run.
Minimum System Requirements
1.When KIC 2000 Software is running on the same computer as the Oven software, and/or when additional KIC 2000 Software options are installed, a faster CPU and more RAM may be required.
2.A USB to Serial Adapter may be required to connect the SlimKIC 2000 for profiling.
3.Contact KIC for issues with operating systems other than those listed.
400 MHz Processor, Celeron / 128 Mb RAM1
1 Gb available storage (for product history)
Video 1024 x 768 resolution / 16-bit
1 available serial port or USB port2
1 available parallel port or USB port for software key options
Microsoft® Windows® 2000 or XP3
3. Western union
Package and Delivery:
1. Standard wooden box package.
2. Delivery in 1 workday after receive payment.
3. Transport by DHL,FedEx, TNT, UPS, EMS or by air freight or sea freight.
Training: Life time free of training and maintenance.
Warranty: ONE years of free warranty. Lifetime warranty.
We offer three ways to training and warranty:
a. Welcome to visit our Shenzhen head office for training and warranty.
b. Overseas local office for training and warranty.
c. The third party offer training and warranty.
More details please contact with us.
Why choose us?
Please feel free contact to get more details.
