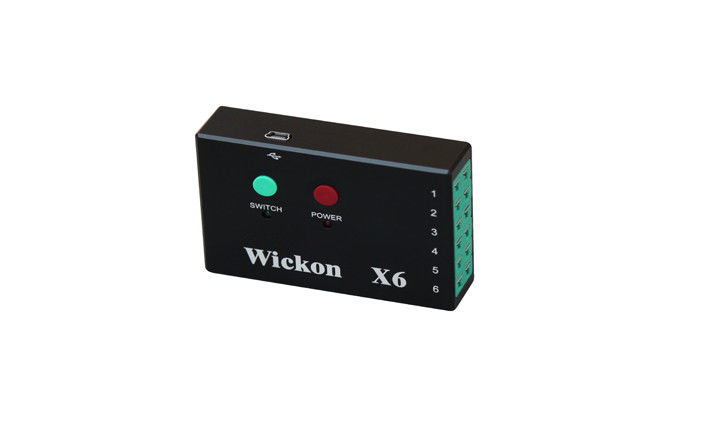

Wickon reflow checker x6 ,kic start profiler,Reflow soldering
temperature tester,BESTEMP
Advantage with others
|
compare |
wickon |
others |
|
Connector |
USB (connection and charger) |
com connector |
|
Data points |
4000000 points |
224,640 points(KIC) |
|
Channel |
more(6.7.10.12.15.24) |
less(7.9.12) |
|
Chip |
can keep all the data when no power |
can’t keep |
|
Resolution |
+_0.01 accuracy |
+_0.1 accuracy |
|
Volume |
small easy to take |
big hard to take |
|
Software |
just one window can editor all item data |
need one by one |
|
Temperature Range |
-150℃~1370℃ |
-150C to 1050C |
|
Start-up model |
BY air,temperature and switch |
just buy temperature or switch
|
Technology Parameters
|
Memory
|
5,000,000points
|
|
Test Channel
|
6,7,10,12,15,24channel
|
|
Sampling frequency
|
0.05s~60Min
|
|
Resolution
|
0.1℃
|
|
Precision
|
±0.5℃(Full scale)
|
|
Max. inner runtemperature
|
105℃
|
|
Temperature range
|
-150℃~1370℃
|
|
Run Voltage
|
3.7V~4.2VDC
|
|
Thermocouple Types
|
K wire(TT OR GG0.010inch/0.254mm)
|
|
Start-up mode
|
Switch button,starts the temperature
|
|
Language version
|
Chinese (Simplified and Traditional), English, etc.
|
|
simulation fuction
|
with
|
|
PCC intelligent analysis module
|
|
Temperature Profiling Picture Show
Our Products
1.Comprehensive Monitoring for Temperature curve
For high temperature industries(sintering furnace, annealing furnace, IR oven, spray, reflow and wave soldering, etc.) Statistical analysis for process, Control of product quality exactly, improve work efficiency, reduce scrap rates, to reduce product costs .
Our SURVEYYOR can be adjusted enhancements to control the furnace temperature stability, than reduce the amount of our test board ,not only save company's cost , but also improve work efficiency.
Temperature chart recorder also can enter unleaded process quickly.Whenever the introduction of a new product or paste than they need to be optimized for the reflow oven set - which is a time-consuming process.Equipment ROS of Wickon by calculating the best ovens, product and recycled to set the target temperature curve settings.Only a few seconds instead of several hours from others.
A: High efficiency, continuous data stored 24 times, downloaded to a computer packet analysis and processing;
B: modular analysis mode, simple, fast analysis system based on PC (Windows)
And PDA (Pocket) for data analysis;
C:Low power, battery, up to 168 hours of continuous use of the above,
365 ultra-long standby, without deliberately charging;
D:Communication mode uses USB transfer, for a variety of work environments and application areas
E: rigorous manufacturing process and accurate calibration services, all correction are used FLUKE-724 school
Positive, with China's largest institutional partners CTI calibration.
F: ensure that each machine is accurate, reliable, small size, large storage capacity (5,000,000 Data
Point), the use of FLASH memory chips, will not lose any accident data;
G: High stability
H:fairly long life, there is now a lot more than a decade of use WICKON life company
I:multichannel recorder obtain maximum element temperature curve.
J:insulated box can cope with the most severe heat deputy shot process (using black box technology)
K:Powerful Insight software is now with the process of measuring volatility,
L: temperature profile and the ability to predict SPC calculations.
2. the principle FOR Profiler :
(1) Data Logger
Wickon Q series data loggers are used in the recycling process today's most accurate recorder. It has a precision of ± 0.5, 0.1 degree resolution and 5,000,000 readings more storage capacity, it can provide detailed information on the depth of the analysis process. X series with a direct USB communication characteristics, so that information can be transmitted as quickly as possible from the data recorder to a PC.
(2) Hot Box
Wickon used in lead-free solder protection under common temperature loggers. It uses the "black box" flight recorder on an aircraft instrument same insulation technology, is enclosed in a rugged stainless steel housing.
(3) the basic principles of thermocouple
A conductor or semiconductor and B of two different materials welded together, form a closed loop. When there is a temperature difference between two contacts conductors A and B, they generate thermal electromotive force between the two, a phenomenon known as the thermoelectric effect. Thermocouple is to use this effect to work.
(4) Insight Software Features
Guide
All the usual features are based wizard, such as tolerance curve, technical documents. Even with fairly complex analysis, the wizard guides you step by step through the process temperature curve test, make sure to complete all phases of the test and save training time.
Alert
The new features are available to alert you when an error prompt. Numerical analysis can give any one domain set alarms. If a value exceeds the limit, an alert appears on the screen so you can quickly identify the problem.
SPC historical data to calculate
Insight software enables users to quickly and easily with a temperature curve historical data for SPC calculations. So - to the stability and capacity of the welding process can be tested.
