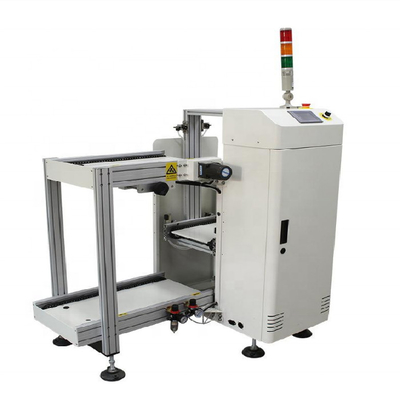

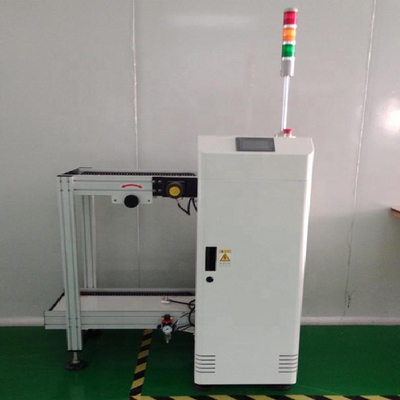

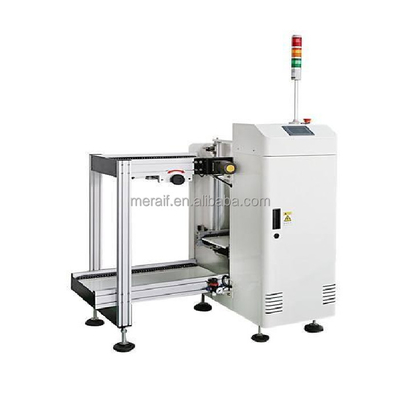

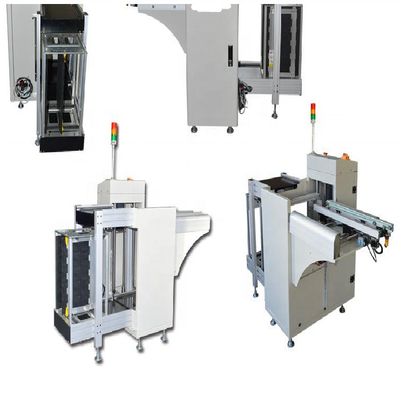

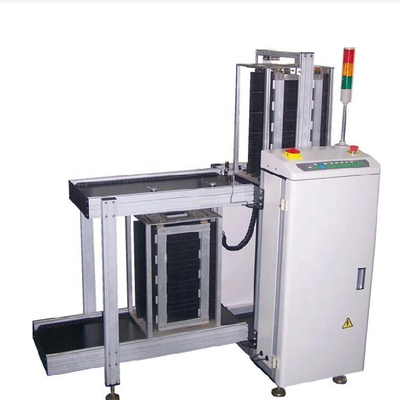

SMT Loader PCB Loader Machine

Home Products SMT loader unloader conveyor

SMT Loader PCB Loader Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	SMT Loader PCB Loader
Model Number:	MFL-250 PCB Loader Machine

Payment & Shipping Terms:

Price:	$2,300.00/sets 1-4 sets
Packaging Details:	SMT Loader PCB Loader packing with wooden case
Supply Ability:	10000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Condition:	New	Weight (KG):	140
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Core Components:	PLC
Warranty:	1 Year	Item:	SMT Loader PCB Loader
Whatsapp:	+8613424013606	Skype:	Sensenhenao
Air Pressure And Flow::	4-6bar, ≤10L/min	Transmission Height::	920±20mm
Circuit Board Thickness::	≥0.4mm	Frame Size::	355x320x563
PCB Allowable Size::	(50-50) X (350x250)	Step Selection::	1-4 (10mm Step)
Transmission Direction::	Left To Right Or Right To Left	Port:	Shenzhen

SMT Loader PCB Loader Machine

Whatspp:+8613424013606,skype:sensenhenhao

Micro computer controlled component ensures machine’s stable and reliable running.
Optional Fuji buttons interface or touch panel interface, convenient man-machine interaction.
Multiple sound and light alarming functions
Use standard magazines, good compatibility, load with 3 magazines at one time.
Lifting distance adjustable according to PCB, 4 kinds of distance(10mm, 20mm, 30mm and 40mm)
Loader configured with inner push board component, save the cost of buying PCB moving machine independently.

Automatic counting function make it easy of production statistic
Optional SMEMA port for communication between machines.

SMT Loader PCB Loader details

model:MFL-250 SMT Loader PCB Loader

Machine size:1100x780x1200

Control module: Siemens PLC industrial control

Frame time: about 6 seconds

Tank replacement time: about 20 seconds

Power and load: 220v/0.3kw

Air pressure and flow: 4-6bar, ≤10L/min

Transmission height: 920±20mm

Transmission direction: left to right or right to left

Circuit board thickness: ≥0.4mm
