SMT Machine line PCB Assembly Conveyor Pcb Conveyor smt conveyor
Whatspp:+8613424013606,skype:sensenhenhao
smt conveyor details
smt placement machine or between smt placement machine and reflow soldering machine.With Sensor to send in or send out and with sensor at the middle to keep stop or continue run .
1.Elaboration M lead screw, hand width-adjusting system to make 2 conveyor tracks move smoothly.
2.Imported circular special belt and patent tracks, can solve thin card guide PCB problem, improve fluency of connection.
3.Standard signal of industry for equipments, SMEMA can connect with others automatically on line.
4.Machine area made by thickened models or section Aluminum, with superior materials durable service and seed firm.
5.Applicable to production line of SMT and AI, facilitate to connection of equipments before and after.
6.When PCB move interposition during transmitting, it has the function of photo electricity automatic inspection and manual releasing.
| Brand | Meraif smt conveyor |
| Model | MF-350 |
| Outer Dimension | 500*700*940mm-1500*700*940mm |
| PCB Width | 50~350mm |
| PCB Direction | L to R or R to L |
| Speed | 0-2000 mm/min |
| Motor | 1P AC220V 50/60HZ 15W |
| Power Supply | 1P AC220V 50/60HZ |
| Rail length | up to your request |
| Control System | PLC |
| Foot switch | standard |
| Lighting | Option |
| SOP Rack | Option |
| Platform material | ESD Rubber Mat |
| Communication plug | SMEMA Signal plug for up & down line |
| Weight | Approx.55Kg-85kg |

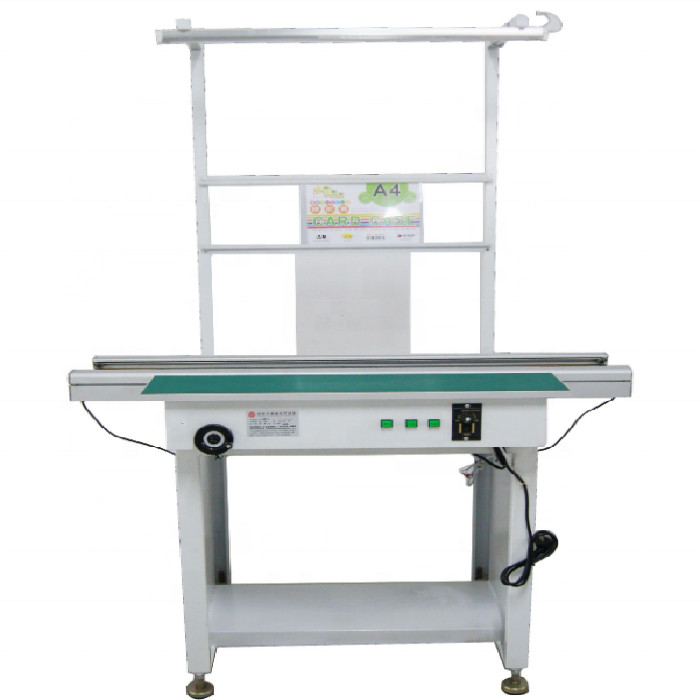

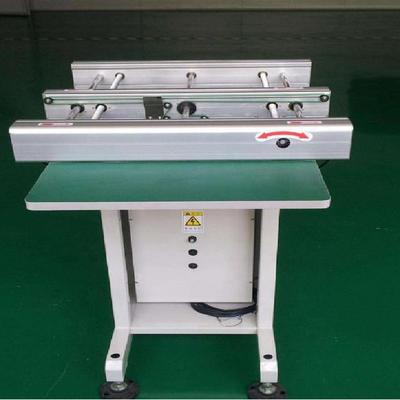

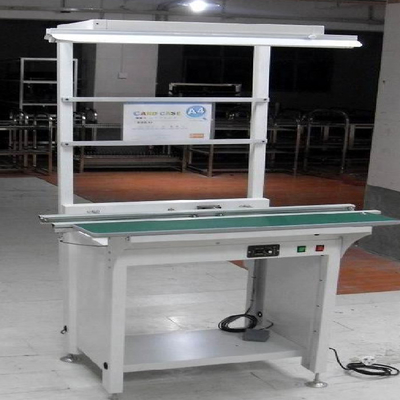

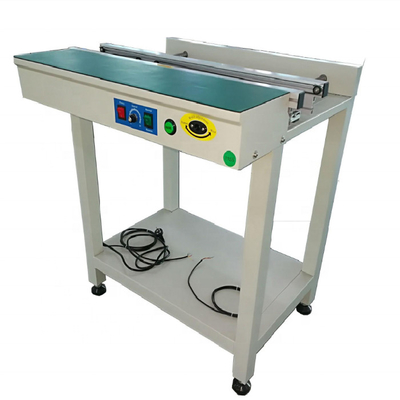

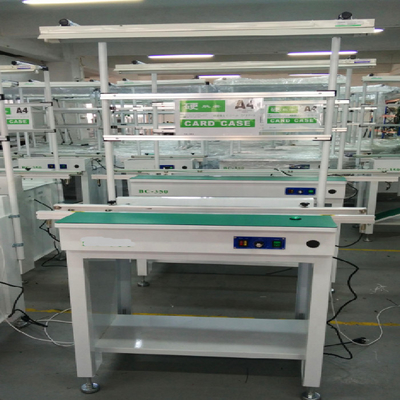

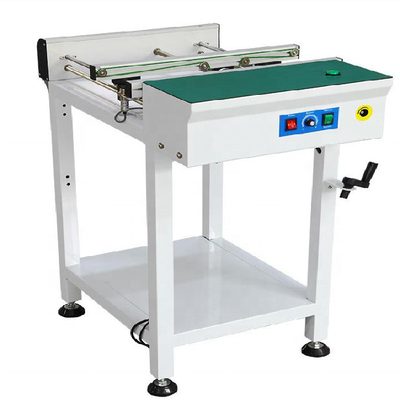

smt conveyor picture show
picture show:
