Variable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt function

Variable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt function

    • Variable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt function
    • Variable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt function
    • Variable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt function
    • Variable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt function
    • Variable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt function
    • Variable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt function
  • Variable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt function

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: phaeton or OEM is ok
    Model Number: Solar Water Pump Inverter With mppt

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 pieces
    Price: $100.00 - $5,000.00/pieces
    Packaging Details: Solar Water Pump Inverter With mppt packing with carton
    Supply Ability: 10000 Piece/Pieces per Week
    Contact Now
    Detailed Product Description
    Network: Water Pump Inverter With Mppt Customized Support: VFD Inverter For Solar
    Type: DC/AC Inverters Output Type: Triple, Hybrid
    Output Current: Water Pump Inverter With Mppt Output Frequency: Variable Frequency Drive, 50HZ
    Size: Solar Water Pump Inverter Certificate: Pump Inverter With Mppt Function
    Item: Solar Water Pump Inverter Whatsapp: +8613424013606
    Skype: Sensenhenhao Wechat: JoyLY0322
    Function: Agricultural Irrigation, Water Supply Protection: IP20 And IP54
    Mppt Effiency: 99.6% Environment Temperature: -10℃~+50℃
    Color: Black And White Port: Shenzhen

    Variable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt function

    whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322



    Variable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt functionVariable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt functionVariable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt functionVariable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt function Variable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt function

    Product Description

    Solar Water Pump Inverter With mppt description:

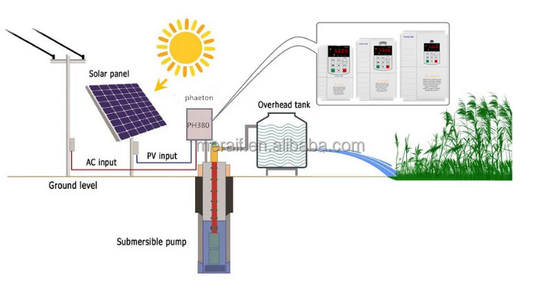

    PH380 Series special inverter is developed for outdoor PV power supply of water pumps, based on the core control arithmetic of PH100 vector control inverters and combined with the control requirements of PV water pump application. The MPPT, dormant at the weak light, wake up at the strong light, high water level dormant, under-load pre-warning and other control protection functions can ensure normal operation of water pumps according to the customers’ requirements to switch to the grid power supply.

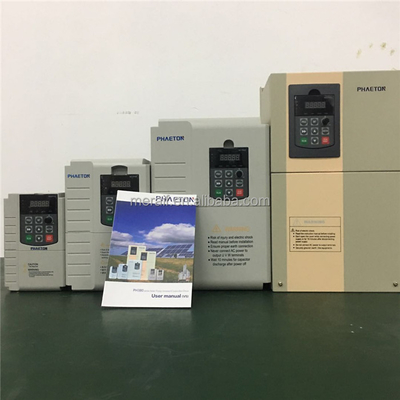

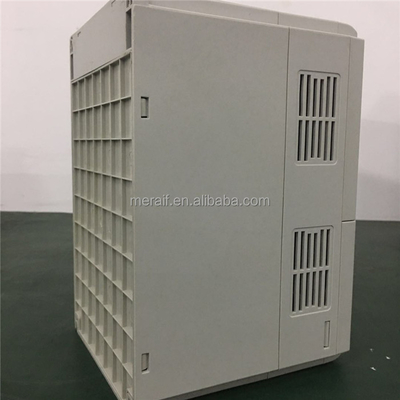

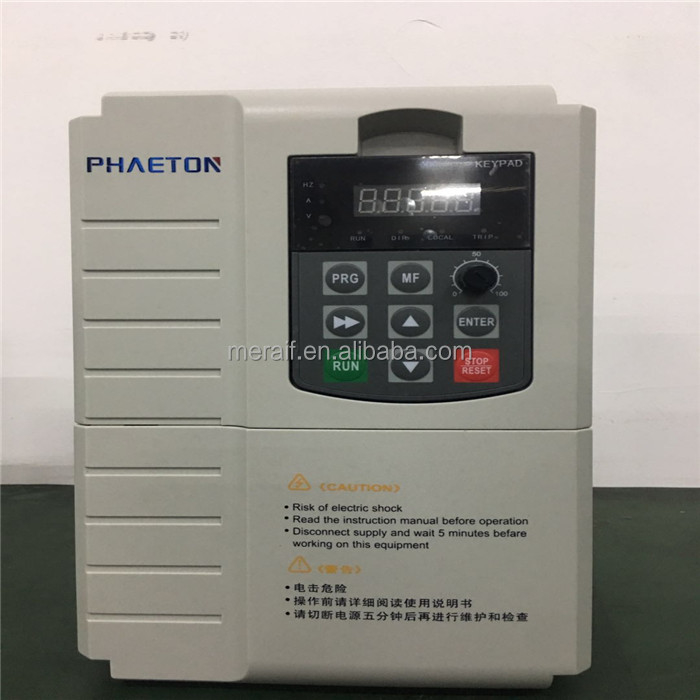

    Solar Water Pump Inverter With mppt picture show:

    Variable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt functionVariable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt functionVariable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt functionVariable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt functionVariable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt functionVariable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt function

    solar vfd mppt inverter Features: ( Power range: 0.75kw-11kw 220v, 0.75kw-400kw 380v)

    1 Built-in MPPT function and efficiency up to 99.6%

    2 Could drive both AM and PMSM pump

    3 Advanced software technology and perfect in driving PMSM pump

    4 Perfect stability in output frequency

    5 Remote control and monitoring by GPRS system(Available in PC and mobile)

    6 Dry run function to protect the pump

    7 Automatic start and stop function

    8 DC and AC as input power source accepted

    9 Low voltage input down to 60VDC input for 110V/220V pump solution





    Technical Specifications:
    Recommended MPPT voltage range Vmpp 280 to 375VDC for 2S model ( 150V to 450VDC input, 3PH 220 to 240VAC output)
    Vmpp 486 to 750 VDC for 4T model ( 250V to 800VDC input, 3PH 380 to 440VAC output)
    Recommended input voltage (Voc and Vmpp) Voc 355V DC, Vmpp 310V DC for 2S model or 220V AC pumps
    Voc 620V DC, Vmpp 540V DC for 4T model or 380V AC pumps
    Motor type Control for permanent magnet synchronous motor(PMSM) and asynchronous motor(AM)
    Input power DC power from solar arrays or AC grid power
    Maximum DC power input 450VDC for 220V AC Pump / 800VDC for 380V AC Pump
    Rated output voltage 3-phase 220V or 3-phase 380V/440V
    Output frequency range 0~50/60Hz
    MPPT efficiency 99.60%
    Ambient temperature range -10 TO 50
    Solar pump control special performance MPPT ( maximum power point tracking), CVT (constant voltage tracking), auto/manual operation, dry run protection, low stop frequency protection, minimum power input, motor maximum current protection, flow calculating, energy generated calculating
    Protection function Phase loss protection, phase short circuit protection, ground to phase circuit protection, input and output short circuit protection. Stall protection
    Protection degree IP20-Air force cooling
    Running mode MPPT,CVT, variable frequency mode
    Altitude Below 1000m; above 1000m, derated 1% for every additional 100m
    Standard CE certificate.Design based on vector control inverter

     Variable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt functionVariable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt functionVariable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt functionVariable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt functionVariable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt functionVariable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt functionVariable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt functionVariable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt functionVariable Frequency Drive 220V 4KW 3 phase Solar Water Pump Inverter With mppt function
