Place of Origin: | Guangdong, China |
Brand Name: | phaeton or OEM is ok |
Model Number: | PH100 Variable VFD Drive |
Minimum Order Quantity: | 2 pieces |
---|---|
Price: | $100.00 - $5,000.00/pieces |
Packaging Details: | Solar Pump Inverter Single Phase packing with carton |
Supply Ability: | 10000 Piece/Pieces per Week |
Output Current: | Solar Pump Inverter Single Phase | Output Frequency: | Variable VFD Drive |
---|---|---|---|
Output Type: | Solar Pump Inverter | Certificate: | VFD Drive Frequency Inverter |
Warranty: | 1 Year | Item: | Solar Pump Inverter Single Phase |
Whatsapp: | +8613424013606 | Skype: | Sensenhenhao |
Wechat: | JoyLY0322 | Function: | Agricultural Irrigation, Water Supply |
Power Range:: | 0.75-7.5kw 220v, 0.75-560kw 380v) | Wide Input Voltage Range: | Up To ±20% |
Single/Three-phase Power Supply:: | 220V, 50/60Hz | All Series: | Use IGBT Module |
Color: | Black And White | Port: | Shenzhen |
4kw Solar Pump Inverter Single Phase Three Phase Solar Pumping System
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
PH100 sensorless vector control frequency inverter is popular used for its great quality and stable performance. This sensorless vector control ac drive is with compact structure design and made of durable components that it can meet various kinds of load challenges and application scenarios.
Solar Pump Inverter Single Phase Features: ( Power range: 0.75-7.5kw 220v, 0.75-560kw 380v)
1.Powerful hardware design with full materials
2.All series use IGBT module
3.Adopts international advanced vector control algorithm
4.Use the latest generation TI DSP, its computing speed increases 50%
5.Offers 100% starting torque with sensorless vector control
6.Complete Protection Function like: under/over voltage, over current, phase missing…
7.Ease to Use and rich multiple-function terminal
8.Wide input voltage range, up to ±20%
Solar Pump Inverter Single Phase Model list:
Inverter model | Power capacity | Output current | Fit motor | Packing size | Weight | |
kVA | A | kW | HP | MM | KG | |
Single/Three-phase power supply: 220V, 50/60Hz | ||||||
PH100-2S-0P7GB | 1.5 | 4 | 0.75 | 1 | 252*195*230 | 2 |
PH100-2S-1P5GB | 3 | 7 | 1.5 | 2 | 2 | |
PH100-2S-2P2GB | 4 | 10 | 2.2 | 3 | 2.5 | |
PH100-2S-004GB | 5.9 | 16 | 3.7 | 5 | 315*235*253 | 4.3 |
PH100-2S-5P5GB | 8.9 | 20 | 5.5 | 7.5 | 4.5 |
Power capacity | Output current | Fit motor | Packing size | Weight | ||
Inverter model | kVA | A | kW | HP | MM | KG |
Three-phase power supply: 380V, 50/60Hz | ||||||
PH100-4T-0P7GB/1P5PB | 1.5 | 2.3 | 0.75 | 1 | 252*195*230 | 2 |
PH100-4T-1P5GB/2P2PB | 3 | 3.7 | 1.5 | 2 | 2 | |
PH100-4T-2P2GB/004PB | 4 | 5.1 | 2.2 | 3 | 3.2 | |
PH100-4T-004GB/5P5PB | 5.9 | 10 | 3.7 | 5 | 3.5 | |
PH100-4T-5P5GB/7P5PB | 8.9 | 13 | 5.5 | 7.5 | 315*235*253 | 4 |
PH100-4T-7P5GB/011PB | 11 | 17 | 7.5 | 10 | 4.2 | |
PH100-4T-011GB/ 015PB | 17 | 25 | 11 | 15 | 4.5 | |
PH100-4T-015GB/018PB | 21 | 32 | 15 | 20 | 395*295*275 | 7.1 |
PH100-4T-018GB/022PB | 24 | 37 | 18.5 | 25 | 7.5 | |
PH100-4T-022GB/030PB | 30 | 45 | 22 | 30 | 395*295*275 | 12 |
PH100-4T-030G/037P | 40 | 60 | 30 | 40 | 640*410*390 | 17 |
PH100-4T-037G/045P | 57 | 75 | 37 | 50 | 17.5 | |
PH100-4T-045G/055P | 69 | 91 | 45 | 60 | 700*410*460 | 35 |
PH100-4T-055G/075P | 85 | 112 | 55 | 75 | 36 | |
PH100-4T-075G/090P | 114 | 150 | 75 | 100 | 680*485*415 | 45 |
PH100-4T-090G/110P | 134 | 176 | 90 | 125 | 51 | |
PH100-4T-110G/132P | 160 | 210 | 110 | 150 | 54 | |
PH100-4T-132G/160P | 192 | 253 | 132 | 200 | 885*535*370 | 86 |
PH100-4T-160G/185P | 231 | 304 | 160 | 250 | 90 | |
PH100-4T-185G/200P | 240 | 340 | 185 | 280 | 98 | |
PH100-4T-200G/220P | 250 | 377 | 200 | 300 | 104 | |
PH100-4T-220G/250P | 280 | 426 | 220 | 300 | 1180*760*450 | 180 |
PH100-4T-250G/280P | 355 | 465 | 250 | 400 | 186 | |
PH100-4T-280G/315P | 396 | 520 | 280 | 370 | 190 | |
PH100-4T-315G/355P | 445 | 585 | 315 | 500 | 1280*860*600 | 220 |
PH100-4T-355G/400P | 500 | 650 | 355 | 420 | 220 | |
PH100-4T-400G/450P | 565 | 725 | 400 | 530 | 230 | |
PH100-4T-450G/500P | 630 | 820 | 450 | 600 | 1850*1200*540 | 490 |
PH100-4T-500G/560P | 700 | 880 | 500 | 660 | 490 | |
PH100-4T-560G/630P | 784 | 990 | 560 | 760 | 520 |
Phaeton Solar pump inverter market show:
Phaeton solar pump inverter production process:

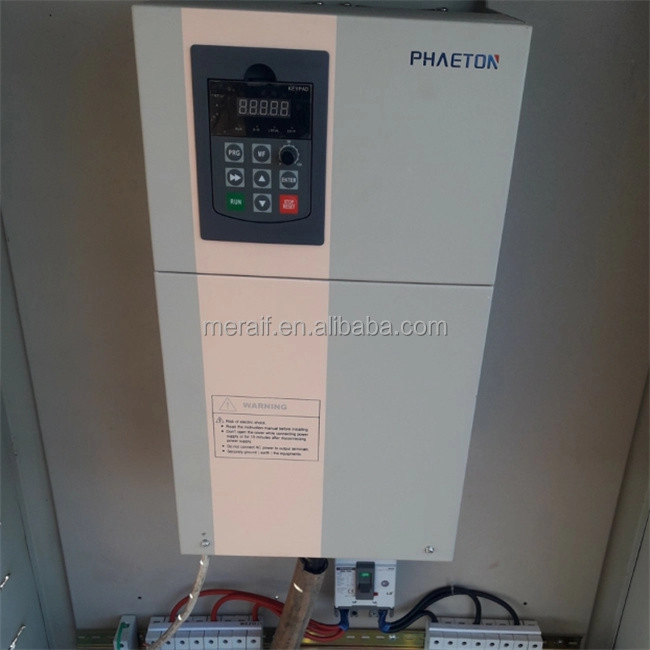

Solar Pump Inverter Single Phase picture show:
