Place of Origin: | Guangdong, China |
Brand Name: | phaeton or OEM is ok |
Model Number: | 3 Phase Solar Pump Inverter |
Minimum Order Quantity: | 2 pieces |
---|---|
Price: | $100.00 - $5,000.00/pieces |
Packaging Details: | solar inverter 30kw packing with carton |
Supply Ability: | 10000 Piece/Pieces per Week |
Customized Support: | VFD Inverter For Solar | Type: | DC/AC Inverters |
---|---|---|---|
Output Type: | Triple, Hybrid | Output Current: | Solar Water Pump Inverter |
Output Frequency: | Solar Frequency Drive Vfd Inverter, 50HZ | Size: | 3 Phase Solar Pump Inverter |
Weight: | VFD Inverter Drive | Certificate: | Solar Inverter 30kw |
Item: | Solar Inverter 30kw | Whatsapp: | +8613424013606 |
Skype: | Sensenhenhao | Wechat: | JoyLY0322 |
Function: | Agricultural Irrigation, Water Supply | Protection: | IP20 And IP54 |
Mppt Effiency: | 99.6% | Environment Temperature: | -10℃~+50℃ |
Color: | Black And White | Port: | Shenzhen |
Wholesale mppt solar inverter 30kw solar pump inverter mppt vfd solar water pump inverters for irrigation system
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
Off grid solar inverter Power range:
220V -2S model: 0.75-11kw,input 150VDC-450VDC
380V -4T model: 0.75-400KW,input 350V-800VDC
460V -5T model: 0.75-400KW,input 350V-900VDC
solar inverter 30kw Main Features: ( Power range: 0.75kw-11kw 220v, 0.75kw-400kw 380v)
1 Built-in MPPT function and efficiency up to 99.6%
2 Could drive both AM and PMSM pump
3 Advanced software technology and perfect in driving PMSM pump
4 Perfect stability in output frequency
5 Remote control and monitoring by GPRS system(Available in PC and mobile)
6 Dry run function to protect the pump
7 Automatic start and stop function
8 DC and AC as input power source accepted
9 Low voltage input down to 60VDC input for 110V/220V pump solution
Technical Specifications: | |
Recommended MPPT voltage range | Vmpp 280 to 375VDC for 2S model ( 150V to 450VDC input, 3PH 220 to 240VAC output) |
Vmpp 486 to 750 VDC for 4T model ( 250V to 800VDC input, 3PH 380 to 440VAC output) | |
Recommended input voltage (Voc and Vmpp) | Voc 355V DC, Vmpp 310V DC for 2S model or 220V AC pumps |
Voc 620V DC, Vmpp 540V DC for 4T model or 380V AC pumps | |
Motor type | Control for permanent magnet synchronous motor(PMSM) and asynchronous motor(AM) |
Input power | DC power from solar arrays or AC grid power |
Maximum DC power input | 450VDC for 220V AC Pump / 800VDC for 380V AC Pump |
Rated output voltage | 3-phase 220V or 3-phase 380V/440V |
Output frequency range | 0~50/60Hz |
MPPT efficiency | 99.60% |
Ambient temperature range | -10℃TO 50℃ |
Solar pump control special performance | MPPT ( maximum power point tracking), CVT (constant voltage tracking), auto/manual operation, dry run protection, low stop frequency protection, minimum power input, motor maximum current protection, flow calculating, energy generated calculating |
Protection function | Phase loss protection, phase short circuit protection, ground to phase circuit protection, input and output short circuit protection. Stall protection |
Protection degree | IP20-Air force cooling |
Running mode | MPPT, CVT, variable frequency mode |
Altitude | Below 1000m; above 1000m, derated 1% for every additional 100m |
Standard | CE certificate. Design based on vector control inverter |

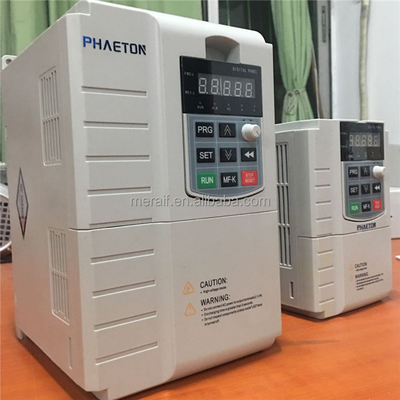

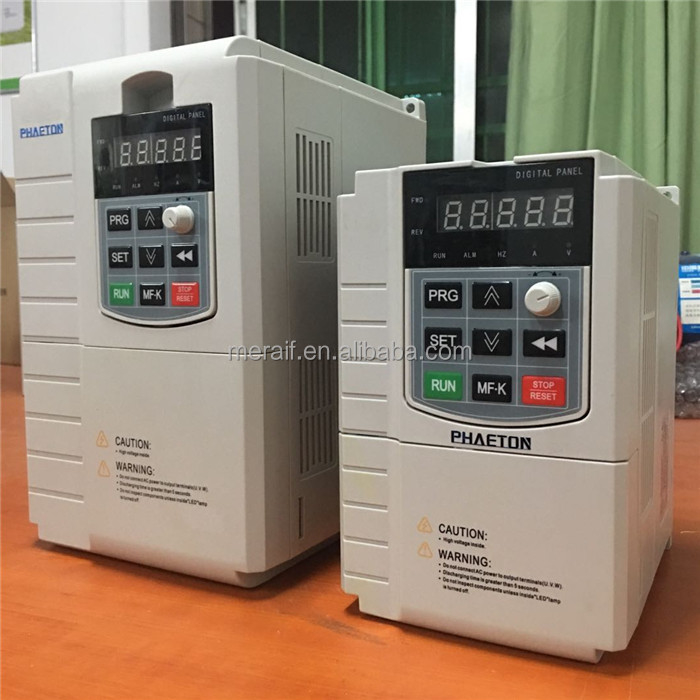

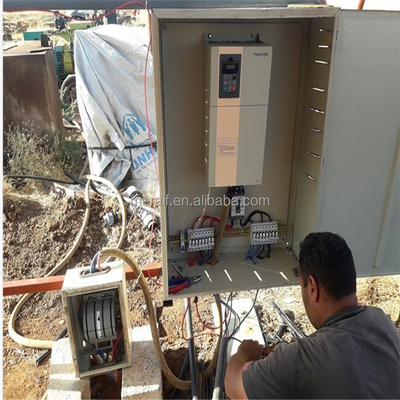

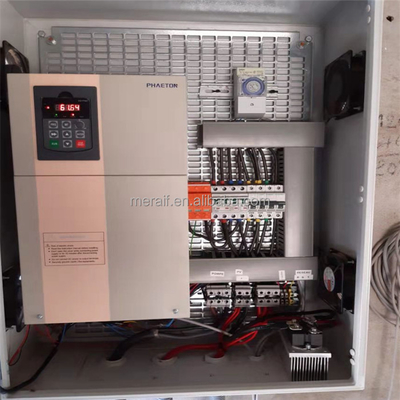

solar inverter 30kw picture show:
