    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: ME-5600 Off-line Automatic PCBA Cleaning Machine
    Certification: SMT Cleaning Machine for PCBA

    Payment & Shipping Terms:

    Price: $33,800.00/sets 1-1 sets
    Packaging Details: SMT Cleaning Machine for PCBA packing with vacuum wooden case
    Supply Ability: 100 Set/Sets per Month SMT Cleaning Machine for PCBA
    Contact Now
    Detailed Product Description
    Machine Type: HIGH PRESSURE CLEANER Applicable Industries: Electronic Factory
    Condition: New Use: PCBA Cleaning Machine
    Cleaning Process: PCBA Cleaning Machine Cleaning Type: Industrial Ultrasonic Cleaner
    Industry Used: Electronic Industry Material: PCBA Cleaning Machine
    Power: Pneumatic Stencil Cleaner Dimension(L*W*H): L1300 X W1200 X H850(mm)
    Warranty: 1 Year Max. Pressure: PCBA Cleaner
    Marketing Type: PCBA Cleaner Machinery Test Report: PCBA Cleaner
    Video Outgoing-inspection: PCBA Cleaner Warranty Of Core Components: PCBA Cleaner
    Core Components: PCBA Cleaner Key Selling Points: PCBA Cleaner
    Weight (KG): 165 Kg Product Name: SMT Cleaning Machine For PCBA
    Power/Air Supply: AC380V/50A/50HZ,30KW,0.5Mpa Cleaning Basket Size: L610 X W560 X H100 (mm) X2 Layers
    Spray Tank Capacity: 17L Concentrate Capacity: 32L
    Dilution Capacity: 60L Clean Time: 5~20min
    Rinse Time: 1~2min/times Skype: Sensenhenhao
    Whatsapp/wechat: +8613424013606 After Warranty Service: Online Support
    Local Service Location: None Showroom Location: None
    After-sales Service Provided: Video Technical Support Port: Shenzhen

    SMT PCBA cleaner machine SMT Cleaning Machine for PCBA Cleaner Application PCB Cleaning Metal Machine

    skype:sensenhenhao,whastapp/wechat:+8613424013606



    SMT Cleaning Machine for PCBA Description:


    SME-5600 is an off-line, compact, energy-saving and environmental protection, batch cleaning, high-end PCBA cleaning machine. SME-5600 can automatically complete the cleaning, rinsing, drying process in the clean chamber by just push one start key.
    SME-5600 PCBA cleaning machine can effectively clean the residuals on SMT / THT welding PCBA, such as: rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations.
    Mainly used in aviation, aerospace, medical, new energy, automotive electronics, meters industries, especially suitable for small amount, multiple types PCBA cleaning.
    Automatic PCBA Cleaning Machine Features:
    1.Through clean rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations on PCBA.

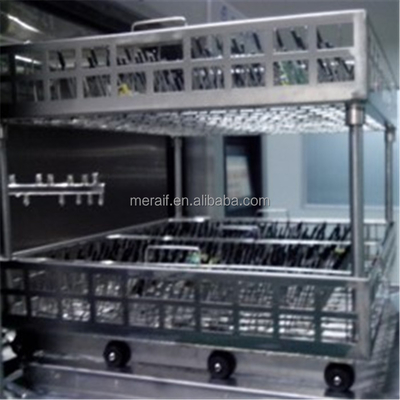

    2.2-layers cleaning basket: 610mm(L) ×560mm(W) × 100mm(H) x2 layers.

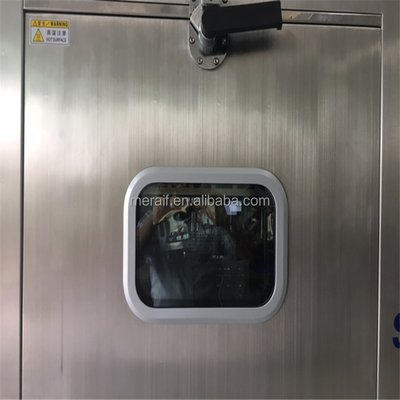

    3.State of the process is visible through a large observation window.
    4.Clean detergent heat system heat cleaning detergent to a certain temp, raise cleaning efficiency and reduce clean time.
    5.Easy operation interface, quick setting clean parameters. Different passwords can be set.
    6.Inner filter makes detergent used repeated. Real-time measure DI water resistivity and monitoring cleaning effect. Resistivity range is 0~18 MΩ.
    7.The remaining detergent in the pump and pipes are blown off by compressed air and flow back to cleaning tank. This function saves detergent up to 50%.
    8.High standard cleanliness, ionic contamination completely meets the requirement of IIPC-610D I class.
    9.Totally SUS304 structure, very firm and attractive.

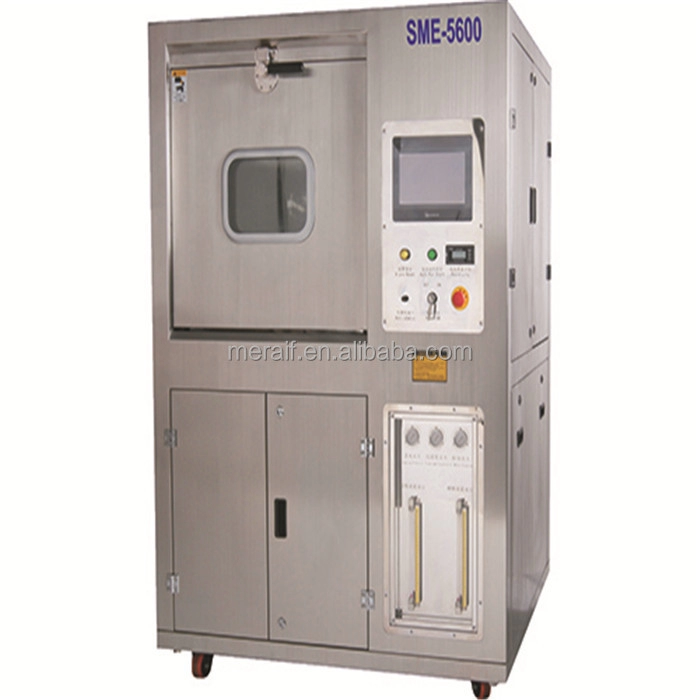

    SMT Cleaning Machine for PCBA picture show:

    SMT PCBA cleaner machine SMT Cleaning Machine for PCBA Cleaner Application PCB Cleaning MachineSMT PCBA cleaner machine SMT Cleaning Machine for PCBA Cleaner Application PCB Cleaning Machine





    PCBA Cleaning Machine Spec:

    Item

    SME-5600 spec

    Cleaning basket size

    L610 x W560 x H100 (mm) x2 layers

    Spray tank capacity

    17L

    Concentrate capacity

    32L

    Dilution capacity

    60L

    Clean time

    5~20min

    Rinse time

    1~2min/times

    Rinse times

    1~99times

    Hot air dry time

    10~30min

    Detergent heat temp

    Room temp~60℃

    PCB hot air day temp

    Room temp~99℃

    Resistivity range

    0~18MΩ

    Detergent filter

    0.22um

    Rinse water pipe out filter

    0.22um

    Air filter

    10um

    DI water supply

    30~65L/Min

    DI water pressure

    0.2~0.4Mpa

    Vent size

    Φ76xH50(mm)

    Power/Air supply

    AC380V/50A/50HZ,30KW,0.5Mpa

    Machine size

    L1300 x W1200 x H1850(mm)

    Machine weight

    460KG

    SMT PCBA cleaner machine SMT Cleaning Machine for PCBA Cleaner Application PCB Cleaning MachineSMT PCBA cleaner machine SMT Cleaning Machine for PCBA Cleaner Application PCB Cleaning MachineSMT PCBA cleaner machine SMT Cleaning Machine for PCBA Cleaner Application PCB Cleaning Machine
