Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process

Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process

    • Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process
    • Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process
    • Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process
    • Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process
    • Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process
    • Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process
  • Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: SMT JIG cleaning machine

    Payment & Shipping Terms:

    Price: $23,500.00/sets 1-4 sets
    Packaging Details: Jig fixture cleaning machine package+plywood case
    Supply Ability: 1000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Machine Type: HIGH PRESSURE CLEANER Applicable Industries: Smt Electroniuc Factory
    Use: Other Industry Used: Electronic Industry
    Power: 1.5 KW Warranty: 1 Year
    Max. Pressure: Other Marketing Type: Ordinary Product
    Machinery Test Report: Provided Video Outgoing-inspection: Provided
    Warranty Of Core Components: 1 Year Core Components: SMT JIG Cleaning Machine
    Key Selling Points: Other Weight (KG): 550 Kg
    Product Name: Jig Fixture Cleaning Machine Sky-pe: Sensenhenhao
    Wha-tsapp: +86134240-13606 Leaning Basket Size: Diameter 1000mm X H 200mm. Special Size Option
    Spray Unit: Upper/lower/front Side,720°all-around Spray 3-level Filter System: 1mm /50um/20um Filters
    Clean Tank Capacity: 80L Rinse Tank Capacity: 80L
    Clean Spray Pressure: 5~6 Kg/cm2 Clean Time: 5~15 Min
    Showroom Location: None Port: Shenzhen

    Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process

    sky-pe:sensenhenhao,wha-stapp:+8613424013606



    Jig fixture cleaning machine Description:

    SME-5200 Fixture Cleaning Machine is used to clean grease, flux, dusts on the surface of all kinds of SMT fixtures,tray, reflow oven cooler and filter, wave-soldering oven claw, chains, and nets…etc.
    SME-5200 is made up of wash unit, rinse unit, dry unit, rotation cleaning basket unit and control unit. Put the dirt SMT fixtures on to the cleaning basket, setting the cleaning parameters, the machine will automatically complete wash, rinse and dry process by just pushing start key. The fixtures after cleaning is very clean and dry, ready to use at any time.

    Jig fixture cleaning machine Features:
    1.Total SUS 304 structure, resist Acid and Alkali corrosion, firm and attractive.
    2.1 meter diameter big cleaning round basket, can clean 20~40 pcs fixtures at one time.
    3.Clean liquid spray from 3 spray rods on upper/lower and front side, cleaning basket rotates during cleaning.
    4.Clean liquid pressure up to 6kg/cm2, make it throughly clean of whole fixture.
    5.PLC program control, Touch-panel operation,cleaning parameters can be set and change conveniently.
    6.Easy One-button operation, high pressure clean+ rinse+ hot air dry, all process complete in a cycle automatically.
    7.Clean liquid and water heat and temperature keeping function.
    8.Closed-loop clean and rinse, clean detergent and rinse water are cycling filtered and reused in the machine.
    9.Standard equipped solution and water auto fill in and discharge function.
    10.The fixtures are clean and dry after cleaning, standby and ready for use at any time.

    Jig fixture cleaning machine Machine Spec:

    Item

    SME-5200 Spec

    Cleaning basket size

    Φ1000mm x H 200mm. Special size option

    Spray unit

    Upper/lower/front side,720°all-around spray

    3-level filter system

    1mm /50um/20um filters

    Clean tank capacity

    80L

    Rinse tank capacity

    80L

    Clean spray pressure

    5~6 kg/cm2

    Clean time

    5~15 Min

    Rinse time

    1~3 Min

    Dry time

    10~20Min

    Clean detergent heat temp

    Room temp~80℃

    Rinse water heat temp

    Room temp~80℃

    Hot air heat temp

    Room temp~90℃

    Clean pump power

    2.2KW

    Clean detergent power

    9KW

    Hot air heat power

    9KW

    Air blower power

    4.0KW

    Air supply

    0.5~0.7Mpa

    Power supply

    3 P,AC 380V,50/60HZ,33KW

    Machine size

    L1380 x W2100 x H 1400 (mm)

    Machine weight

    500KG

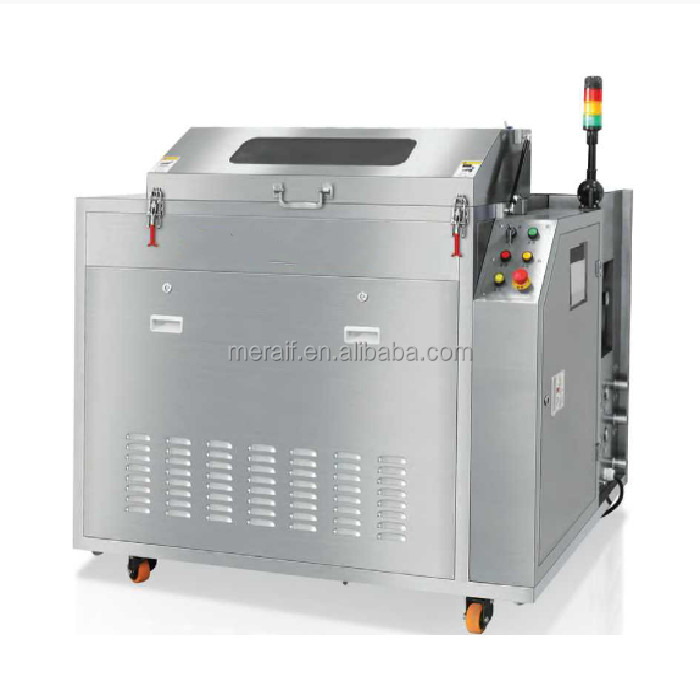

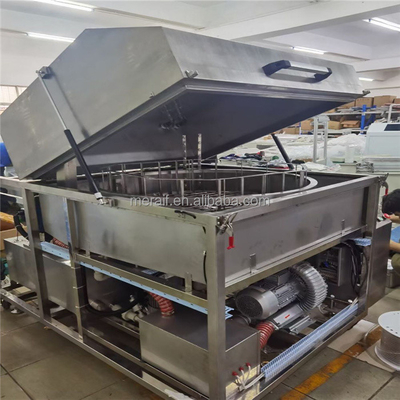

    Jig fixture cleaning machine picture show:

    Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering processFactory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering processFactory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering processFactory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering processFactory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering processFactory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering processFactory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering processFactory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering processFactory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process
