    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: ME-5600 Off-line Automatic PCBA Cleaning Machine

    Payment & Shipping Terms:

    Price: $35,000.00/sets 1-1 sets
    Packaging Details: PCBA Cleaning Machine package+plywood case
    Supply Ability: 100 Set/Sets per Month PCBA Cleaning Machine
    Contact Now
    Detailed Product Description
    Machine Type: HIGH PRESSURE CLEANER Applicable Industries: Electronic Factory
    Condition: New Use: PCBA Cleaning Machine
    Cleaning Process: PCBA Cleaning Machine Cleaning Type: Industrial Ultrasonic Cleaner
    Industry Used: Electronic Industry Material: PCBA Cleaning Machine
    Power: Pneumatic Stencil Cleaner Dimension(L*W*H): L1300 X W1200 X H850(mm)
    Warranty: 1 Year Max. Pressure: PCBA Cleaner
    Marketing Type: PCBA Cleaner Machinery Test Report: PCBA Cleaner
    Video Outgoing-inspection: PCBA Cleaner Warranty Of Core Components: PCBA Cleaner
    Core Components: PCBA Cleaner Key Selling Points: PCBA Cleaner
    Weight (KG): 600 Kg Product Name: PCBA Cleaning Machine
    Power/Air Supply: AC380V/50A/50HZ,30KW,0.5Mpa Cleaning Basket Size: L610 X W560 X H100 (mm) X2 Layers
    Spray Tank Capacity: 17L Concentrate Capacity: 32L
    Dilution Capacity: 60L Clean Time: 5~20min
    Rinse Time: 1~2min/times Skype: Sensenhenhao
    Whatsapp/wechat: +8613424013606 Port: Shenzhen

    SMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machine

    skype:sensenhenhao,whastapp/wechat:+8613424013606



    PCBA Cleaning Machine Description:



    Flux Residual PCBA Cleaning Machine Chemical clean and DI water rinse machine. SME-5600 is a multi-spec and small batch PCBA flux residual cleaning machine for all kinds of PCBA. It  is a large size, off-line, PCBA cleaning machine.  It can clean PCBA as big as L650*W650mm.

    Super cleaning performance. SME-5600L PCBA cleaning machine can clean flux on PCBA, such as: rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations.


    Mainly used in military,aviation, aerospace, medical, new energy, automotive electronics industries, especially suitable for small amount, multiple types PCBA cleaning.



    SME-5600L PCBA Cleaning Machine features:


    1. All kinds of flux and solder balls can be clean: for example, rosin flux, water-soluble flux , non-clean flux ,solder paste.


    2. 2-layers bigger cleaning basket: 700mm(L) ×700mm(W) × 200mm(H) x2 layers.

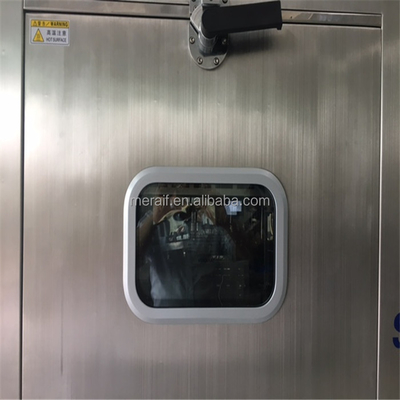

    3. All processes are visible through a large observation window.


    4 .Easy operation interface, quick setting clean parameters. Different passwords can be set for ooerator and engineers.


    5. Standard liquid and DI water fliter.



    6.DI water resistivity real time check. Resistivity range is 0~18 MΩ.


    7. Compressed air blow off pipes and pumps, save liquid.


    8. High standard cleanliness, ionic contamination completely meets the requirement of IIPC-610D I class.


    9. Totally SUS304 structure,  solide, acid and alkali corrision-proof


    SME-5600L PCBA Cleaning Machine spec:



    ITEM SPEC
    Cleaning basket size L700xW700xH200mmx 2layers
    Diluent liquid tank capacity 60L
    Spray liquid tank capacity 18L
    Concentrate tank capacity 30L
    Cleaning time 5~20min
    Rinse time 1~2 min/times
    Rinse times 1~10times
    Dry time 10~30min
    Diluent liquid heat temp room temp ~60ºC
    PCB dry time room temp~99ºC
    Resistivity range 0~18MΩ
    Liquid filter 0.2um
    DI water filter 0.2um
    Air filter 10um
    Vent size φ76XH50(mm)
    Power supply AC380, 3 Phases, 50/60Hz, 30KW
    Air supply 0.5Mpa, 400L/Min
    Machine size L1400xW1400x2100(mm)
    Machine weight 720KG

    Customer Question & Answer

    Ask something for more details

    Q1: What is the cycle time of SME-5600L batch cleaning  machine?

    A1: Total 30~45min. wash 10min+rinse 10min+dry 10~25min.



    Q2: What liuqid can be used in SME-5600L to clean PCBA?

    A2: It depends on electonical components and solder paste on your PCBA. Water-based PCBA cleaning liquid  wash, DI water rinse.



    Q3: Have many pcbas can SME-5600L clean in one cycle?

    A3: L200*W100mm  size PCBA for example, it can clean 40~50pcs.

    Q4: Does SME-5600L need DI water?

    A4: Yes, it need DI water for rinse to remove liquid residual and ions on PCBA surface.

    Comparison picutures before and after cleaning:

    SMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machineSMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machine

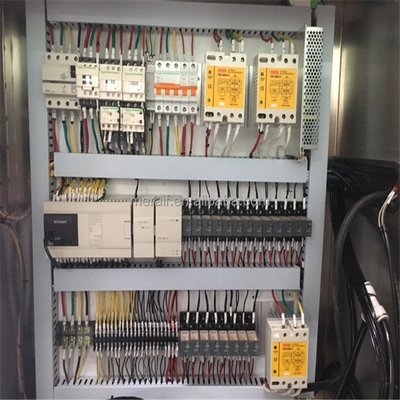

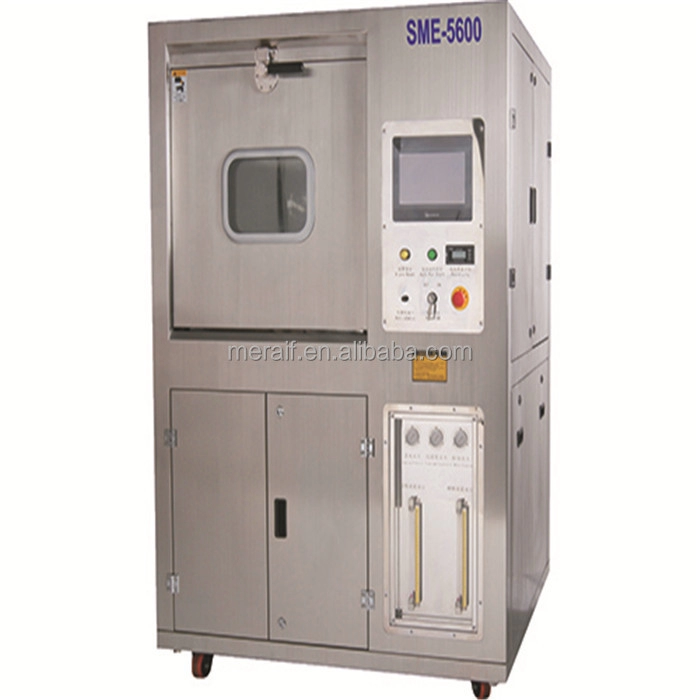

    PCBA Cleaning Machine   picture show:

    SMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machineSMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machine









    SMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machineSMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machineSMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machine
