|Place of Origin:||Guangdong, China|
|Brand Name:||ME-820 Printed Stencil Cleaning Machine|
|Price:||$30,000.00 - $80,000.00/sets|
|Packaging Details:||Printed Stencil Cleaning Machine packing with vacuum wooden case|
|Supply Ability:||100 Set/Sets per Month Printed Stencil Cleaning Machine|
|Machine Type:||HIGH PRESSURE CLEANER||Applicable Industries:||Electronic Factory|
|Condition:||New||Use:||Stencil Cleaning Machine|
|Cleaning Process:||Printed Stencil Cleaning Machine||Cleaning Type:||Industrial Ultrasonic Cleaner|
|Industry Used:||Electronic Industry||Power:||Pneumatic Stencil Cleaner|
|Dimension(L*W*H):||1400*1470*2050( L*W*T) Mm||Warranty:||1 Year|
|Max. Pressure:||Stencil Cleaning Machine||Marketing Type:||Stencil Cleaning Machine|
|Core Components:||Stencil Cleaning Machine||Key Selling Points:||Stencil Cleaning Machine|
|Weight (KG):||820 Kg||Product Name:||Printed Stencil Cleaning Machine|
|Stencil Size::||29*29*1.57 Inches (L*W*T) As Max||Wash Liquid::||Water-based Solder Paste Liquid|
|Rinse Time::||1~2min||Wah Time: 3~6min:||Dry Time: 3~6min|
|Liquid/water Filter::||1um/1um Real Time||Compressed-air Supply::||0.5~0.7Mpa,200~400L/min|
|Dry::||Hot Air Blow Dry||Port:||Shenzhen|

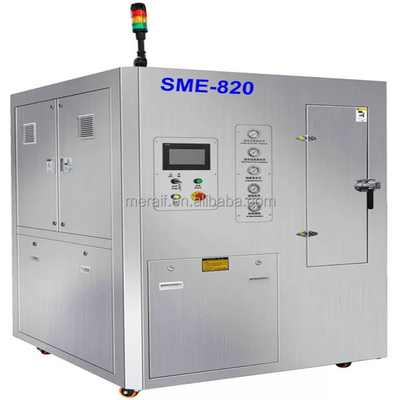

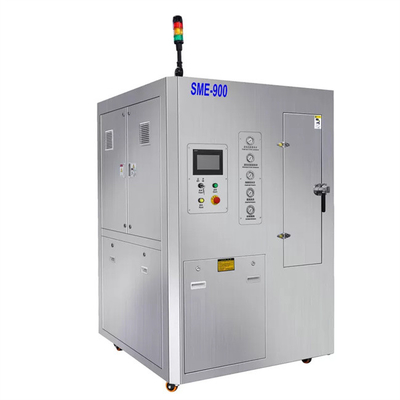

SME-820 Stencil Cleaning Machine 80L Automatic Solder Paste Printed Stencil Cleaning Machine
is an automatic, industrial + PLC controlled and MES system connected smart equipment. SME-820 has MES modular and MES port and can provide machine parameters to customers' MES system.
SME-820 Multi-application range: solder paste stencil, red glue stencil, 3mm thickness red glue cooper stencil, 3mm red glue plastic stencil, mis-printed PCB and squeegees.
Automatic wash process: water-based liquid wash--DI water rinse--hot air blow dry.

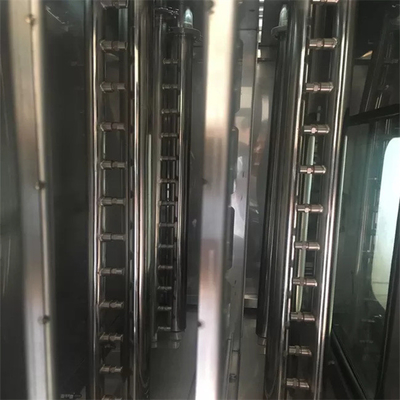

Most stable mechanism structure--4 cleaning spray rods and 4 air knives fixed at the left and right side of stencil; stencil move back and forth in the cleaning cabinet..
Printed Stencil Cleaning Machine Features:
1. Process: water-based liquid wash + DI water rinse+ hot air blow dry process.
2. Multi-use: solder paste /red glue stencil, red glue cooper stencil/ plastic mask, mis-printed PCB, squeegee.
3. Stable mechanism: stencil moves back and forth in the wash cabinet while spray rods and air knives fixed.-- make the machine stable and relaible.
4. Excellent cleaning result: up to 4~5kg/cm2 spray pressure and high volume nozzles, very good cleaning result.
5. Real time filtrer system: liquid and water can be recirculated used, no solder balls comes back to stencil surface again. Especially for precise stencil.
6. Less distance, more efficient:4 spray rods and air knives fixed on left and right side of stencil, 750mm long stencil move distance reduce to 420mm.
7. Pressure meters : cleaning liquid / rinse water/liquid filter/water filter pressure meters on front panel,easy to watch and monitor them.
8. SUS304 stainless steel structure:alkalic and alkacid corrision protection. All pipes, fIlter barrel and pumps are sus304 material, no plastic pipes at all.
9. One key easy operation: just push “start” key, all process are running automatically according to program setting.
10. Visible: window on right side of clean chamber, all process are visible.
11. Liquid cost down: Compressed air blow out remain liquid in pipes and pumps after cleaning process , save up to 50% liquid.
12. PLC control, TP English operation interface: clean time, temp;rinse time, temp; dry time, temp...parameters easy to set and modify.
13. Auot liquid and water add and discharge function:Equipped with air pump liquid/water add and discharge automatically.
14. World famous, high quality parts from Scheidier, Mitsubish, Omron, SMC, CKD.
15. LS protection: 4 levels liquid and water levle switch, low level to protect heater, pumps,M and H level remind to add liuqid or water,HH level to protect overflow.
16. Heaters temp control: PID calculattion , ±3°accuracy,over temp protection.
17. Water open loose and close loop: both this 2 loops can be choosed to use.
18. Excellent software function: auot/manual mode, I/O ports, paramenters setting,filter replace reminding...
Printed Stencil Cleaning Machine Spec:
|5||wash liquid temp||room temp~60℃|
|6||DI water temp|
|7||hot air temp|
|8||liquid tank/water tank capacity||60L/60L|
|9||liquid/water spray pressure||4~5kg/cm2|
|10||liquid type||water-based liquid|
|11||Water type||DI water or DM water|
|12||liquid/water filter precision||1um/1um|
|13||liquid heat power||9KW|
|14||water heat power||9KW|
|15||hot air heat power||6KW|
|16||electric power and air supply||AC380V,3P,50/60Hz,28KW,0.5Mpa|
Questions and Answers:
Q1. Why choose this electric stencil cleaning machine?
A1: Because SME-860 use water-based liquid which is safety, environmental-protection and easy to rinse.
Q2: Can SME-860 clean 3mm thick red glue printed cooper stencil and palstic mask?
A2: Yes, it can because its powerful cleaning pressure can penatrate very little holes in the stencil and mask to wash the red glue out.
Q3: Is it very dry after wash, rinse and dry process?
A3: Yes, it is very dry because hot air temperture and air blow result.
Q4: How SME-860 clean mis-printed PCB, squeegees and frameless stencils?
A4: By using our mis-printed PCB fixture, squeegee fixture, frameless stencil fixture.

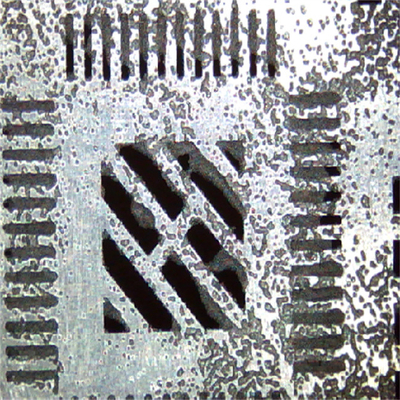

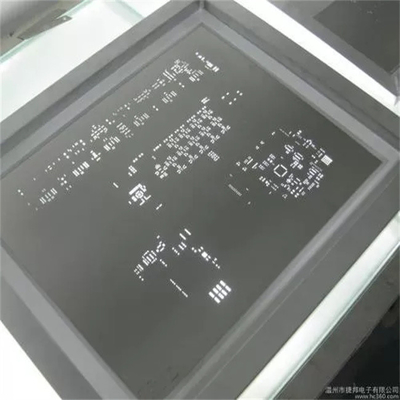

Comparisonpictures before and after cleaning:

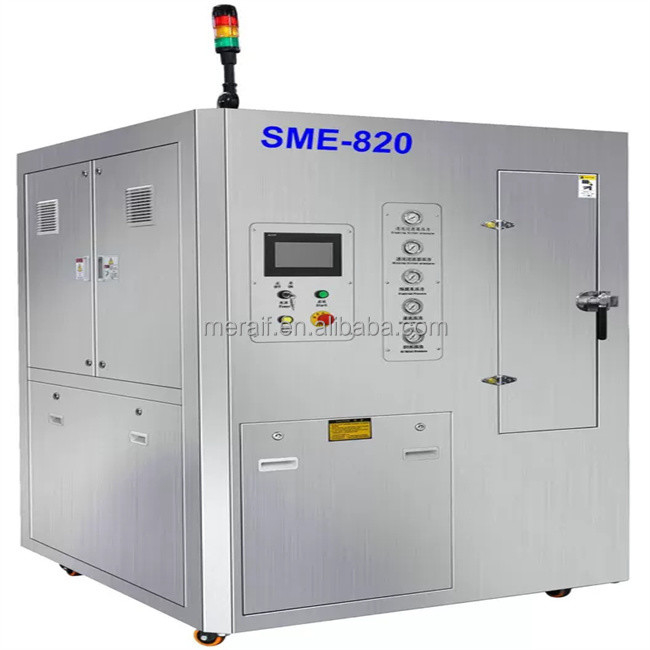

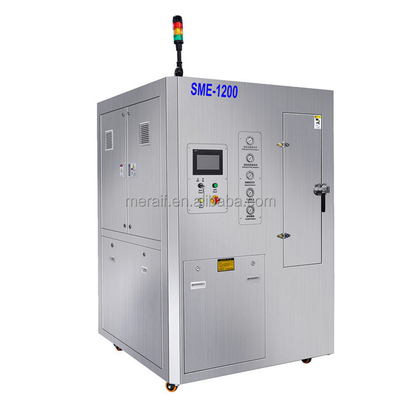

Printed Stencil Cleaning Machine picture show:
