|Place of Origin:||Guangdong, China|
|Brand Name:||Wave Oven Pallet Cleaning Machine|
|Price:||$24,000.00 - $50,000.00/sets|
|Packaging Details:||Wave Oven Pallet Cleaning Machine package+plywood case|
|Supply Ability:||10000 Piece/Pieces per Month|
|Machine Type:||HIGH PRESSURE CLEANER||Applicable Industries:||Wave Solder Pallets Cleaning Machine|
|Condition:||New||Feature:||Wave Solder Pallets Cleaning Machine|
|Use:||Container / Bottle Cleaning||Industry Used:||Electronic Industry|
|Power:||2.3 KW||Dimension(L*W*H):||1450*1650*1450( L*W*H) Mm|
|Warranty:||1 Year||Max. Pressure:||7.5Mpa|
|Marketing Type:||Ordinary Product||Core Components:||Wave Solder Pallets Cleaning Machine|
|Key Selling Points:||Low Noise Level||Weight (KG):||700 Kg|
|Product Name:||Wave Oven Pallet Cleaning Machine||Skype:||Sensenhenhao|
|Whatsapp:||+86134240-13606||Basket Size::||Diameter 1000mm|
|Cleaning Height::||400mm As Max||Clean Time: 5~15min:||Dry Time: 5~15min|
|Rinse Time: 2~3min:||Liquid Tank Capacity: 80L||Water Tank Capacity: 80L:||Filter: 20um|
|Power::||Compressed-air, No Electric Power||Lead Time:||35-40days|

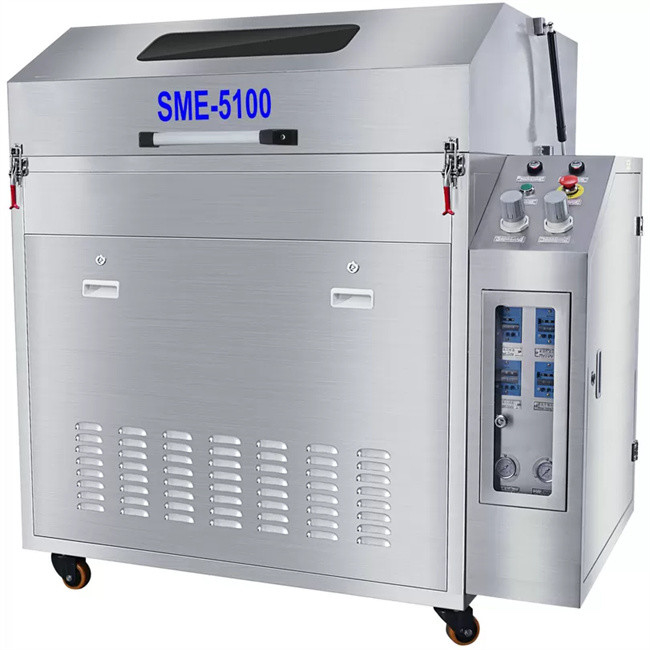

SME-5100 Double-Station 1000mm Diameter Round Basket jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine
SME-5100 Double-Station 1000mm Diameter Round Basket Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine.
It is pneumatic cleaning machine,no electric power,safety machine.
Both solvent and water-based liquid can be used in this machine.
Pneumatic mahine, simple operation, simple maintenance.
SME-5100 Wave Oven Pallet Cleaning Machine introduction:
SME-5100pneumatic Pallet Cleaning Machine is used to clean flux, dusts on the surface of soldering wave amchine pallets,trays, reflow oven coolers , wave-soldering oven claw, chains, and nets…etc. SME-5100 is made up of wash unit, rinse unit, dry unit, rotation cleaning basket unit and control unit. Put the dirt pallets on to the cleaning basket, setting the cleaning parameters, the machine will automatically perform wash, rinse and dry process by just pushing start key. The pallets are very clean after cleaning.
SME-5100 Wave Oven Pallet Cleaning Machine features:
1. Total SUS 304 structure, resist Acid and Alkali corrosion, firm and attractive.

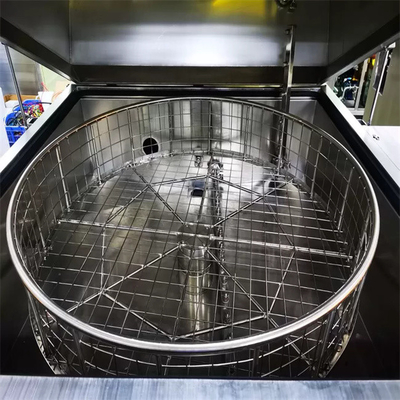

2. 1000mm diameter big cleaning round basket, can clean 20~40 pcs pallets at one time.
3. Clean liquid spray from 3 spray rods on upper/lower and front side, cleaning basket rotates during cleaning.
4. Clean liquid pressure up to 3~4kg/cm2, make it throughly clean of whole Pallets.
5. Mechanical timer and valves control, cleaning parameters can be set and change conveniently.
6. Easy One-button operation, high pressure clean+ rinse+ compressed air dry, all process complete in a cycle automatically.
7. Both water base liquid and solvent can be used.
8. Closed-loop clean and rinse, clean liquid and rinse water are cycling filtered and reused in the machine.
9. Standard equipped liquid and water auto fill in and discharge function.
10.The Pallet are clean and after cleaning, standby and ready to use.
SME-5100 Wave Oven Pallet Cleaning Machine specficaiton:
|1||Cleaning basket size||:Φ1000mm× 200mm(H),cleaning height:400mm|
|2||Cleaning tank capacity||80L( maximum )|
|3||Rinse tank capacity||80L( maximum )|
|4||Cleaning method||360°Spray Rotary Cleaning|
|5||Dry method||Compressed air blow dry|
|9||Fliter net 1||1mm|
|10||Filter net 2||100um|
|13||Air flow rate||800~1000L/min|
|14||Air vent size||130mm(Φ)×50mm(H)|
Questions and Answers:
Q1: Why SME-5100 can use sovent like alchol to clean products?

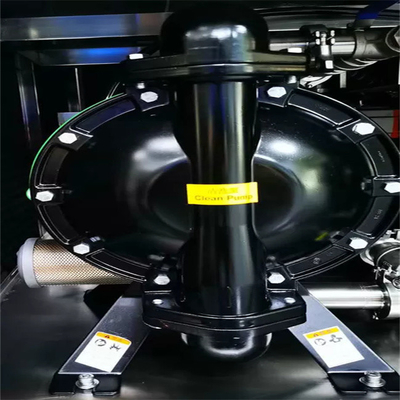

A1: SME-5100 use air pumps, air motor, air valves, mechanical meters, so it is only need compressed-air as power.
Q2: Is SME-5100 safe?
A2: Yes, SME-5100 do not use electric power, no electricity, no sparks, so it is very safe even use slovent to clean products.
Q3: What kind of detergent can use in this machine?
A3: Yes, both water-based liquid and solvent can use in SME-5200.
Comparison pictures before and after cleaning:

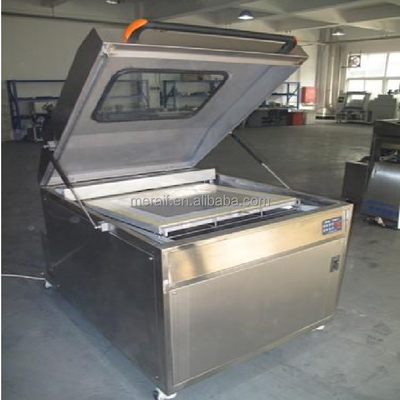

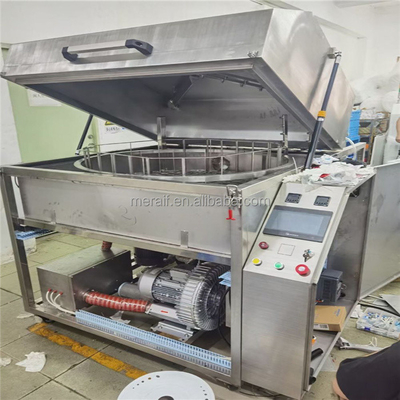

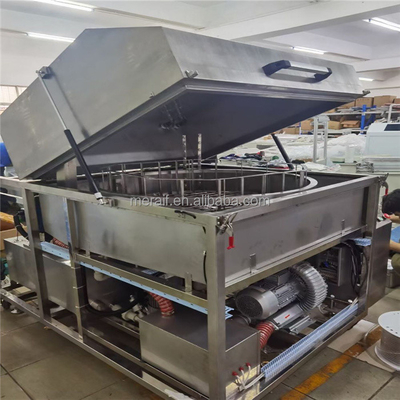

Wave Oven Pallet Cleaning Machine picture show:
