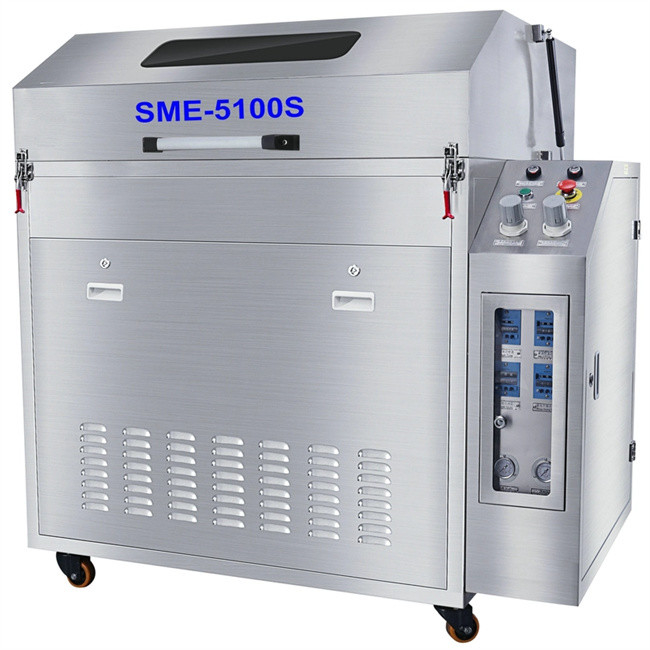

SME-5100S adopts solvent wash+solvent clean+compressed air blow dry process.
Pneumatic control, east operation and maintenance.
SMT Pallet Cleaning Machine Features:
1. Pneumatic control, never use electric power at all, absolutely clean safe.
2. SUS 304 machine structure, resist Acid and Alkali corrosion, firm and attractive.
3. One-button easy operation, high pressure clean+ high pressure rinse+ compressed air dry, all process complete in one time automatically.
4. Closed-loop clean and rinse, clean solvent and rinse solvent is filtered in the machine
5. Solvent recycled to use and cost down.
6. Both solvent and aqueous detergent can be used.
7. The pallet are clean and dry after cleaning, standby and ready for use.
8. Standard equipped with auto fill-in and drain-out function.
9. Inner lock safety design, once door open, the machine stops immediately.
SMT Pallet Cleaning Machine Spec:
| Item | SME-5100S |
| Cleaning basket size | Φ1000 x H 200(mm) |
| Clean spray unit | Upper/Lower/front side, all-round spray, basket rotate |
| 2-level filter | 1mm/20um filter |
| Clean time | 5~15 Min |
| Rinse time | 1~2 Min |
| Air dry time | 5~10min |
| Clean tank capacity | 80L |
| Rinse tank capacity | 80L |
| Clean spray pressure | 2~4kg/cm2 |
| Air supply | 0.5~0.7Mpa,800~1000L/min |
| Machine size | L1450 x W1550 x H 1400 (mm) |
| Machine weight | 520KG |
Customer questions and Answers:
Q1: Is SME-5100S safe?
A1: Yes, SME-5100 do not use electric power, only compressed-air, so no risk of electricity, heat, sparks.
Q2: How SME-5100S clean products?

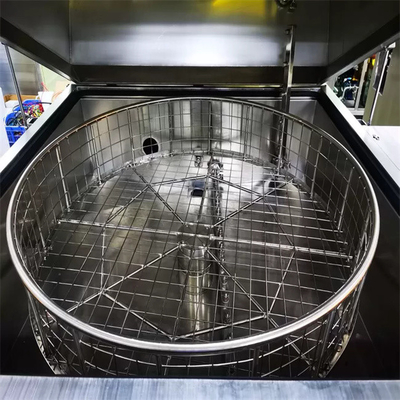

A2: The products put on round basket, the upper and lower spray rods spray solvent while basket turns at low speed.
