|Place of Origin:||Guangdong, China|
|Price:||$175,000.00/sets 1-1 sets|
|Packaging Details:||Circuit Board Spray Cleaning Machine package in vacuum wooden case|
|Supply Ability:||1000 Piece/Pieces per Month|
|Machine Type:||HIGH PRESSURE CLEANER||Applicable Industries:||Manufacturing Plant|
|Industry Used:||Electronic Industry||Power:||150 KW|
|Warranty:||1 Year||Max. Pressure:||Other|
|Marketing Type:||Ordinary Product||Machinery Test Report:||Provided|
|Video Outgoing-inspection:||Provided||Warranty Of Core Components:||1 Year|
|Core Components:||Other||Key Selling Points:||Long Service Life|
|Weight (KG):||3200 Kg||Product Name:||Circuit Board Spray Cleaning Machine|
|Material::||SUS304 Stainless Steel||Conveyor Net Width: 600mm:||Conveyor Speed: 0.1~1.5m/min|
|PCBA Size::||L600*W500*T100mm As Max||DI Water Amount: 500~1000L/H:||Conveyor Direction: Left To Right|
|Air Exhaust Amount: 42m³/H:||DI Water Resistivity Range: 0~18MΩ||Compressed-air Supply::||0.5Mpa, 200~400L/min|
|Power Supply:::||AC380V, 3P, 50/60Hz,150KW||Port:||Shenzhen|
SUS304 Circuit Board Spray Cleaning Machine Smt online PCBA cleaning machine Modular 600mm Conveyor Cleaning System
Our best performance cleaning machine: SUS304 Stainless Steel
SME-6600 is a SUS304 stainless steel material and modular design cleaning machine.
Wash range: PCBA flux residuals, soder balls and particles on PCBA, such as: rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations.
Modular cleaning section and process: Pre-wash+Wash1+Wash2+ Chemical isolation+ Pre-rinse+ Rinse+Final rinse+ Air blow dry+ Hot air dry1+ Hot air dry2.
advanced spray cleaning technology, the system has following advantages:
1. Big quantity PCBA in line cleaning system.
2. large amout liquid spray wash method, super wash result. Thoroughly clean water-sular solder paste flux and non-clean solder paste flux on SMT or THT PCBA after welding.
3. Longer wash sections + DI water rinse section+ Air blow section +2 hot air dry sections.
4. Liquid and fresh DI water supply automatically, post-section DI water overflow to the previous-section to renew DI water.
5. Up/down spary system on wash and rinse sections.
6. Liquid and DI water spray pressure can be adjusted for dirrerent PCBA cleaning requirements.
7. Standard equipped with Resistivity monitoring system, resistivity range 0~18 MΩ.
8. Air knives blow dry+ 2 section hot air dry system.
9. SUS304 stainless PCB flat conveyor net system.
10. PLC control system, English operation interface, easy operation.
11.Many optional functions avalible.
12. Total SUS304 structure, Acid and Alkali corrosion resistance.
Circuit Board Spray Cleaning Machine Spec:
|4||conveyor direction||Left to Right|
|5||PCB size||L500*W600mm as max|
|6||PCB height||100mm as max(with component)|
|7||wash tank capacity||300L|
|8||rinse tank capacity||30L+120L+30L|
|9||DI water consumption||400~1000L/H|
|15||power supply||AC380V,50/60HZ, 3P,150KW|
Q1: Why SME-6600 can clean all PCBAs?
A1: SME-6600 is a 6600mm length long machine, it has 2x600mm wash section with 2x14 spray rods on it, that's why it is so powerful.
Q2: Why is it 150KW?
A2: in wash section, it has 3x12KW heater;in pre-rinse section,it has 1x12KW heater; in Rinse section, it has 3x12KW heater; in hot air dry section ,it has 2x7.5KW heater, and we also have air blowers, electric pumps.
Q3: What is the liquid temperature and DI water temperature?
A3: liquid temperature can heat to 80℃; DI water can heat to 60℃.
Q4: What is the liquid consumption per hour?
A4: It depends on liquid itself and temperature, we install liquid cool condenser ,normally 5~15L/ Hour.

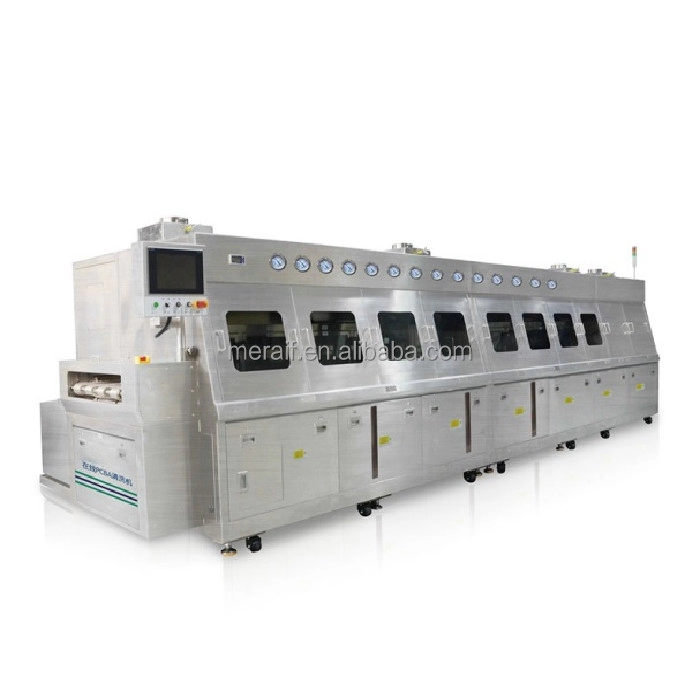

Circuit Board Spray Cleaning Machine picture show:
