600mm width net Sus304 Semiconductor packaging flux chemical wash machine for IGBT,IPM and LEADFRAME

600mm width net Sus304 Semiconductor packaging flux chemical wash machine for IGBT,IPM and LEADFRAME

    • 600mm width net  Sus304 Semiconductor packaging flux chemical wash machine for IGBT,IPM and LEADFRAME
    • 600mm width net  Sus304 Semiconductor packaging flux chemical wash machine for IGBT,IPM and LEADFRAME
    • 600mm width net  Sus304 Semiconductor packaging flux chemical wash machine for IGBT,IPM and LEADFRAME
    • 600mm width net  Sus304 Semiconductor packaging flux chemical wash machine for IGBT,IPM and LEADFRAME
    • 600mm width net  Sus304 Semiconductor packaging flux chemical wash machine for IGBT,IPM and LEADFRAME
    • 600mm width net  Sus304 Semiconductor packaging flux chemical wash machine for IGBT,IPM and LEADFRAME
  • 600mm width net  Sus304 Semiconductor packaging flux chemical wash machine for IGBT,IPM and LEADFRAME

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: Meraif

    Payment & Shipping Terms:

    Price: $165,000.00 - $200,000.00/sets
    Packaging Details: flux chemical wash machine package in vacuum wooden case
    Supply Ability: 1000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Machine Type: HIGH PRESSURE CLEANER Applicable Industries: Manufacturing Plant
    Condition: New Fuel: Flux Chemical Wash Machine
    Use: Burnishing Cleaning Process: Flux Chemical Wash Machine
    Cleaning Type: Flux Chemical Wash Machine Industry Used: Electronic Industry
    Material: Flux Chemical Wash Machine Power: 150 KW
    Dimension(L*W*H): 5200*1750*1650( L*W*H) Mm Warranty: 1 Year
    Max. Pressure: Other Marketing Type: Ordinary Product
    Machinery Test Report: Provided Video Outgoing-inspection: Provided
    Warranty Of Core Components: 1 Year Core Components: Other
    Key Selling Points: Long Service Life Weight (KG): 3000 Kg
    Product Name: Flux Chemical Wash Machine Skype: Sensenhenhao
    Whastapp: +8613424013606 Material:: SUS304 Stainless Steel
    Conveyor Net Width:: 600mm Conveyor Speed: 0.1~1.5m/min: Conveyor Direction: Left To Right
    DI Water Amount: 400~800L/H: Air Exhaust Amount: 42m³/H DI Water Resistivity Range:: 0~18MΩ
    Compressed-air Supply:: 0.5Mpa, 200~400L/min Power Supply::: AC380V, 3P, 50/60Hz,150KW
    Port: Shenzhen

    600mm width net  Sus304 Semiconductor pacakging flux chemical wash machine for IGBT,IPM and LEADFRAME

    sky-pe:sensenhenhao,wha-stapp:+8613424013606



    flux chemical wash machine Description

    with the development of modern semiconductor process, SIP package flux clean is very important . SC820  precise ,high quality and reasonable price SIP package flux auto cleaning machine is used for  advanced semiconductor package process



    For all kinds of rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations.



    SC820 process: Pre-wash+Wash1+Wash2+ Chemical isolation+ Pre-rinse+ Rinse+Final rinse+ Air blow dry+ Hot air dry1+ Hot air dry2.


    By using our SHENHUA latest mix spray cleaning technology, the system has following advantages:


    1. SIP package PCBA in line cleaning system.
    2. Liquid mix  spray wash technology, super wash result, thoroughly clean water-sular solder paste flux and non-clean flux.
    3. Longer wash sections + DI water rinse section+ Air blow section +2 hot air dry sections.
    4. Liquid and fresh DI water supply automatically, post-section DI water overflow to the previous-section to renew DI water.
    5. Up/down  spary system on wash and rinse sections.
    6. Liquid and DI water spray pressure can be adjusted for dirrerent semiconductor products cleaning requirements.
    7. Standard equipped with Resistivity monitoring system, resistivity range 0~18 MΩ.
    8. Air knives blow dry+ 2 section hot air dry system.
    9. SUS304 stainless PCB flat conveyor net system.
    10. PLC control system, English operation interface, easy operation.
    11.Many optional functions avalible.

    12. Total SUS304 structure, Acid and Alkali corrosion resistance.

    flux chemical wash machine Spec:



    S/N Item SC820 Spec
    1 conyeyor net  600mm
    2 conveyor speed 0.1~1.5m/min
    3 conveyor height 900±50mm
    4 conveyor direction Left to Right
    5 product size L400*W600mm as max
    6 product height 100mm as max(with component)
    7 wash tank capacity 300L
    8 rinse tank capacity 30L+120L+30L
    9 DI water consumption 400~1000L/H
    10 exhausted air 42m³
    11 electric control PLC+TP
    12 Resistivity range 0~18MΩ
    13 PH range 0~14
    14 air supply 0.5Mpa
    15 power supply AC380V,50/60HZ, 3P,150KW
    16 machine size L6600*W1750*H1650mm
    17 machine weight 3600KG

    Customer Question & Answer

    Q1: What kind of semiconductor profucts can  SC820 clean?

    A1: Flux on SIP, BGA,CSP,Flip chip... pacakage. it has 2x600mm wash section with 2x14 spray rods on it, that's why it is so powerful.



    Q2: Why is it 150KW?

    A2: in wash section, it has 3x12KW heater;in pre-rinse section,it has 1x12KW heater; in Rinse section, it has 3x12KW heater; in hot air dry section ,it has 2x7.5KW heater, and we also have air blowers, electric pumps.



    Q3: What is the liquid temperature and DI water temperature?

    A3: liquid temperature can heat to 80℃; DI water can heat to 60℃.



    Q4: What is the liquid consumption per hour?

    A4: It depends on liquid itself and temperature,  we install liquid cool condenser ,normally 5~15L/ Hour.



    Ask something for more detail

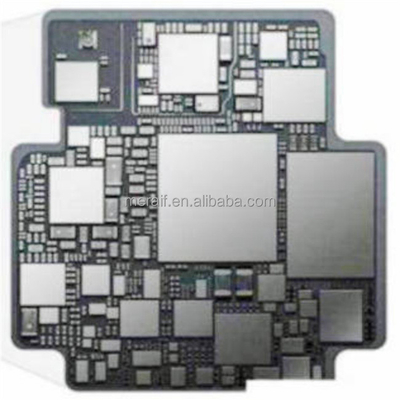

    SIP package ppicture
    600mm width net  Sus304 Semiconductor packaging flux chemical wash machine for IGBT,IPM and LEADFRAME

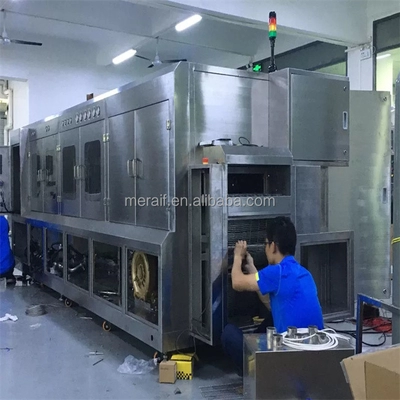

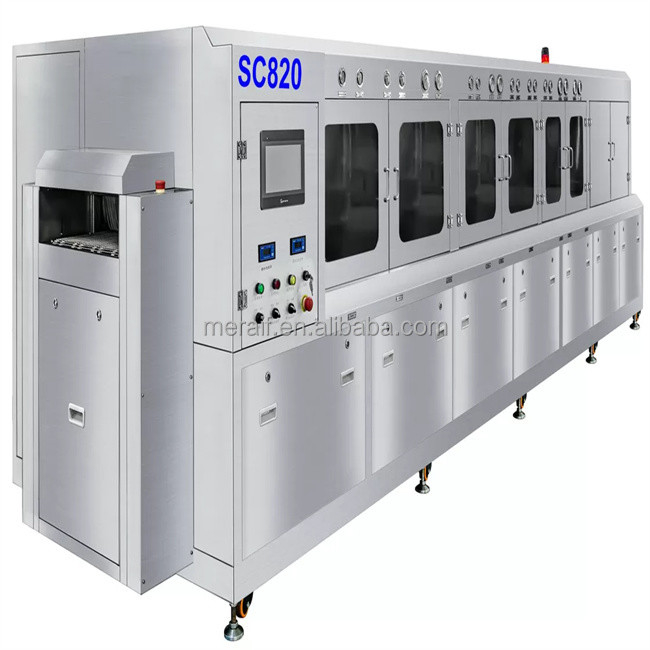

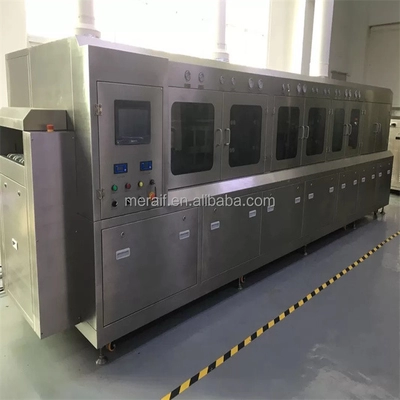

    flux chemical wash machine picture show:
    600mm width net  Sus304 Semiconductor packaging flux chemical wash machine for IGBT,IPM and LEADFRAME600mm width net  Sus304 Semiconductor packaging flux chemical wash machine for IGBT,IPM and LEADFRAME600mm width net  Sus304 Semiconductor packaging flux chemical wash machine for IGBT,IPM and LEADFRAME600mm width net  Sus304 Semiconductor packaging flux chemical wash machine for IGBT,IPM and LEADFRAME600mm width net  Sus304 Semiconductor packaging flux chemical wash machine for IGBT,IPM and LEADFRAME600mm width net  Sus304 Semiconductor packaging flux chemical wash machine for IGBT,IPM and LEADFRAME600mm width net  Sus304 Semiconductor packaging flux chemical wash machine for IGBT,IPM and LEADFRAME600mm width net  Sus304 Semiconductor packaging flux chemical wash machine for IGBT,IPM and LEADFRAME600mm width net  Sus304 Semiconductor packaging flux chemical wash machine for IGBT,IPM and LEADFRAME600mm width net  Sus304 Semiconductor packaging flux chemical wash machine for IGBT,IPM and LEADFRAME600mm width net  Sus304 Semiconductor packaging flux chemical wash machine for IGBT,IPM and LEADFRAME
