SMT Spare Parts Hanwha side tray feeder SMT Tray Feeder STF-100S for SMT Pick and Place Machine 471 482 481
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Side Tray Feeder
Manufacturer: Samsung/Hanwha
Model: STF-100S
SMT Tray Feeder STF-100S Specifications:
- JEDEC tray cassettes are separated into upper & lower magazines, each have 12 pallets & can operate independently
- Tray components can be reloaded while machine is running for continual non-stop operation
- Improved accuracy with high feeder base stability
- New mounting mechanism
- Two position-control pins at the front side
- Newly designed sprocket
- Built-in cylinder
- Optimized pressure control within the cylinder
- Increased pick-up speeds with the index sensor
- Tape guide automatically compensates for changes in tape thickness
- Variable tape support (for feeders accommodating tape widths of 12mm and higher)
- Swing-type reel hanger
- Easy feeder identification by applying a different color for each clamp 8mm, large size 12-88mm
- Ergonomic handle design
- Manual index switch
- Power supply indication lamp illuminates when fixed by the clamp
- Tape guide lift prevention through the use of the control pin
Pick and place machine, chip mounter, sm411 chip mounter, chip shooter , SMT machine, SMT equipment, PCB assembly machine, SMT mounting, sm411, Samsung chip mounter, Samsung chip shooter.
Pick & Place Machine - Samsung SM411 High Speed Placer
Highly reliable SM411 is the 6th generation of Full Vision mounter from Samsung Techwin and 4th Generation Dual Gantry System developed.
Cost of ownership is extremely low due to the simple yet reliable Dual Gantry X/Y/Z structure.
Easy to use software allows users to quckly learn the machine and get the most from it. Standard component library has more than 1800 shapes and the polygonic algorithm automatically detects component outlines on difficult components.

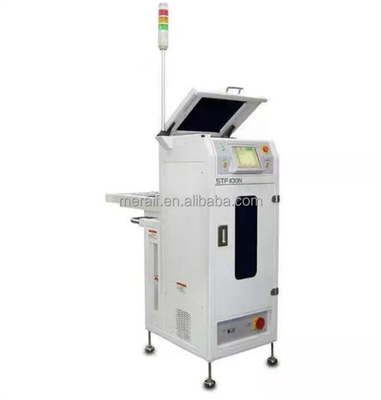

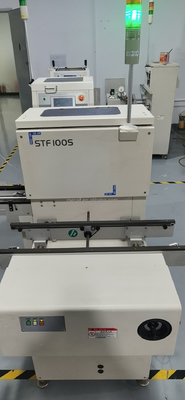

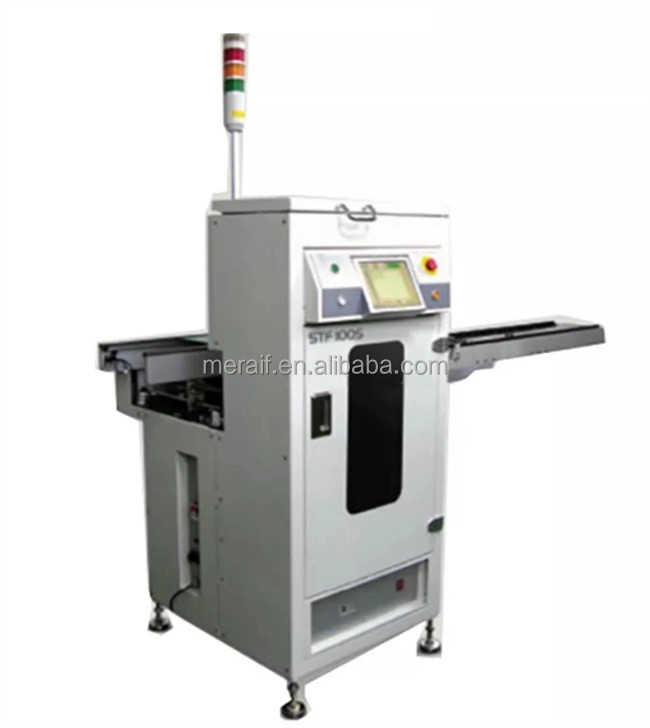

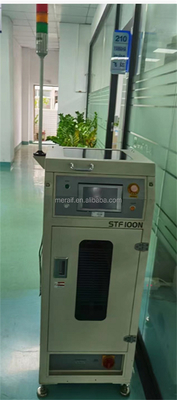

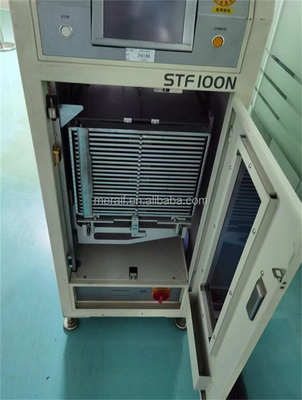

SMT Tray Feeder STF-100S picture show
