SMT Heller reflow oven heller 1809 Mark III Vacuum Reflow Oven

SMT Heller reflow oven heller 1809 Mark III Vacuum Reflow Oven

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

Heller reflow oven

NITROGEN SYSTEM WITH BALANCED FLOW TECHNOLOGY

• 9 Top And Bottom Heated Zones - highest zone count per linear foot in the industry!
• 100" Heated Length - for super throughput!
• 2 Internal Cooling Zones - gives lowest exit temperature!
• 180" Total Length - optimizes floorspace utilization!
• NEW Module Design with 10" modules gives the flexibility to subdivide the profile into smaller segments and allows for more refined "profile sculpting". The only way to satisfy demanding Lead Free Applications!
• Reflow zones configured for Lead Free Soldering as well as Eutectic requirements.
• Nitrogen Inert Atmosphere To 10 PPM with 50% reduction in N2 consumption !
• AWARD WINNING Flux Separation System
  • Fitlerless Flux Separation System
  • Water Cooling Option To Increase Cooling Rate
  • "Easy Clean" Mode That Only Takes 30 Minutes
• Oxygen Monitoring With Closed Loop Control for tightest process control!
• Oven Cpk Reporting Software - Powered by ECD, this SPC package gives real time Cpk info on your process - A STANDARD FEATURE at No additional charge

  Condition	Used
  Type	Reflow oven
  Warranty of core components	3 months
  Core Components	Motor
  Brand Name	Heller
  Usage	reflow oven
  Voltage	380V
  Dimensions	4000*710*710mm
  Rated Duty Cycle	0~1500mm/min
  Rated Capacity	50/60HZ
  Current	AC 380V
  Warranty	1 Year
  Key Selling Points	High-accuracy
  After-sales Service Provided	Engineers available to service machinery overseas
  Name	SMT Heller 1809 MKIII reflow oven
  Model	reflow oven
  Quality	100% Tested
  brand	Heller
  package	carton box with foam protect
  delivery	ups,dhl,fedex,as required
  Weight	550KG

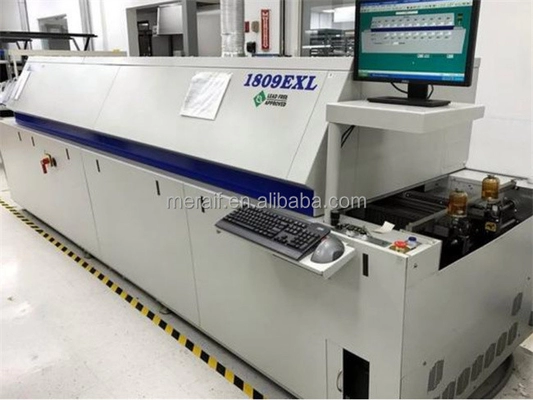

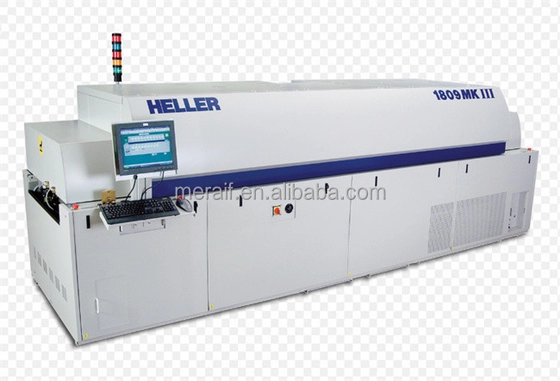

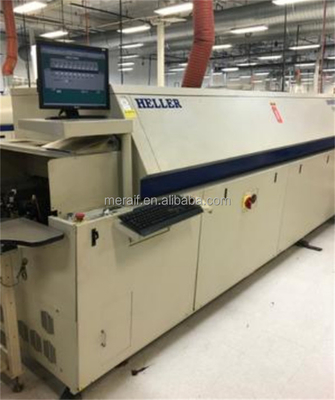

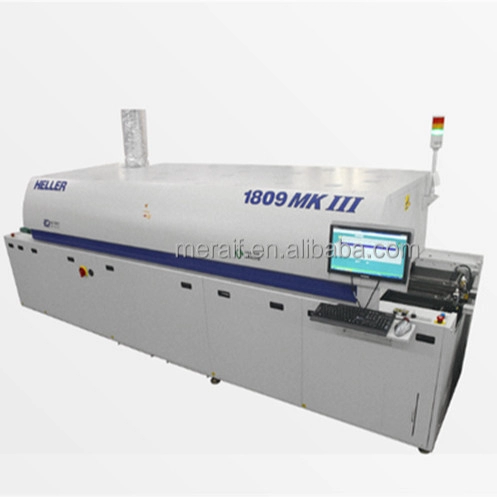

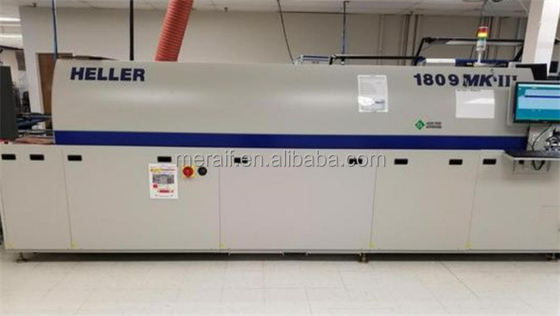

heller 1809 Mark III picture show
