DEK Stencil Printer Horizon 03iX SMT PCBA printer machine for smt machine line
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
DEK Stencil Printer:
DEK Horizon 03iX
DEK is fully automatic SMT printer.
High-speed moving camera.
Advanced upper/lower vision system.
| Device alignment accuracy | > 2cpk@ +/ -12.5 microns, 6 sigma |
| Process alignment accuracy | > 2cpk@ +/ -25 microns, 6 sigma |
| Core printing cycle time | 12 seconds (up to 11 seconds with HTC) |
| Scraper pressure mechanical system | Software control, motor drive |
| ISCANTM equipment control | Operation control using CAN BUS network |

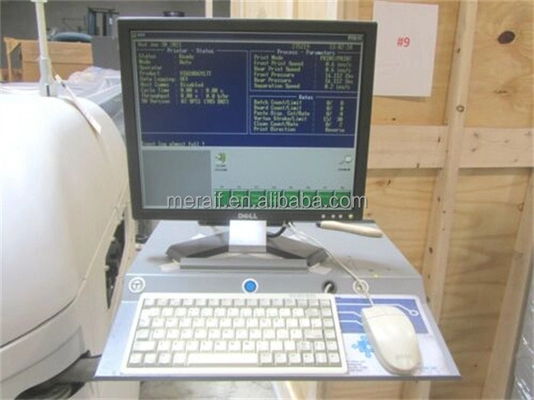

| interface | Color tablet touch screen, keyboard and trackball, DEK InstinctivTM V9 user interface |
| Screen orientation | Manually load using the mesh frame depth regulator |
| Maximum substrate handling size | 510 mm (X) X 508.5 mm (Y) |
| Minimum substrate handling size | 50 mm (X) X 40.5 mm (Y) |
| The thickness of the substrate | From 0.2 mm to 6 mm |
| Base board weight | 1 kg |
| Rail type | Use a 3 mm round belt integral transmission system |
| The visual system | Cognex |
| Camera lighting | Software controlled programmable LED lighting |
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup

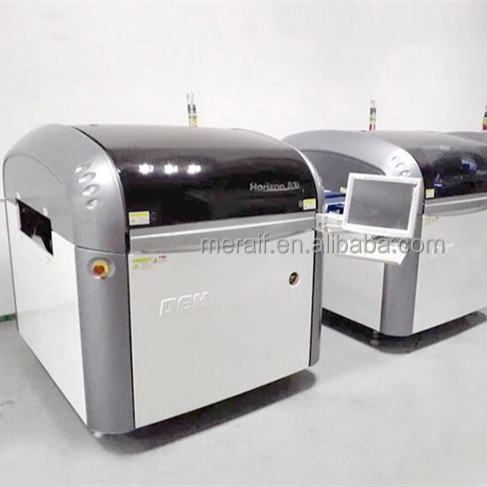

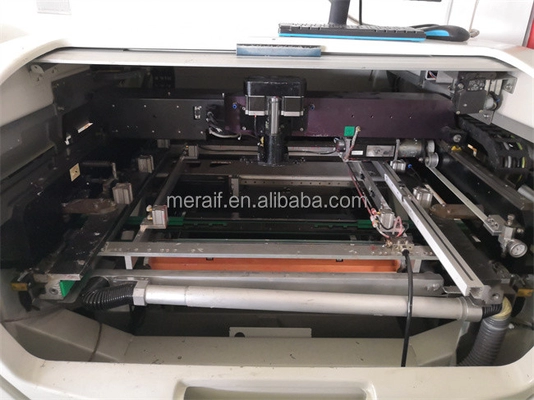

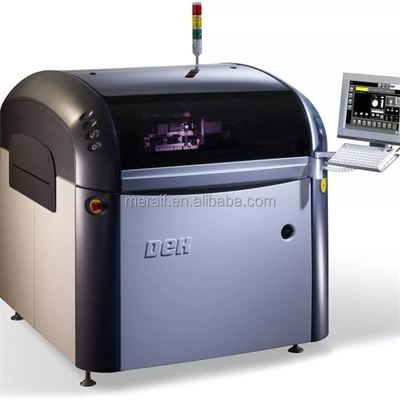

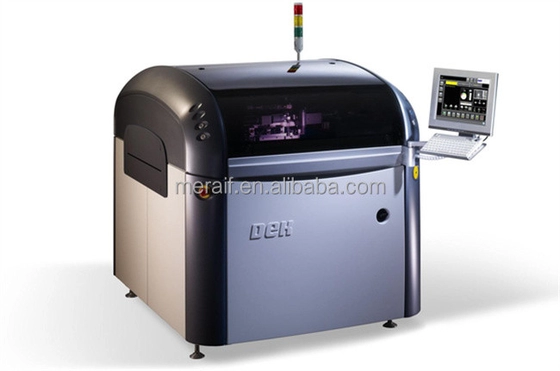

DEK Stencil Printer picture show
